Part number
XB5AK125M5
Model no
XB5
$21.13 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5

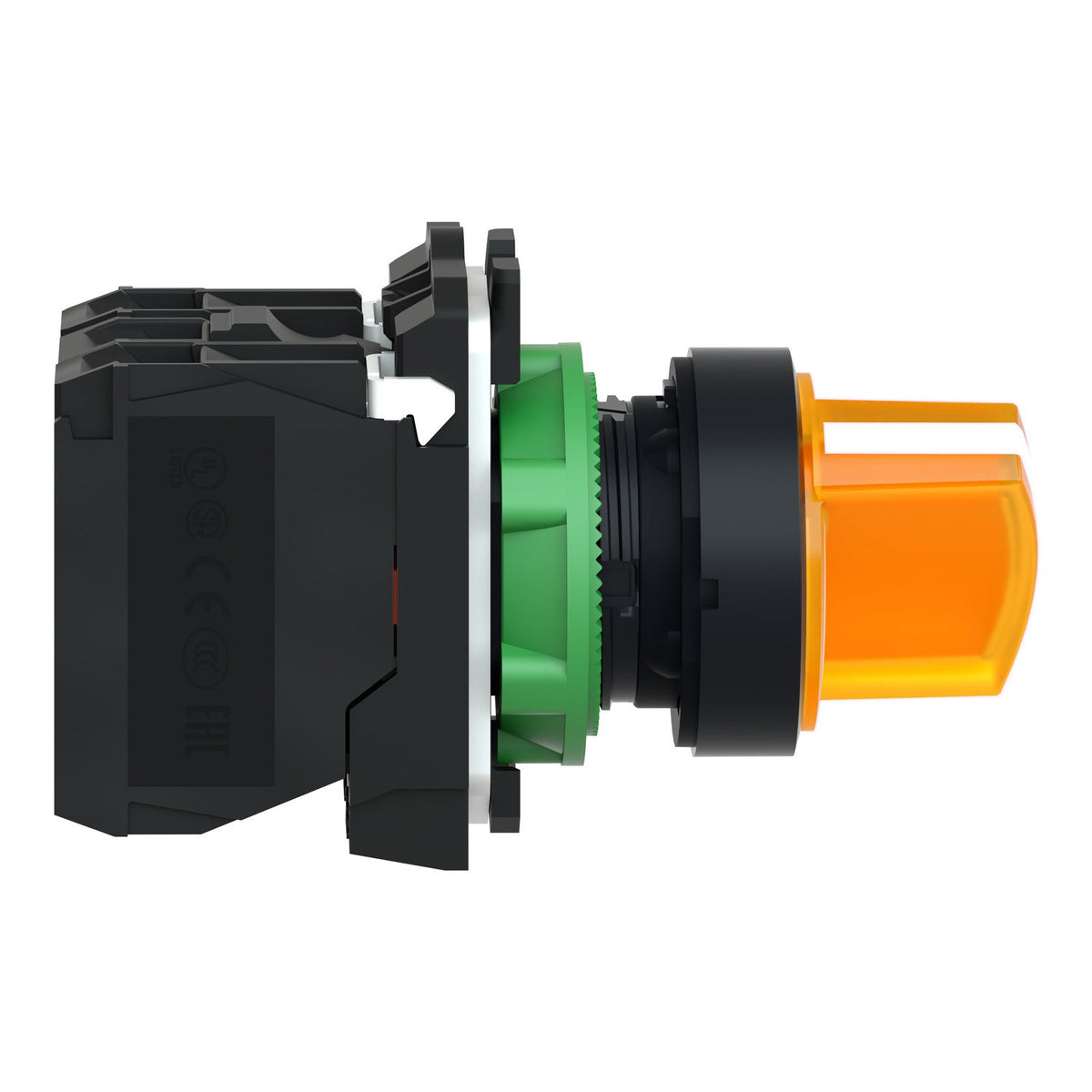

Schneider Electric XB5AK125M5 Harmony XB5 Illuminated Orange 2-Position 22 mm 1NO+1NC 230 V AC Selector Switch

Harmony XB5 illuminated selector switch, orange handle, 2-position, 1NO+1NC, 230 V AC.

Rated operational voltage
230 V AC
Description

About the XB5

The Schneider Electric XB5AK125M5 is a Harmony XB5 illuminated selector switch with an orange standard handle, a maintained (stay-put) 2-position 90° action, and a 1NO+1NC contact block. The integral universal LED runs from a 230-240 V AC supply (195-264 V AC limits), drawing 14 mA.

Certifications & Standards

  • BV
  • UL
  • CSA
  • DNV
  • Lloyd's Register
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

This 230 V AC version lets the pilot LED run directly off the panel's line-voltage control circuit, avoiding a separate 24 V transformer where 230 V AC indication is already distributed; choose the XB5AK125B5 variant on a 24 V control bus instead. Orange falls outside the reserved red/green/yellow colour set, so it usually marks an application-specific state that needs to stay visually distinct from the standard stop/start/caution handles on the same panel. The 1NO+1NC contact block gives a simultaneous make and break signal from one actuation.

Specification

Full specification

88 values · Last verified 30 Oct 2026

Main 16

Range of product Harmony XB5
Product or component type Illuminated selector switch
Device short name XB5
Bezel material Dark grey plastic
Head type Standard
Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator stay put
Operator profile Orange standard handle
Operator position information 2 positions 90°
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Bulb base Integral LED
[Us] rated supply voltage 230...240 V AC at 50/60 Hz

Complementary 27

Height 42 mm
Width 30 mm
Depth 70 mm
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Net weight 0.516 kg
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Contacts usage Standard contacts
Positive opening With conforming to IEC 60947-5-1 appendix K
Operating torque 0.14 N.m NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Signalling type Steady
Light source Universal LED
Supply voltage limits 195…264 V AC
Current consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV conforming to IEC 61000-4-5
Device presentation Complete product

Environment 15

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Electrical shock protection class Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK04 conforming to IEC 50102
Standards IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, UL 508, JIS C8201-1
Product certifications BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electromagnetic emission Class B conforming to IEC 55011
Show all 88 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XB5AK125M5
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.6 cm
Package 1 Width 5.2 cm
Package 1 Length 3.3 cm
Package 1 Weight 60 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 8.6 cm
Package 2 Width 26.5 cm
Package 2 Length 3.3 cm
Package 2 Weight 310 g
Unit Type of Package 3 S03
Number of Units in Package 3 150
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.481 kg
Shipping weight 0.516 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB5AK125M5

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-5-4
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • IEC 60947-1
  • UL 508
  • JIS C8201-1
Quick answers

Questions about the XB5

Which supply voltage is XB5 rated for?

The rated operational voltage of XB5 is 230 V AC.

What is the HS code of XB5 for customs?

The tariff (HS) code on file for XB5 is 853650.

Where does XB5 ship from, and how fast?

XB5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
