Schneider Electric XB5AK124B5 Harmony XB5 Illuminated Red 2-Position 22 mm 1NO+1NC 24 V AC/DC Selector Switch

% $-18.78
Schneider Electric XB5AK124B5 Harmony XB5 illuminated selector switch red 2-position 24 V AC/DC
Schneider Electric XB5AK124B5 Harmony XB5 illuminated selector switch red 2-position 24 V AC/DC

Schneider Electric XB5AK124B5 Harmony XB5 Illuminated Red 2-Position 22 mm 1NO+1NC 24 V AC/DC Selector Switch

Brand: Schneider Electric
Reference No: XB5AK124B5
Catalog No: XB5AK124B5
Series: Harmony XB5
Tariff Code (HS): 853650
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.78

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

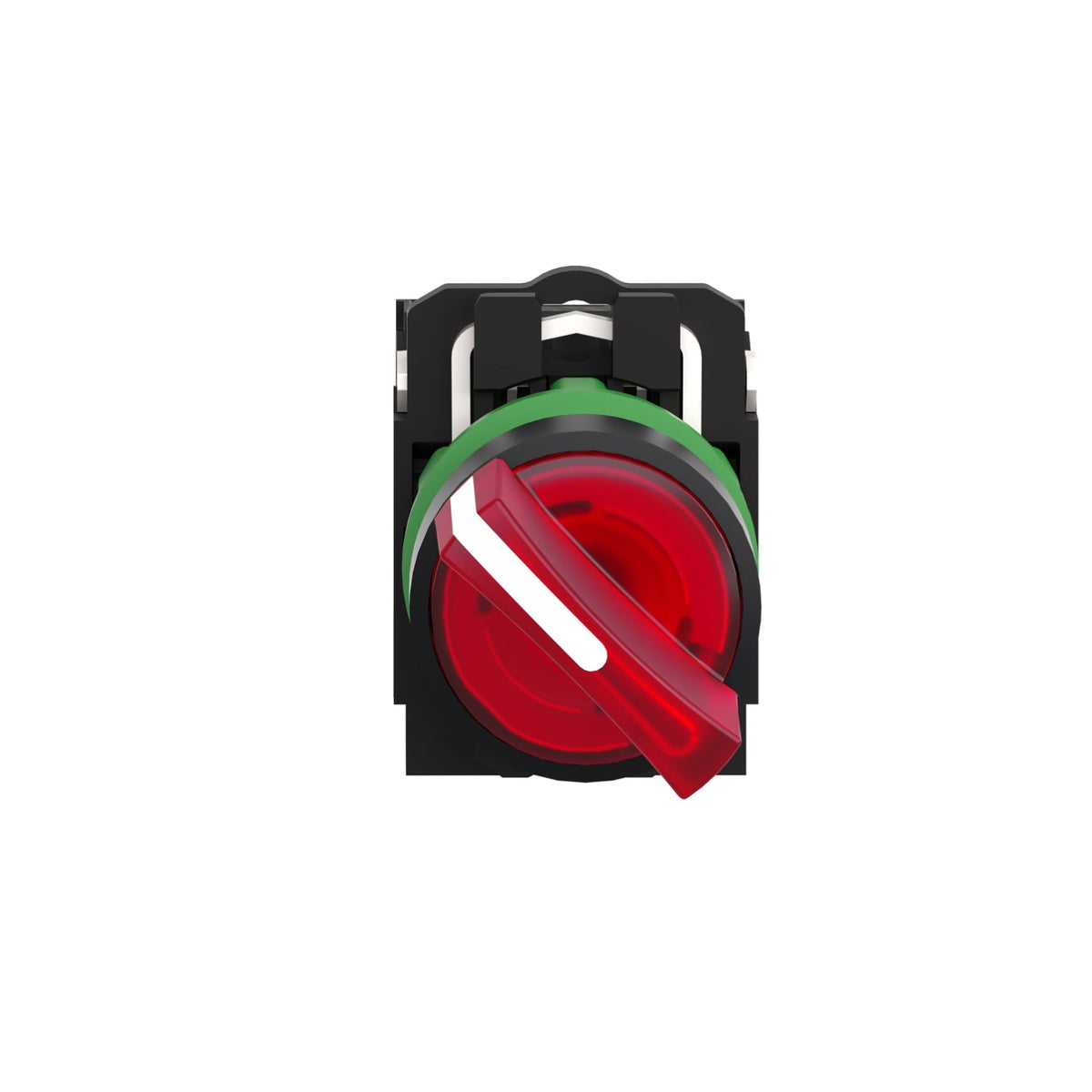

The Schneider Electric XB5AK124B5 is a Harmony XB5 illuminated selector switch with a red standard handle, a maintained (stay-put) 2-position 90° action, and a 1NO+1NC contact block. The integral universal LED runs from a 24 V AC/DC supply (19.2-30 V DC or 21.6-26.4 V AC), drawing 18 mA.

Technical Specifications

Reference XB5AK124B5
Brand Schneider Electric
Range Harmony XB5
Device Type Illuminated selector switch
Bezel Material Dark grey plastic
Mounting Diameter 22.5 mm
Operator Type Stay put (maintained), red standard handle
Operator Positions 2 positions, 90°
Light Source Universal LED, integral
Rated Supply Voltage [Us] 24 V AC/DC, 50/60 Hz
Supply Voltage Limits 19.2-30 V DC / 21.6-26.4 V AC
Current Consumption 18 mA
Contacts 1NO + 1NC, slow-break
Terminals Screw clamp, 0.22-1.5 mm²
Conventional Free-Air Thermal Current [Ith] 10 A
Rated Operational Current [Ie] 3 A at 240 V AC-15
Rated Insulation Voltage [Ui] 600 V
Rated Impulse Withstand Voltage [Uimp] 6 kV
IP Degree IP66, IP67, IP69, IP69K
IK Degree IK04
Service Life 100,000 h at rated voltage, 25 °C
Ambient Temperature (Operation) -40 to 70 °C
Dimensions (H x W x D) 42 x 30 x 70 mm
Net Weight 0.516 kg

Certifications & Standards

  • BV
  • UL
  • CSA
  • DNV
  • Lloyd's Register
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

Red follows IEC 60073 colour coding for an abnormal, fault, or caution state, making it the usual choice for an illuminated mode selector that must stand out, for example a bypass or override position on an automated line. The integral LED adds a lit confirmation of which position is active, which a plain red handle alone would not give in a dim control room. The 24 V AC/DC rated supply suits a 24 V control bus; choose the XB5AK124M5 variant for a 230 V AC lighting circuit instead.

Technical Details

Short Description
Harmony XB5 illuminated selector switch, red handle, 2-position, 1NO+1NC, 24 V AC/DC.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB5AK124B5
Delivery Date (Days)
30 days
Model Number
XB5AK
Tariff Code
853650
