Schneider Electric XB5AK123B5 Harmony XB5 Illuminated Green 2-Position 1NO+1NC 24 V AC/DC Selector Switch

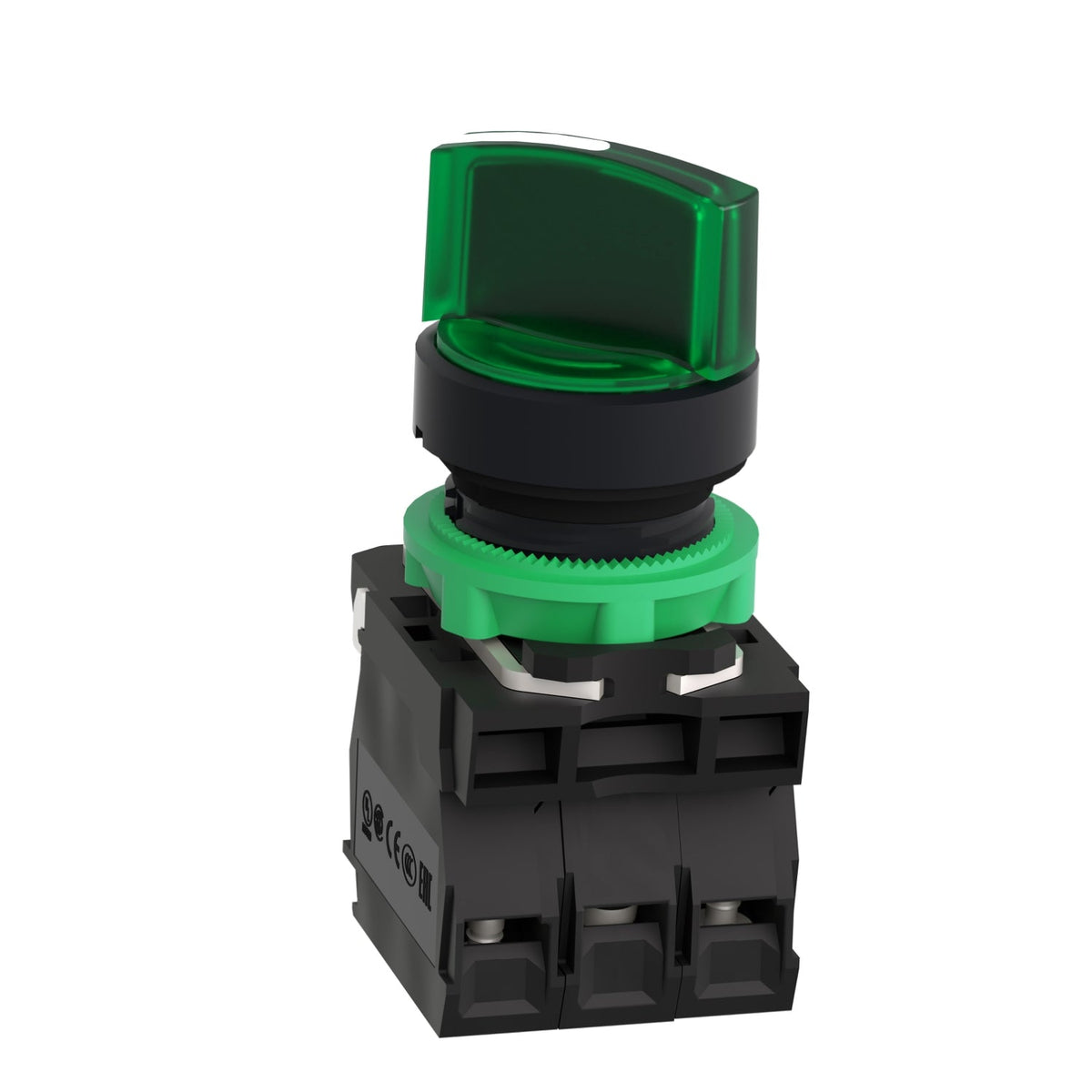

The Schneider Electric XB5AK123B5 is a Harmony XB5 illuminated selector switch with a green standard handle, a maintained (stay-put) 2-position 90° action, and a 1NO+1NC contact block. The integral universal LED runs from a 24 V AC/DC supply (19.2-30 V DC or 21.6-26.4 V AC), drawing 18 mA.

Technical Specifications

Certifications & Standards

• BV
• UL
• CSA
• DNV
• Lloyd's Register
• IEC 60947-5-1
• IEC 60947-1

Selection Notes

The integral LED gives a steady indication of which position is selected without a separate pilot light, which matters in dim control rooms where a plain handle's position can be hard to read at a glance. The 24 V AC/DC rated supply suits panels standardizing on a 24 V control bus, avoiding a separate 230 V lighting circuit; choose the XB5AK123M5 variant where the panel distributes 230 V AC instead. The 1NO+1NC contact block gives a simultaneous make and break signal from one actuation for interlocked mode confirmation.
