Schneider Electric XB5AJ53 Harmony XB5 Black 3-Position Spring Return to Center 2NO Selector Switch

% $-13.05

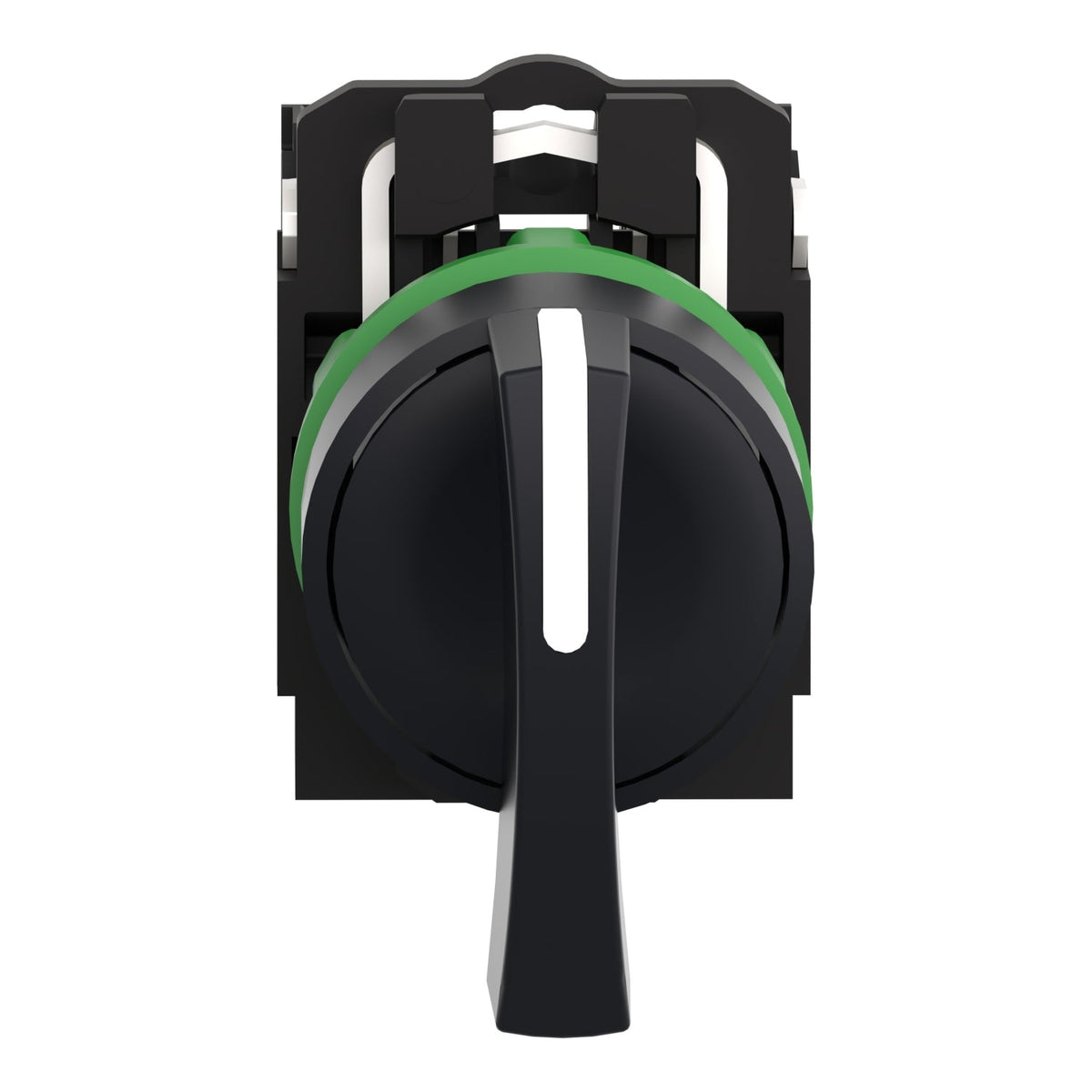

Schneider Electric XB5AJ53 Harmony XB5 selector switch black long handle spring return 22 mm
Schneider Electric XB5AJ53 Harmony XB5 selector switch black long handle spring return 22 mm

Schneider Electric XB5AJ53 Harmony XB5 Black 3-Position Spring Return to Center 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB5AJ53
Catalog No: XB5AJ53
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AJ53 is a Harmony XB5 selector switch with a black long handle, a 3-position +/-45° action that springs back to center from either side, and 2NO contacts rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

Reference XB5AJ53
Brand Schneider Electric
Range Harmony XB5
Device Type Selector switch
Bezel Material Dark grey plastic
Mounting Diameter 22.5 mm
Operator Type Spring return to center, black long handle
Operator Positions 3 positions, +/-45°
Contacts 2NO, slow-break
Terminals Screw clamp, 0.22-1.5 mm²
Conventional Free-Air Thermal Current [Ith] 10 A
Rated Operational Current [Ie] 3 A at 240 V AC-15
Rated Insulation Voltage [Ui] 600 V
Rated Impulse Withstand Voltage [Uimp] 6 kV
Positive Opening Without
IP Degree IP67, IP69, IP69K
IK Degree IK04
Electrical Shock Protection Class Class II
Ambient Temperature (Operation) -40 to 70 °C
Dimensions (H x W x D) 48 x 30 x 70 mm
Net Weight 0.053 kg

Certifications & Standards

  • BV
  • UL
  • CSA
  • DNV
  • Lloyd's Register
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

The handle snaps back to center as soon as it is released, which makes this version a momentary jog selector rather than a persistent mode switch, in contrast to the maintained XB5AJ33. The long handle gives extra leverage for repeated jog actuations compared with the standard XB5AD53 handle. Each outer position closes its own NO contact, letting the two sides drive two independent jog directions from a single component.

Technical Details

Short Description
Harmony XB5 selector switch, black long handle, 3-position, spring return to center, 22 mm, 2NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP67, IP69, IP69K
Catalog No
XB5AJ53
Delivery Date (Days)
30 days
Model Number
XB5AJ
Tariff Code
853650
