Schneider Electric XB5AJ33 Harmony XB5 Selector Switch Black Long Handle 3-Position 22 mm 2NO Selector Switch

% $-12.12

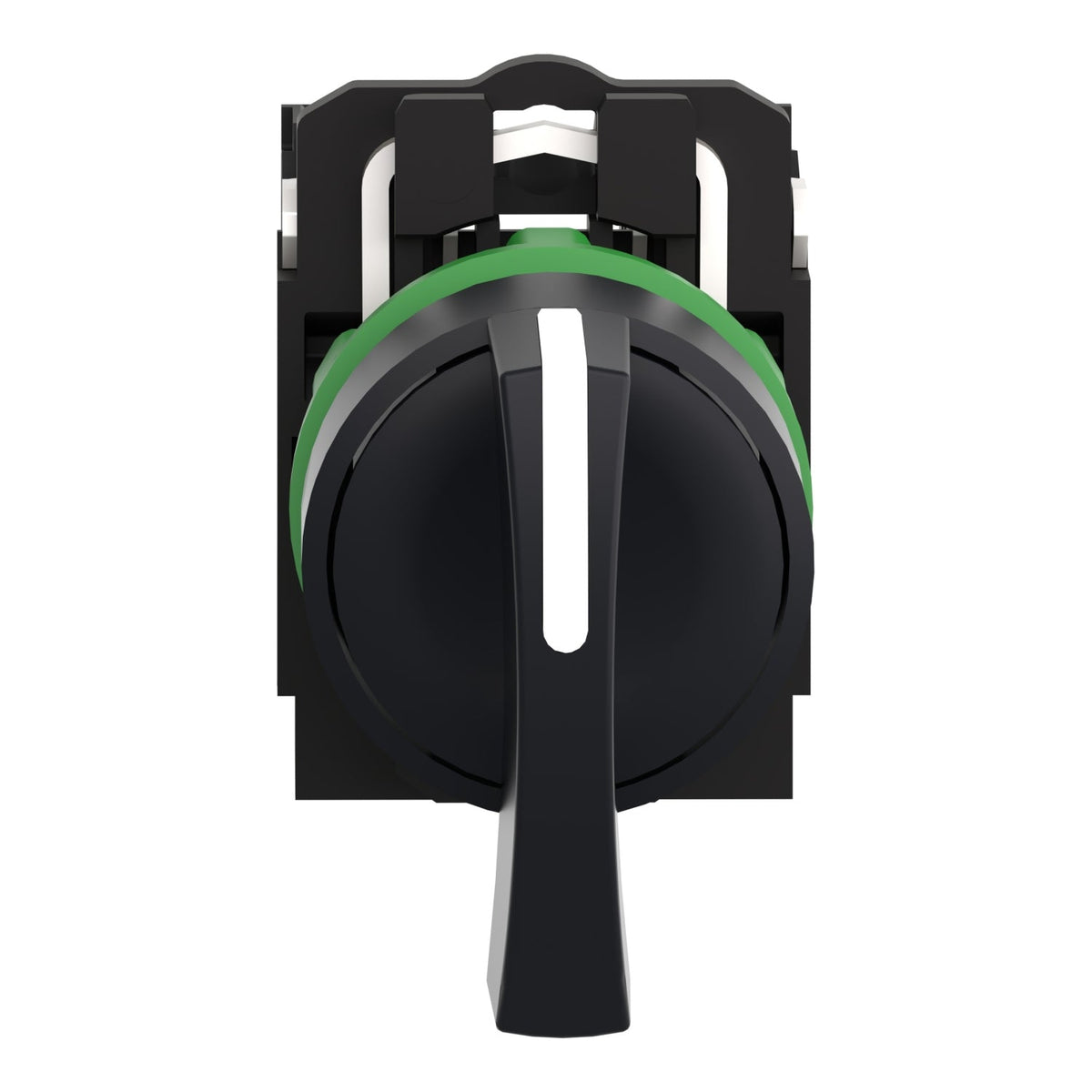

Schneider Electric XB5AJ33 Harmony XB5 selector switch black long handle 3-position 22 mm
Schneider Electric XB5AJ33 Harmony XB5 selector switch black long handle 3-position 22 mm

Schneider Electric XB5AJ33 Harmony XB5 Selector Switch Black Long Handle 3-Position 22 mm 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB5AJ33
Catalog No: XB5AJ33
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$12.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AJ33 is a Harmony XB5 selector switch with a black long handle, a maintained (stay-put) 3-position +/-45° action, and 2NO contacts rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

Reference XB5AJ33
Brand Schneider Electric
Range Harmony XB5
Device Type Selector switch
Bezel Material Dark grey plastic
Mounting Diameter 22.5 mm
Operator Type Stay put (maintained), black long handle
Operator Positions 3 positions, +/-45°
Contacts 2NO, slow-break
Terminals Screw clamp, 0.22-1.5 mm²
Conventional Free-Air Thermal Current [Ith] 10 A
Rated Operational Current [Ie] 3 A at 240 V AC-15
Rated Insulation Voltage [Ui] 600 V
Rated Impulse Withstand Voltage [Uimp] 6 kV
Positive Opening Without
IP Degree IP67, IP69, IP69K
IK Degree IK04
Electrical Shock Protection Class Class II
Ambient Temperature (Operation) -40 to 70 °C
Dimensions (H x W x D) 48 x 30 x 70 mm
Net Weight 0.053 kg

Certifications & Standards

  • BV
  • UL
  • CSA
  • DNV
  • Lloyd's Register
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

The long handle gives more leverage and visibility than the standard XB5AD33 handle for a 3-position maintained mode selector, useful where operators work at an angle to the panel or wear gloves. Each of the two active positions closes its own NO contact, letting the control system confirm which of two modes is selected rather than inferring it from a single signal. Choose the spring-return XB5AJ53 instead where the side positions must be momentary rather than maintained.

Technical Details

Short Description
Harmony XB5 selector switch, black long handle, 3-position, stay-put, 22 mm, 2NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP67, IP69, IP69K
Catalog No
XB5AJ33
Delivery Date (Days)
30 days
Model Number
XB5AJ
Tariff Code
853650
