Schneider Electric XB5AJ21 Harmony XB5 Selector Switch Black Long Handle 2-Position 22 mm 1NO Selector Switch

% $-9.64

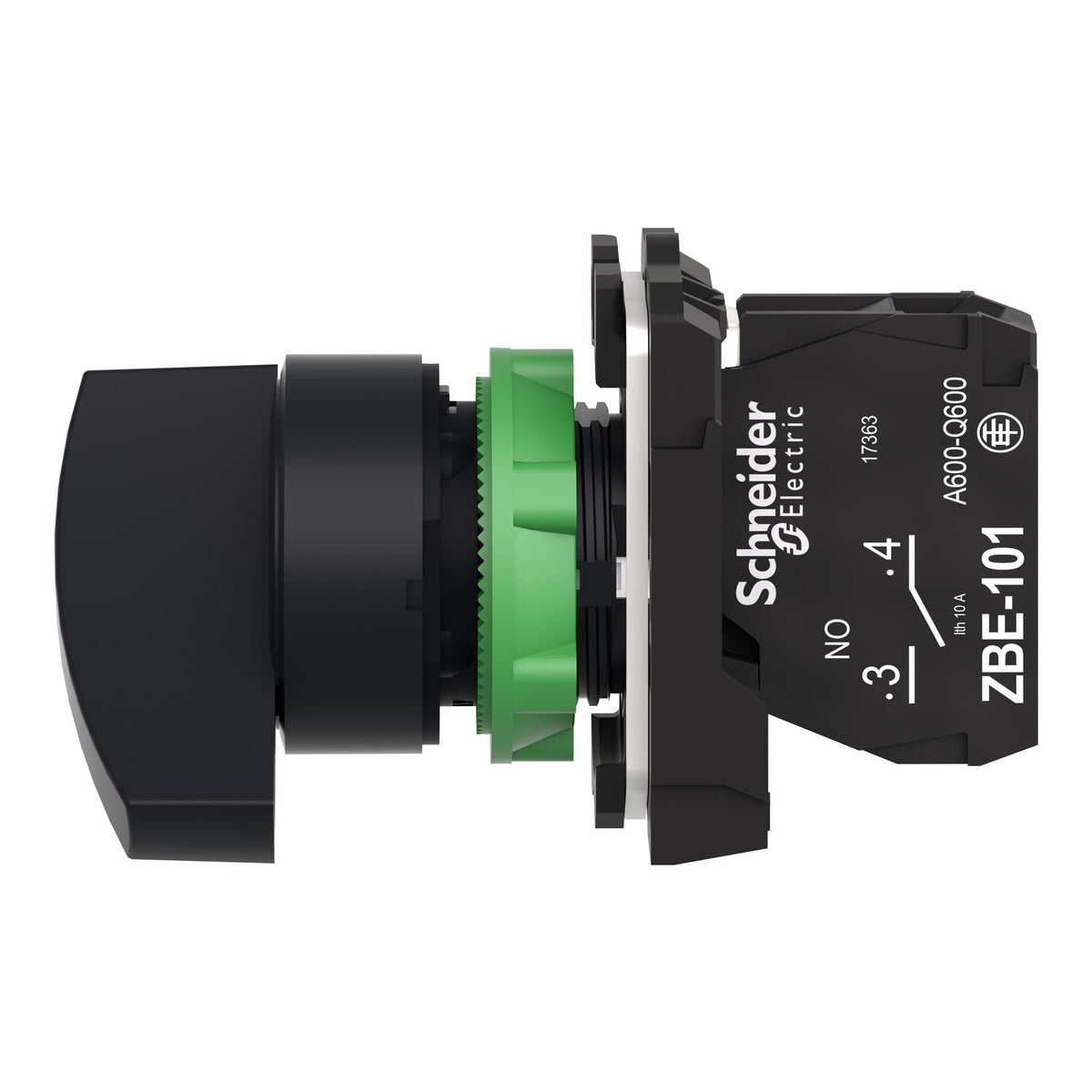

Schneider Electric XB5AJ21 Harmony XB5 selector switch black long handle 2-position 22 mm
Schneider Electric XB5AJ21 Harmony XB5 selector switch black long handle 2-position 22 mm

Schneider Electric XB5AJ21 Harmony XB5 Selector Switch Black Long Handle 2-Position 22 mm 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB5AJ21
Catalog No: XB5AJ21
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$9.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB5AJ21 is a Harmony XB5 selector switch with a black long handle, a maintained (stay-put) 2-position 90° action, and a single normally-open (1NO) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

Reference XB5AJ21
Brand Schneider Electric
Range Harmony XB5
Device Type Selector switch
Bezel Material Dark grey plastic
Mounting Diameter 22.5 mm
Operator Type Stay put (maintained), black long handle
Operator Positions 2 positions, 90°
Contacts 1NO, slow-break
Terminals Screw clamp, 0.22-1.5 mm²
Conventional Free-Air Thermal Current [Ith] 10 A
Rated Operational Current [Ie] 3 A at 240 V AC-15
Rated Insulation Voltage [Ui] 600 V
Rated Impulse Withstand Voltage [Uimp] 6 kV
Positive Opening Without
IP Degree IP67, IP69, IP69K
IK Degree IK04
Electrical Shock Protection Class Class II
Ambient Temperature (Operation) -40 to 70 °C
Dimensions (H x W x D) 48 x 30 x 70 mm
Net Weight 0.043 kg

Certifications & Standards

  • BV
  • UL
  • CSA
  • DNV
  • Lloyd's Register
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

The long handle extends further from the bezel than the standard XB5AD21 handle, giving more leverage and a larger visual target for operators wearing gloves or working at an angle to the panel. The maintained 2-position action and single NO contact otherwise match the standard handle version, so choose this variant specifically for ergonomics or visibility, not for a different electrical function. The 1NO contact closes directly into a PLC input within its 3 A/240 V AC-15 rating.

Technical Details

Short Description
Harmony XB5 selector switch, black long handle, 2-position, stay-put, 22 mm, 1NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP67, IP69, IP69K
Catalog No
XB5AJ21
Delivery Date (Days)
30 days
Model Number
XB5AJ
Tariff Code
853650
