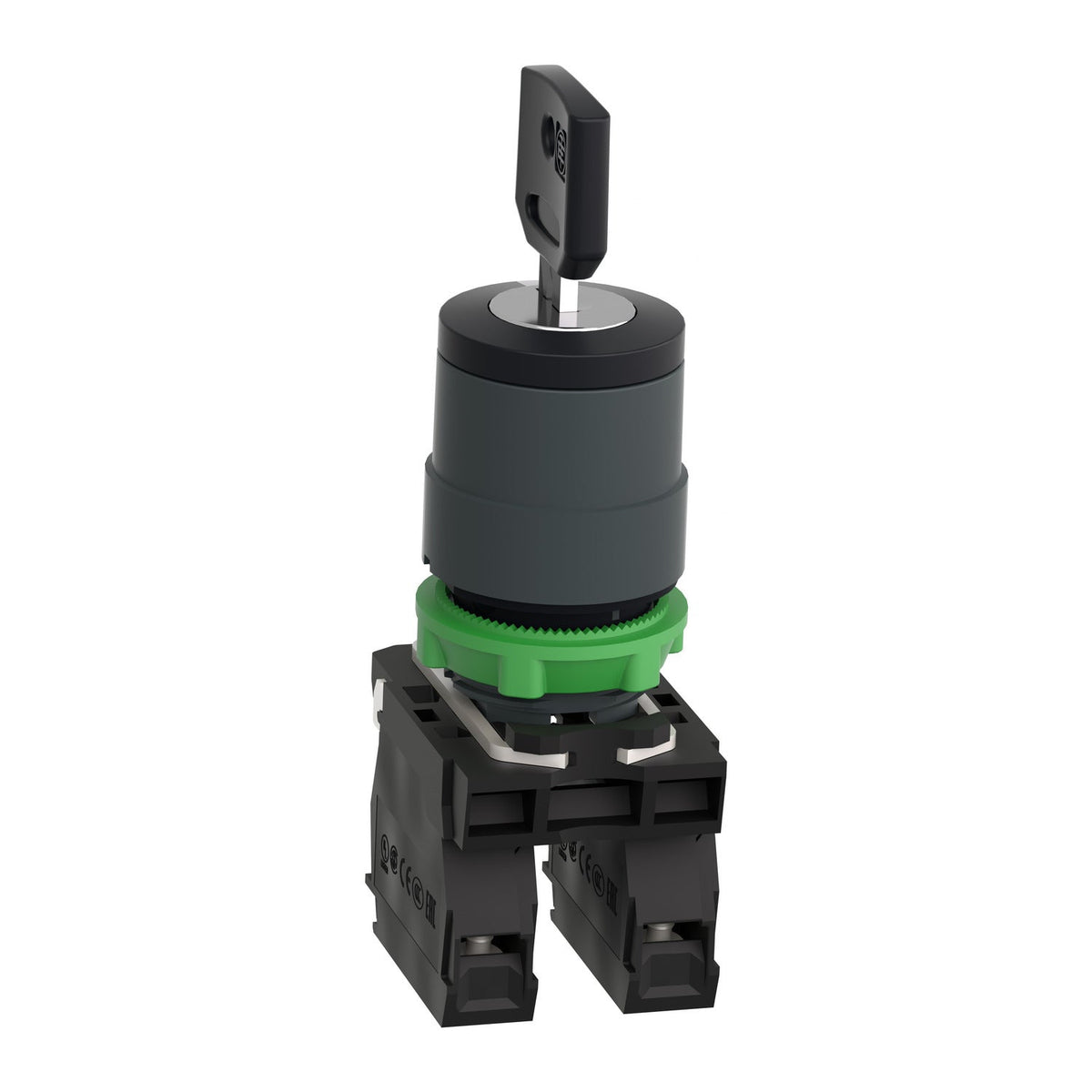

Schneider Electric XB5AG33 Harmony XB5 key selector switch key 455 3-position 22 mm 2NO

Schneider Electric XB5AG33 Harmony XB5 Key Selector Switch Black Key 455 3-Position 22 mm 2NO Selector Switch

Name: Schneider Electric XB5AG33 Harmony XB5 Key Selector Switch Black Key 455 3-Position 22 mm 2NO Selector Switch
Brand: Schneider Electric
SKU: XB5AG33
Price: 24.98 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XB5AG33

Catalog No: XB5AG33

Series: Harmony XB5

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$24.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric XB5AG33 is a Harmony XB5 key selector switch using key type 455, with a maintained (stay-put) 3-position +/-45° action and the key withdrawable only in the center position. Two NO contacts, each rated 10 A Ith, mount in a standard 22.5 mm panel cut-out.

Technical Specifications

Reference	XB5AG33
Brand	Schneider Electric
Range	Harmony XB5
Device Type	Selector switch, key type
Bezel Material	Dark grey plastic
Mounting Diameter	22.5 mm
Operator Type	Stay put (maintained), key switch
Key Type	Key 455
Operator Positions	3 positions, +/-45°
Key Withdrawal Position	Center
Contacts	2NO, slow-break
Terminals	Screw clamp, 0.22-1.5 mm²
Conventional Free-Air Thermal Current [Ith]	10 A
Rated Operational Current [Ie]	3 A at 240 V AC-15
Rated Insulation Voltage [Ui]	600 V
Rated Impulse Withstand Voltage [Uimp]	6 kV
IP Degree	IP66, IP67, IP69, IP69K
IK Degree	IK04
Electrical Shock Protection Class	Class II
Ambient Temperature (Operation)	-40 to 70 °C
Dimensions (H x W x D)	42 x 30 x 96 mm
Net Weight	0.831 kg

Certifications & Standards

BV
UL
CSA
DNV
Lloyd's Register
IEC 60947-5-1
IEC 60947-1

Selection Notes

Withdrawing the key only in the center (neutral) position forces the switch back to a defined, off-like state before an operator can remove the key, unlike the XB5AG21 where the key comes out in the active left position. The two independent NO contacts let each outer position drive a separate circuit, suiting a key-locked HAND/AUTO style selection where both active modes need their own confirmation signal. Specify key 455 duplicates to match this lock code to the rest of the panel's key switches.

Technical Details

Short Description

Harmony XB5 key selector switch, key 455, 3-position, stay-put, 22 mm, 2NO.

Mounting Type

Panel mount, 22.5 mm cut-out

Protection Type

IP66, IP67, IP69, IP69K

Catalog No

XB5AG33

Delivery Date (Days)

30 days

Model Number

XB5AG

Tariff Code

853650
