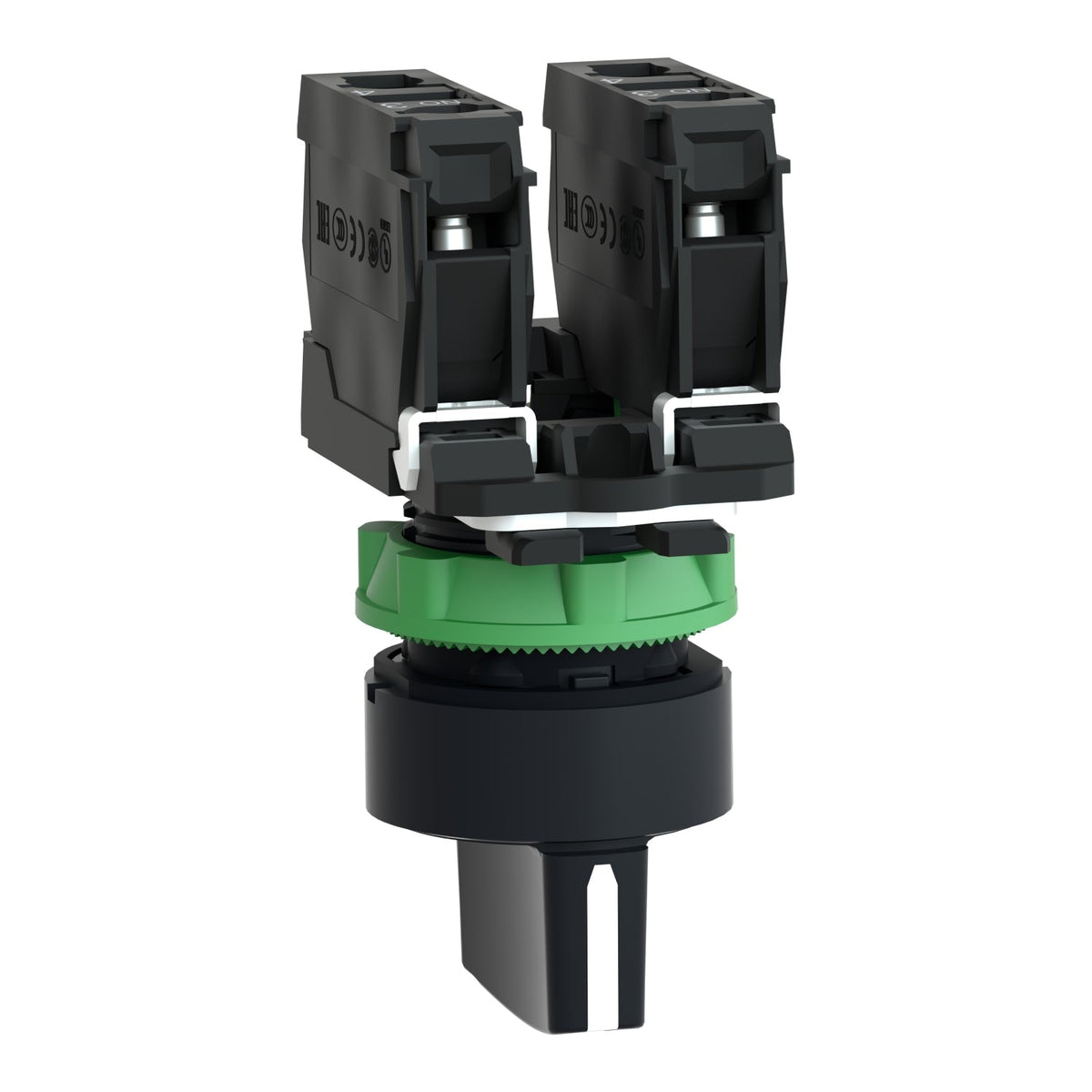

Schneider Electric XB5AD53 Harmony XB5 Black 3-Position Spring Return to Center 22 mm 2NO Selector Switch

The Schneider Electric XB5AD53 is a Harmony XB5 selector switch with a black standard handle, a 3-position +/-45° action that springs back to center from either side, and 2NO contacts rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

Certifications & Standards

• BV
• UL
• CSA
• DNV
• Lloyd's Register
• IEC 60947-5-1
• IEC 60947-1

Selection Notes

Unlike the maintained XB5AD33, this handle returns to the center position the moment the operator lets go, which suits a momentary jog-left/jog-right command where the neutral state must be the default whenever no one is actively holding the handle. Each side position closes its own NO contact, so the two outer positions can drive two different jog directions from one component instead of two separate push buttons. Pick this spring-return version for jogging duty and the stay-put XB5AD33/XB5AD21 versions for a mode that has to persist unattended.
