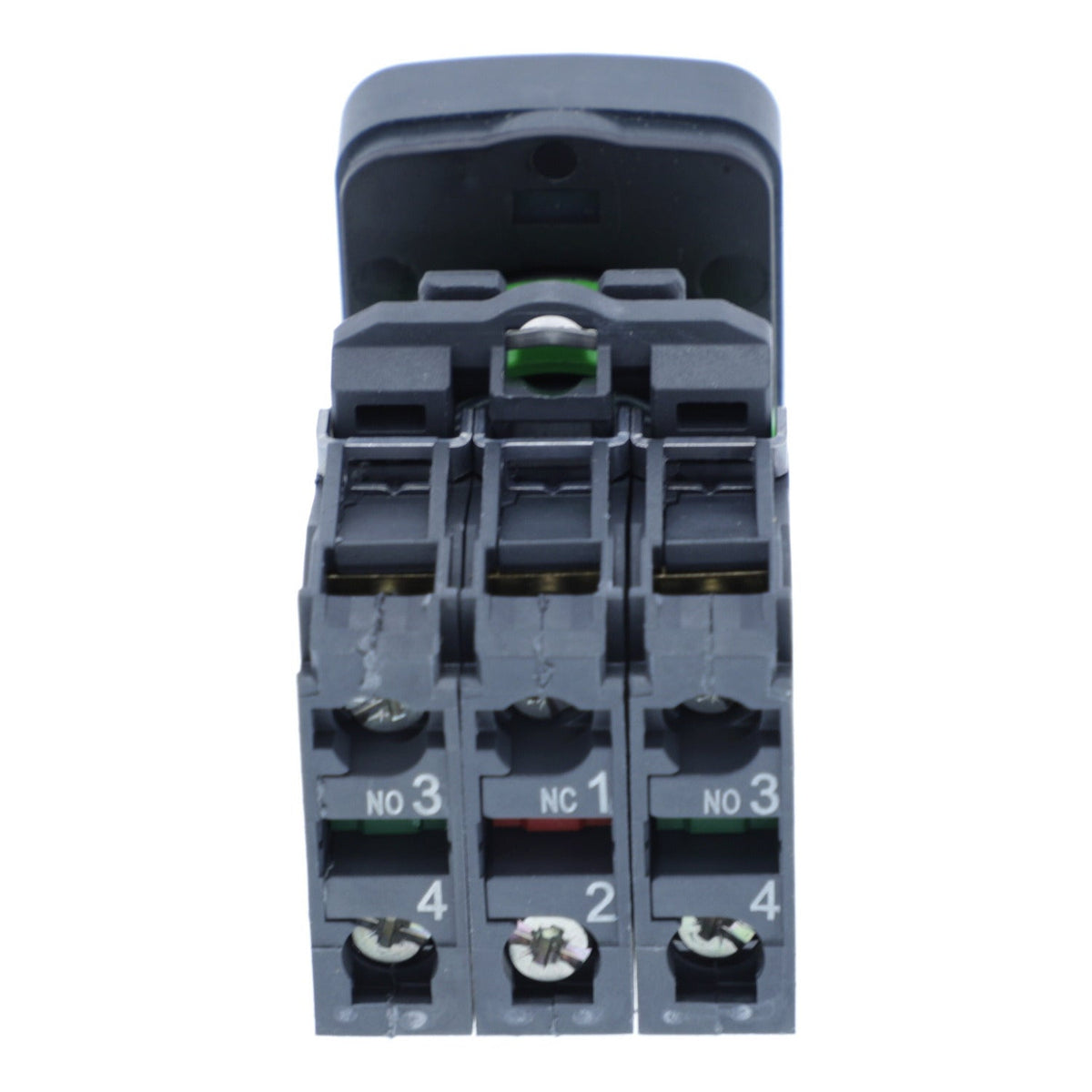

Harmony XB5Schneider Electric XB5AA731327 Harmony XB5 Triple-Headed Green I Red STOP Green II 22 mm 2NO+1NC Push Button
Harmony XB5 triple-headed push button, green I/II + red STOP, 22 mm, 2NO+1NC.
Description
About the XB5
About the XB5
The Schneider Electric XB5AA731327 is a Harmony XB5 triple-headed push button combining two green flush heads marked I and II with a central red projecting STOP head, all in a single 22.5 mm panel cut-out, giving a 2NO+1NC contact set for three independent commands. It is sealed to IP66/IP67/IP69/IP69K.
Certifications & Standards
- CSA
- Lloyd's Register
- BV
- UL Listed
- DNV
- IEC 60947-5-1
- IEC 60947-1
Selection Notes
The two green I/II heads suit a two-speed or two-stage start sequence (for example jog and run) where both commands are equally non-hazardous, which is why both carry the start-function green rather than a mixed colour scheme. The central red STOP head keeps its own normally-closed contact with positive opening per IEC 60947-5-1 Appendix K, so the stop function fails safe independently of the two start contacts. One 22.5 mm cut-out replaces three separate stations, which simplifies the panel layout on compact machine-start consoles.
Specification
Full specification
Main 15
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Triple-headed push-button |
| Device short name | XB5 |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | 2 flush - 1 central projecting STOP push-buttons |
| Operators description | Green ''I'' - green ''II'' - red ''STOP'' |
| Contacts type and composition | 2 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1, Spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Device presentation | Complete product |
Complementary 22
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 2.0 in (50 mm) |
| CAD overall depth | 2.3 in (59 mm) |
| Net Weight | 0.139 lb(US) (0.063 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Colour of marking | White marking when green, red or black caps, Black marking when white caps |
| Operator profile | Red projecting, STOP white), Green flush, II white) |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N NO changing electrical state |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
Environment 10
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP67 IEC 60529, IP69 IEC 60529, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 61 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AA731327 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119043526 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.063 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
