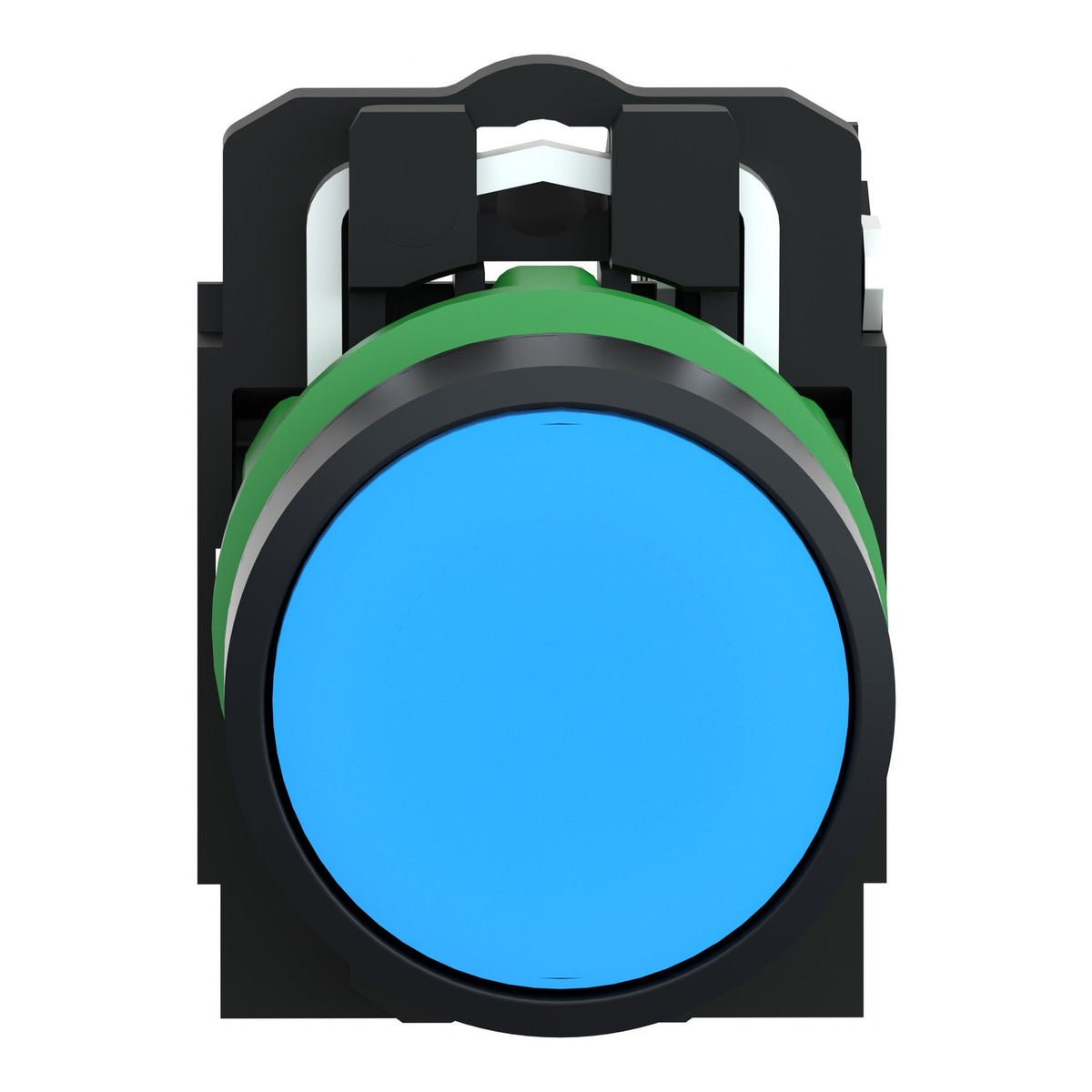

Harmony XB5Schneider Electric XB5AA61 Harmony XB5 Push Button Plastic Blue Flush 22 mm Unmarked 1NO Push Button
Harmony XB5 plastic push button, blue flush, 22 mm, spring return, unmarked, 1NO.
Description
About the XB5
About the XB5
The Schneider Electric XB5AA61 is a Harmony XB5 plastic push button with a blue flush head and a single normally-open (1NO) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out, uses screw-clamp terminals for 0.22-2.5 mm² conductors, and is sealed to IP66/IP67/IP69/IP69K.
Certifications & Standards
- DNV
- CSA
- UL Listed
- Lloyd's Register
- BV
- IEC 60947-5-1
- IEC 60947-1
Selection Notes
IEC 60073 leaves blue for application-specific functions outside the reserved red/green/yellow set, which makes this head a common choice for a reset, bypass, or information-request command that would be ambiguous in any of the three primary colours. Its plastic bezel resists chemical agents and provides double electrical insulation, favouring it over the metal XB4 range in washdown or corrosive areas. The 1NO contact switches directly into a PLC input or control-relay coil within its 3 A/240 V AC-15 rating.
Specification
Full specification
Main 14
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Push-button |
| Device short name | XB5 |
| Bezel material | Plastic, Dark grey plastic |
| Head type | Standard |
| Fixing collar material | Plastic |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Blue flush, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
Complementary 25
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.05 in (52 mm) |
| Terminals description ISO n°1 | (13-14)NO |
| Net Weight | 0.082 lb(US) (0.037 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.8 N NO changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product |
| Customizable | No |
| GCR BRIDGE | XB5AACUST01 |
| Compatibility code | XB5 |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-4, UL 508, JIS C8201-1 |
| Product Certifications | DNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 64 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AA61 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110134407 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.037 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
