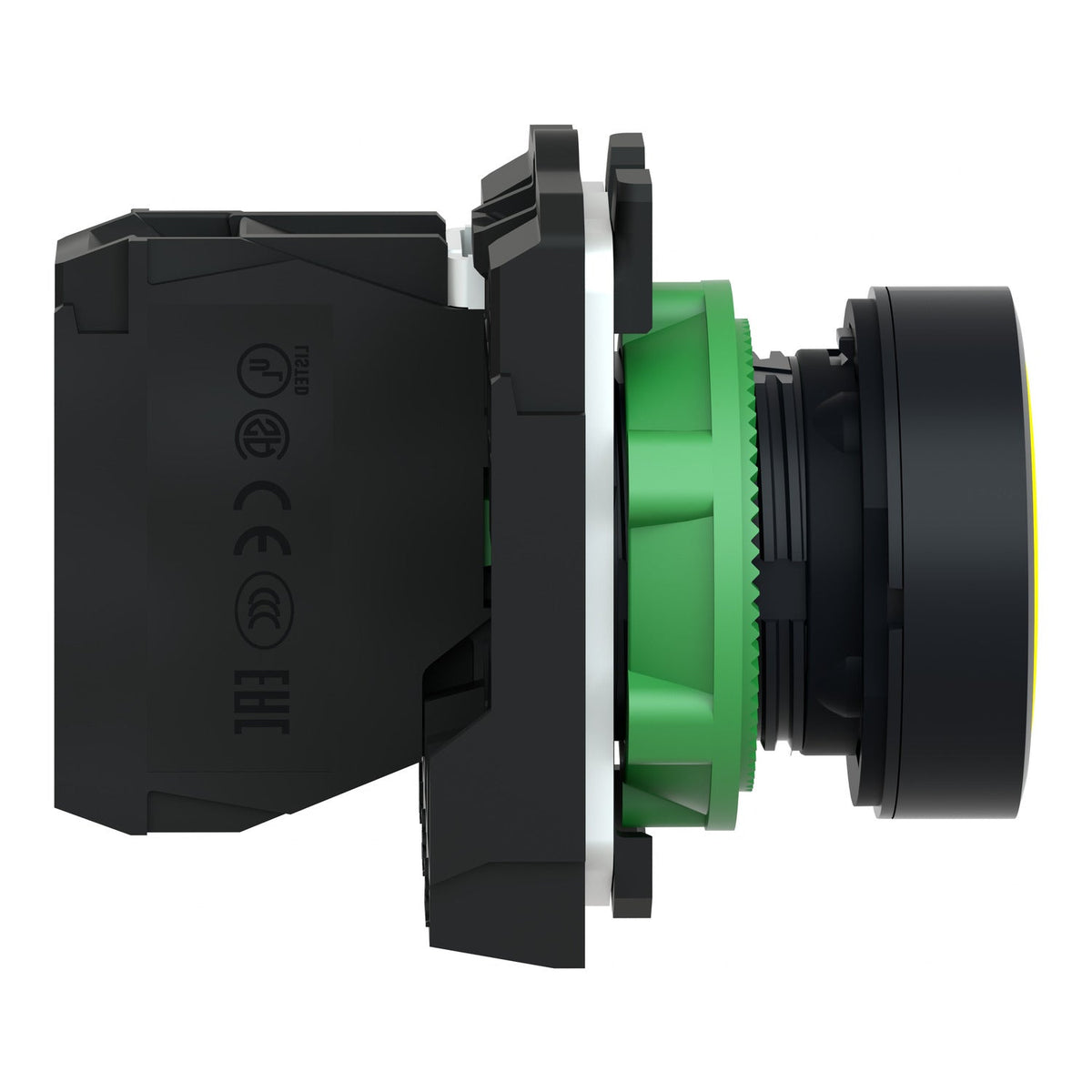

Schneider Electric XB5AA51 Harmony XB5 Push Button Plastic Yellow Flush 22 mm Unmarked 1NO Push Button

Harmony XB5 plastic push button, yellow flush, 22 mm, spring return, unmarked, 1NO.

Range of Product
Harmony XB5
Product or Component Type
Push-button
Device short name
XB5
Bezel material
Plastic, Dark grey plastic
Head type
Standard
Fixing collar material
Plastic
EAN
3389110134384
Description

About the XB5

The Schneider Electric XB5AA51 is a Harmony XB5 plastic push button with a yellow flush head and a single normally-open (1NO) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out, uses screw-clamp terminals for 0.22-2.5 mm² conductors, and is sealed to IP66/IP67/IP69/IP69K.

Certifications & Standards

  • DNV
  • CSA
  • UL Listed
  • Lloyd's Register
  • BV
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

IEC 60073 assigns yellow to an abnormal-condition or caution function, for example overriding an interlock or acknowledging a warning, distinct from the reserved red/green stop/start pair. The plastic bezel resists chemical agents and gives double electrical insulation, a reason to prefer it over the metal XB4 range where the panel sees washdown or corrosive exposure. The 1NO contact switches directly into a PLC input or control-relay coil within its 3 A/240 V AC-15 rating.

Specification

Full specification

64 values · Last verified 30 Oct 2026

Main 14

Range of Product Harmony XB5
Product or Component Type Push-button
Device short name XB5
Bezel material Plastic, Dark grey plastic
Head type Standard
Fixing collar material Plastic
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator spring return
Operator profile Yellow flush, unmarked
Contacts type and composition 1 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Complementary 25

Height 1.7 in (42 mm)
Width 1.2 in (30 mm)
Depth 2.05 in (52 mm)
Terminals description ISO n°1 (13-14)NO
Net Weight 0.082 lb(US) (0.037 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 3.8 N NO changing electrical state
Mechanical durability 10000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Device presentation Complete product
Customizable No
GCR BRIDGE XB5AACUST01
Compatibility code XB5

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-1, UL 508, JIS C8201-1
Product Certifications DNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 64 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
