Part number
XB5AA3341
Model no
XB5
$6.45 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5

Schneider Electric XB5AA3341 Harmony XB5 Push Button Plastic White Flush 22 mm Marked Up Arrow 1NO Push Button

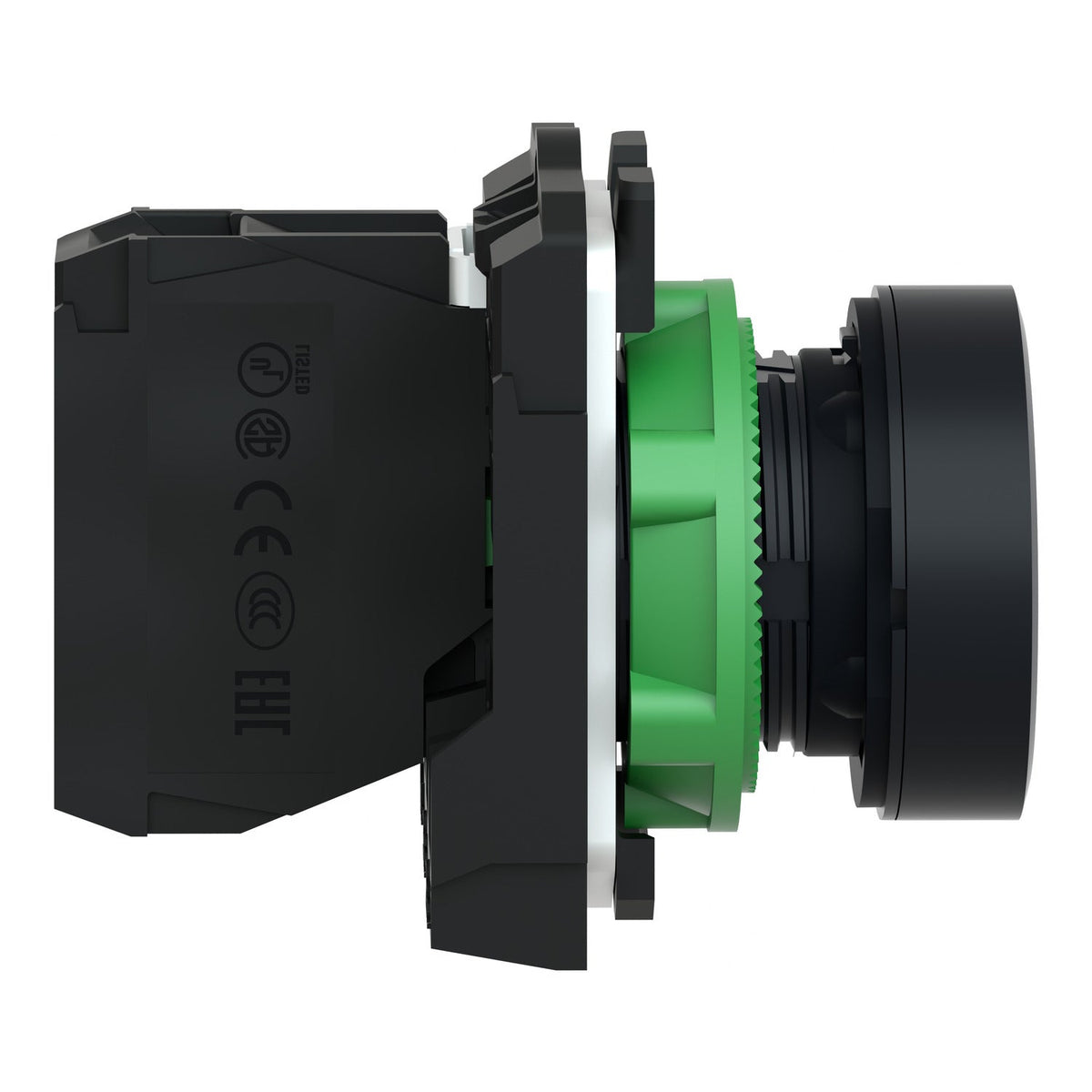

Harmony XB5 plastic push button, white flush marked up arrow, 22 mm, 1NO.

Range of product
Harmony XB5
Product or component type
Push-button
Device short name
XB5
Bezel material
Plastic, Dark grey plastic
Head type
Standard
Fixing collar material
Plastic
Description

About the XB5

The Schneider Electric XB5AA3341 is a Harmony XB5 plastic push button with a white flush head marked with a black up-arrow symbol, and a single normally-open (1NO) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out, uses screw-clamp terminals for 0.22-2.5 mm² conductors, and is sealed to IP66/IP67/IP69/IP69K.

Certifications & Standards

  • DNV
  • CSA
  • UL Listed
  • Lloyd's Register
  • BV
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

The up-arrow symbol gives an unambiguous jog-up or raise command on a hoist, elevator, or axis-positioning station, independent of the operator's language. White is a neutral colour under IEC 60073, so this head suits a general command rather than the reserved stop/start functions covered by red and green. Pair it with the matching down-arrow XB5AA3351 head on the opposite station to give a raise/lower pair wired to a single 1NO contact each.

Specification

Full specification

79 values · Last verified 30 Oct 2026

Main 14

Range of product Harmony XB5
Product or component type Push-button
Device short name XB5
Bezel material Plastic, Dark grey plastic
Head type Standard
Fixing collar material Plastic
Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator spring return
Operator profile White flush, up arrow (black)
Contacts type and composition 1 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Complementary 24

Height 42 mm
Width 30 mm
Depth 52 mm
Terminals description ISO n°1 (13-14)NO
Net weight 0.037 kg
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Contacts usage Standard contacts
Positive opening Without
Operating travel 2.6 mm (NO changing electrical state), 4.3 mm (total travel)
Operating force 3.8 N NO changing electrical state
Mechanical durability 10000000 cycles
Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C
Electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Device presentation Complete product
Customizable No
Compatibility code XB5

Environment 11

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards JIS C8201-5-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, JIS C8201-1
Product certifications DNV, CSA, UL listed, LROS (Lloyds register of shipping), BV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 79 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XB5AA3341
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.700 cm
Package 1 Width 5.500 cm
Package 1 Length 9.100 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 8.800 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 184.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 150
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.876 kg
Shipping weight 0.037 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
