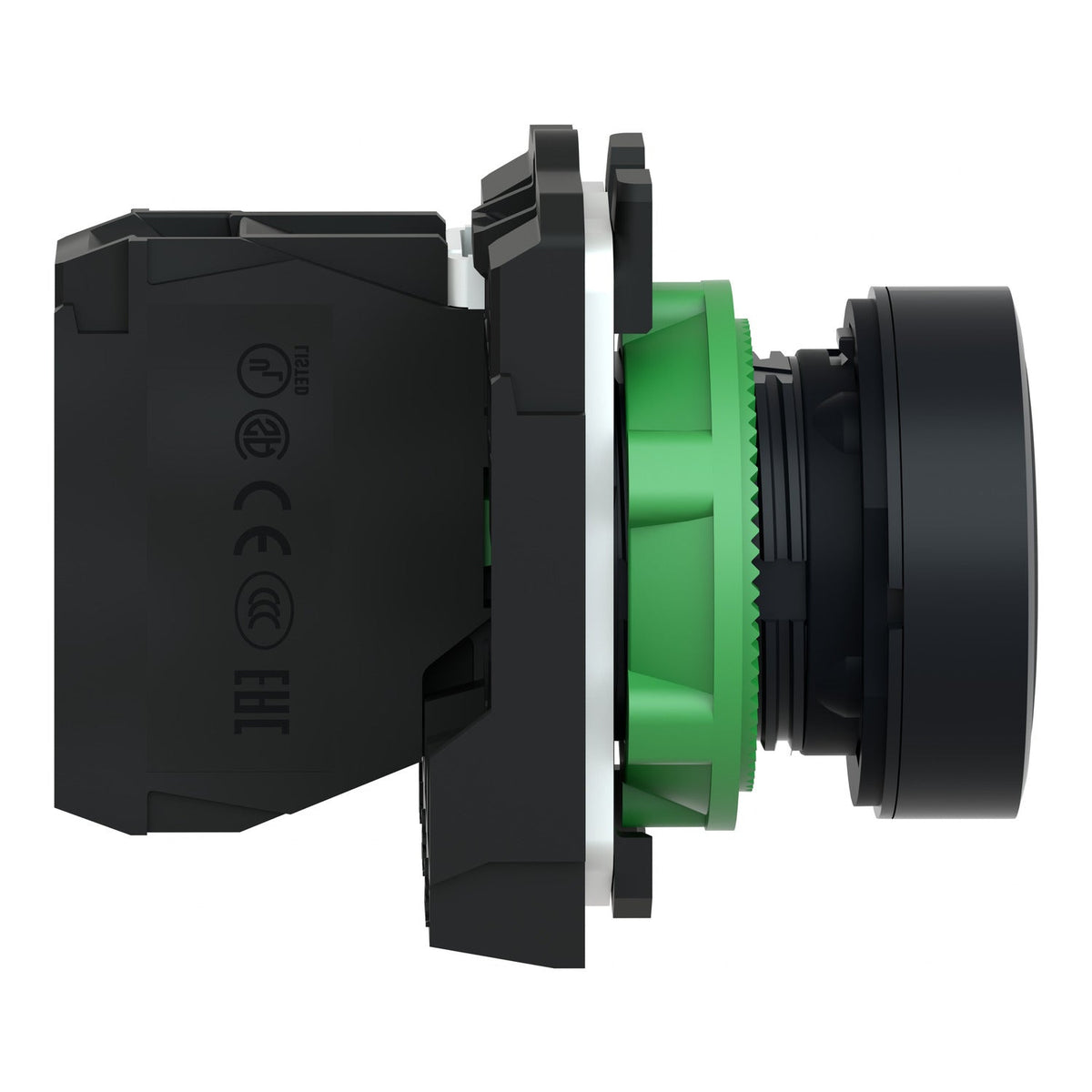

Schneider Electric XB5AA21 Harmony XB5 push button black flush 22 mm 1NO spring return

Schneider Electric XB5AA21 Harmony XB5 Push Button Plastic Black Flush 22 mm Unmarked 1NO Push Button

Name: Schneider Electric XB5AA21 Harmony XB5 Push Button Plastic Black Flush 22 mm Unmarked 1NO Push Button
Brand: Schneider Electric
SKU: XB5AA21
Price: 5.54 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XB5AA21

Catalog No: XB5AA21

Series: Harmony XB5

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$5.54

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric XB5AA21 is a Harmony XB5 plastic push button with a black flush head and a single normally-open (1NO) contact rated 10 A Ith. It mounts in a standard 22.5 mm panel cut-out, uses screw-clamp terminals for 0.22-2.5 mm² conductors, and is sealed to IP66/IP67/IP69/IP69K.

Technical Specifications

Reference	XB5AA21
Brand	Schneider Electric
Range	Harmony XB5
Device Type	Push-button
Bezel Material	Plastic
Mounting Diameter	22.5 mm
Operator Type	Spring return, black flush, unmarked
Contacts	1NO, slow-break
Terminals	Screw clamp, 1 x 0.22-2 x 2.5 mm²
Conventional Free-Air Thermal Current [Ith]	10 A
Rated Operational Current [Ie]	3 A at 240 V AC-15
Rated Insulation Voltage [Ui]	600 V
Rated Impulse Withstand Voltage [Uimp]	6 kV
Positive Opening	Without
IP Degree	IP66, IP67, IP69, IP69K
IK Degree	IK03
Overvoltage Category	Class II
Ambient Temperature (Operation)	-40 to 70 °C
Dimensions (H x W x D)	42 x 30 x 52 mm
Net Weight	0.037 kg

Certifications & Standards

DNV
CSA
UL Listed
Lloyd's Register
BV
IEC 60947-5-1
IEC 60947-1

Selection Notes

The black, unmarked flush head follows IEC 60073 colour coding for a general-purpose actuator with no mandated function, unlike the green/red colours reserved for start/stop. Its plastic bezel resists chemical agents and provides double electrical insulation, a reason to prefer it over the metal XB4 range in washdown or corrosive areas. The single 1NO contact switches directly into a PLC input or control-relay coil within its 3 A/240 V AC-15 rating without an interposing relay.

Technical Details

Short Description

Harmony XB5 plastic push button, black flush, 22 mm, spring return, unmarked, 1NO.

Mounting Type

Panel mount, 22.5 mm cut-out, flush

Protection Type

IP66, IP67, IP69, IP69K

Catalog No

XB5AA21

Delivery Date (Days)

30 days

Model Number

XB5AA

Tariff Code

853650
