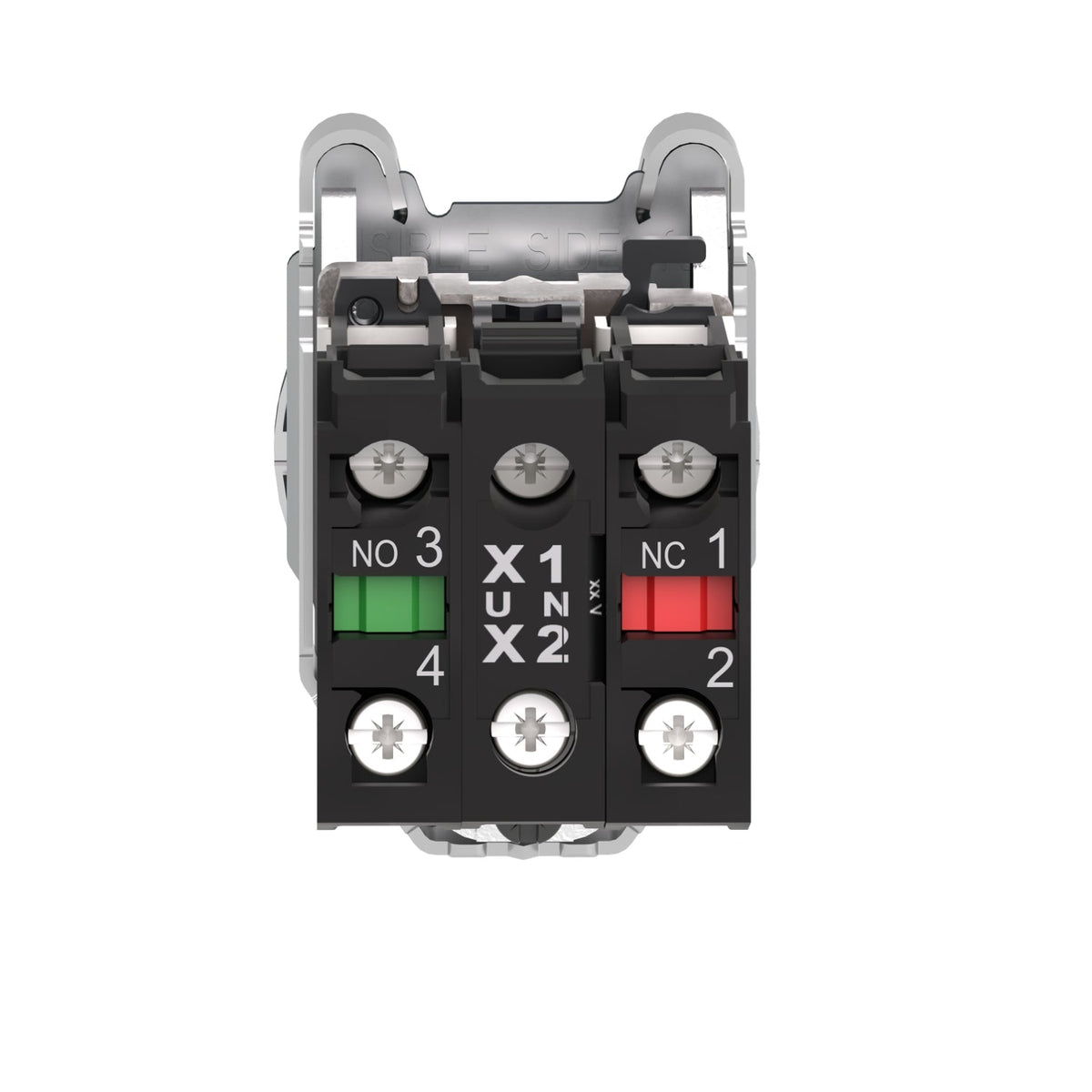

Schneider Electric XB4FW36M5 Harmony XB4 Illuminated Push Button Metal Blue 30 mm 1NO+1NC 230 V AC Push Button

% $-32.61
Schneider Electric XB4FW36M5 Harmony XB4 illuminated push button blue flush 30 mm 1NO+1NC
Schneider Electric XB4FW36M5 Harmony XB4 illuminated push button blue flush 30 mm 1NO+1NC

Schneider Electric XB4FW36M5 Harmony XB4 Illuminated Push Button Metal Blue 30 mm 1NO+1NC 230 V AC Push Button

Brand: Schneider Electric
Reference No: XB4FW36M5
Catalog No: XB4FW36M5
Series: Harmony XB4
Tariff Code (HS): 853650
Rated Voltage: 230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$32.61

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4FW36M5 is a Harmony XB4 illuminated push button with a chromium-plated metal flush-mounted blue head, 30.5 mm mounting diameter, and a 1NO+1NC slow-break contact block. The integral universal LED runs from a 230-240 V AC supply (195-264 V AC limits), drawing 14 mA.

Technical Specifications

Reference XB4FW36M5
Brand Schneider Electric
Range Harmony XB4
Device Type Illuminated push-button
Bezel Material Chromium-plated metal
Mounting Diameter 30.5 mm
Operator Type Spring return, blue flush, plain lens
Light Source Universal LED, integral
Rated Supply Voltage [Us] 230-240 V AC, 50/60 Hz
Supply Voltage Limits 195-264 V AC
Current Consumption 14 mA
Contacts 1NO + 1NC, slow-break
Terminals Screw clamp, 1 x 0.22-2 x 2.5 mm²
Conventional Free-Air Thermal Current [Ith] 10 A
Rated Operational Current [Ie] 3 A at 240 V AC-15
Rated Insulation Voltage [Ui] 600 V
Rated Impulse Withstand Voltage [Uimp] 6 kV
IP Degree IP66, IP67, IP69, IP69K
IK Degree IK06
Service Life 100,000 h at rated voltage, 25 °C
Ambient Temperature (Operation) -40 to 70 °C
Dimensions (H x W x D) 47 x 36.6 x 55 mm
Net Weight 0.132 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1
  • IEC 60947-1

Selection Notes

This 230 V AC version lets the pilot light run directly off the machine's line-voltage control circuit without a 24 V transformer, which simplifies wiring on panels that already distribute 230 V AC for indication. Choose the 24 V AC/DC variant instead where the panel standardizes on a 24 V control bus. The 1NO+1NC contact block still gives a simultaneous make and break signal from a single actuation, useful for interlocking a start command with a second confirmation input.

Technical Details

Short Description
Harmony XB4 illuminated push button, metal blue flush, 30 mm, 1NO+1NC, 230 V AC LED.
Rated Voltage (VAC)
230 V AC
Mounting Type
Panel mount, 30.5 mm cut-out, built-in flush
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FW36M5
Delivery Date (Days)
30 days
Model Number
XB4F
Tariff Code
853650
