Harmony XB4Schneider Electric XB4FW36B5 Harmony XB4 Illuminated Metal Blue 30 mm 1NO+1NC 24 V AC/DC Push Button
Harmony XB4 illuminated push button, metal blue flush, 30 mm, 1NO+1NC, 24 V AC/DC LED.
Description
About the XB4F
About the XB4F

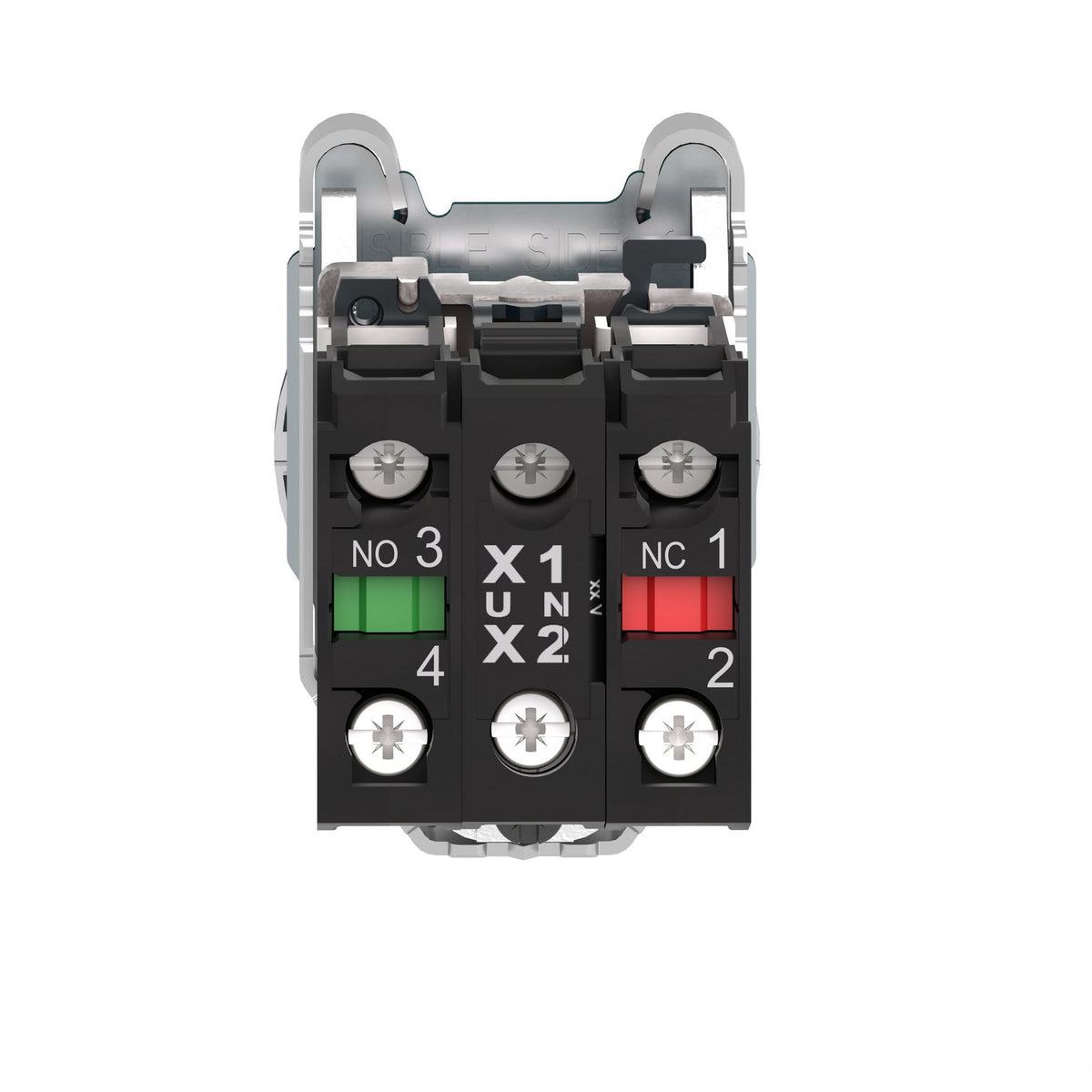

The Schneider Electric XB4FW36B5 is a Harmony XB4 illuminated push button with a chromium-plated metal flush-mounted blue head, 30.5 mm mounting diameter, and a 1NO+1NC slow-break contact block. The integral universal LED runs from a 24 V AC/DC supply (19.2-30 V DC or 21.6-26.4 V AC), drawing 18 mA.
Certifications & Standards
- CE
- UL Listed
- CSA
- CCC
- EAC
- IEC 60947-5-1
- IEC 60947-1
Selection Notes
The flush blue head and plain lens distinguish this unit from the standard non-illuminated XB4 push buttons in the same bezel: the integral LED gives a steady status indication at the operator position without a separate pilot light. The 24 V AC/DC rated supply suits machines running on a common 24 V control bus, avoiding a separate 230 V lighting circuit. Pick the 1NO+1NC contact block when the application needs a simultaneous make and break signal from one actuation, for example a start command interlocked with an indicator lamp circuit on a second PLC input.
Specification
Full specification
Main 18
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4F |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Built-in-flush |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Blue flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
Complementary 29
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.4 in (36.6 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| Net Weight | 0.291 lb(US) (0.132 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Device mounting | Built-in |
| Fixing mode | By screws 7.08 lbf.in (0.8 N.m) |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Current Consumption | 18 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Supply voltage limits | 19.2…30 V DC, 21.6…26.4 V AC |
| Device presentation | Complete product |
Environment 14
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1 |
| Product Certifications | UL Listed, CSA, CCC, EAC |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
Show all 75 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB4FW36B5 |
|---|---|
| Type designation | XB4F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489580759 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.132 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
