Schneider Electric XB4FW33B5 Harmony XB4 Illuminated Green 30 mm Plain Lens LED 1NO+1NC 24V AC/DC Push Button

% $-26.96
Schneider Electric XB4FW33B5 Harmony XB4 Illuminated Green Push Button - 24V AC/DC
Schneider Electric XB4FW33B5 Harmony XB4 Illuminated Green Push Button - 24V AC/DC

Schneider Electric XB4FW33B5 Harmony XB4 Illuminated Green 30 mm Plain Lens LED 1NO+1NC 24V AC/DC Push Button

Brand: Schneider Electric
Reference No: XB4FW33B5
Catalog No: XB4FW33B5
Series: Harmony XB4
Tariff Code (HS): 853650
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$26.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

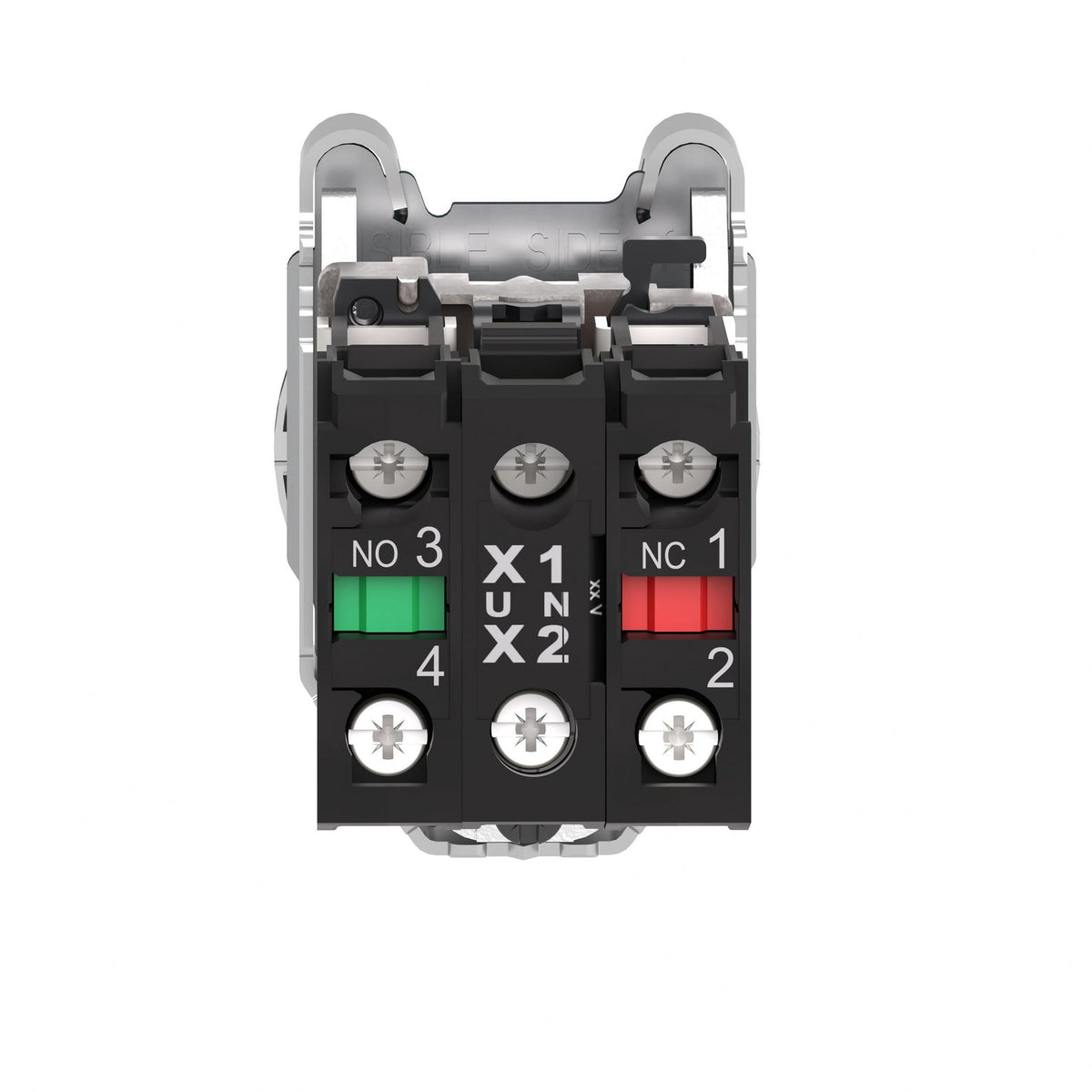

The Schneider Electric XB4FW33B5 is a Harmony XB4 illuminated push button, 30.5 mm mounting diameter, with a green plain lens, integral universal LED, and spring-return 1NO+1NC contacts. It is supplied for a 24 V AC/DC lamp circuit and combines momentary control with built-in status indication, rated up to IP69K.

Technical Specifications

Reference XB4FW33B5
GTIN 3606489580667
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Illuminated push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Green flush, with plain lens
Type of Operator Spring return
Contacts Type and Composition 1 NO + 1 NC
Contact Operation Slow-break
Terminals Description ISO n°1 (13-14)NO | (21-22)NC
Light Source Universal LED
Bulb Base Integral LED
[Us] Rated Supply Voltage 24 V AC/DC 50/60 Hz
Supply Voltage Limits 19.2-30 V DC | 21.6-26.4 V AC
Current Consumption 18 mA
Height 47 mm
Width 36.6 mm
Depth 55 mm
Device Mounting Built-in
Fixing Mode By screws (0.8 N.m)
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or 1 x 0.22...2 x 2.5 mm² without cable end (IEC 60947-1)
Positive Opening With IEC 60947-5-1 appendix K
Signalling Type Steady
Service Life 100,000 h at rated voltage, 25 °C
Surge Withstand 1 kV (IEC 61000-4-5)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK06
Net Weight 0.132 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Confirm the 24 V AC/DC lamp supply matches the control circuit before wiring; the 1NO+1NC contact block lets the LED confirm the commanded state (for example, running) independently of the momentary push action, which a non-illuminated button cannot provide.

Technical Details

Short Description
Harmony XB4 illuminated push button, 30 mm, green, 24V AC/DC.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FW33B5
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
