Schneider Electric XB4FK135M5 Harmony XB4 Orange Illuminated 30 mm 3-Position 230-240V AC Selector Switch

% $-42.32
Schneider Electric XB4FK135M5 Harmony XB4 Illuminated Orange Selector Switch - 230-240V AC
Schneider Electric XB4FK135M5 Harmony XB4 Illuminated Orange Selector Switch - 230-240V AC

Schneider Electric XB4FK135M5 Harmony XB4 Orange Illuminated 30 mm 3-Position 230-240V AC Selector Switch

Brand: Schneider Electric
Reference No: XB4FK135M5
Catalog No: XB4FK135M5
Series: Harmony XB4
Tariff Code (HS): 853650
Rated Voltage: 230-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$42.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

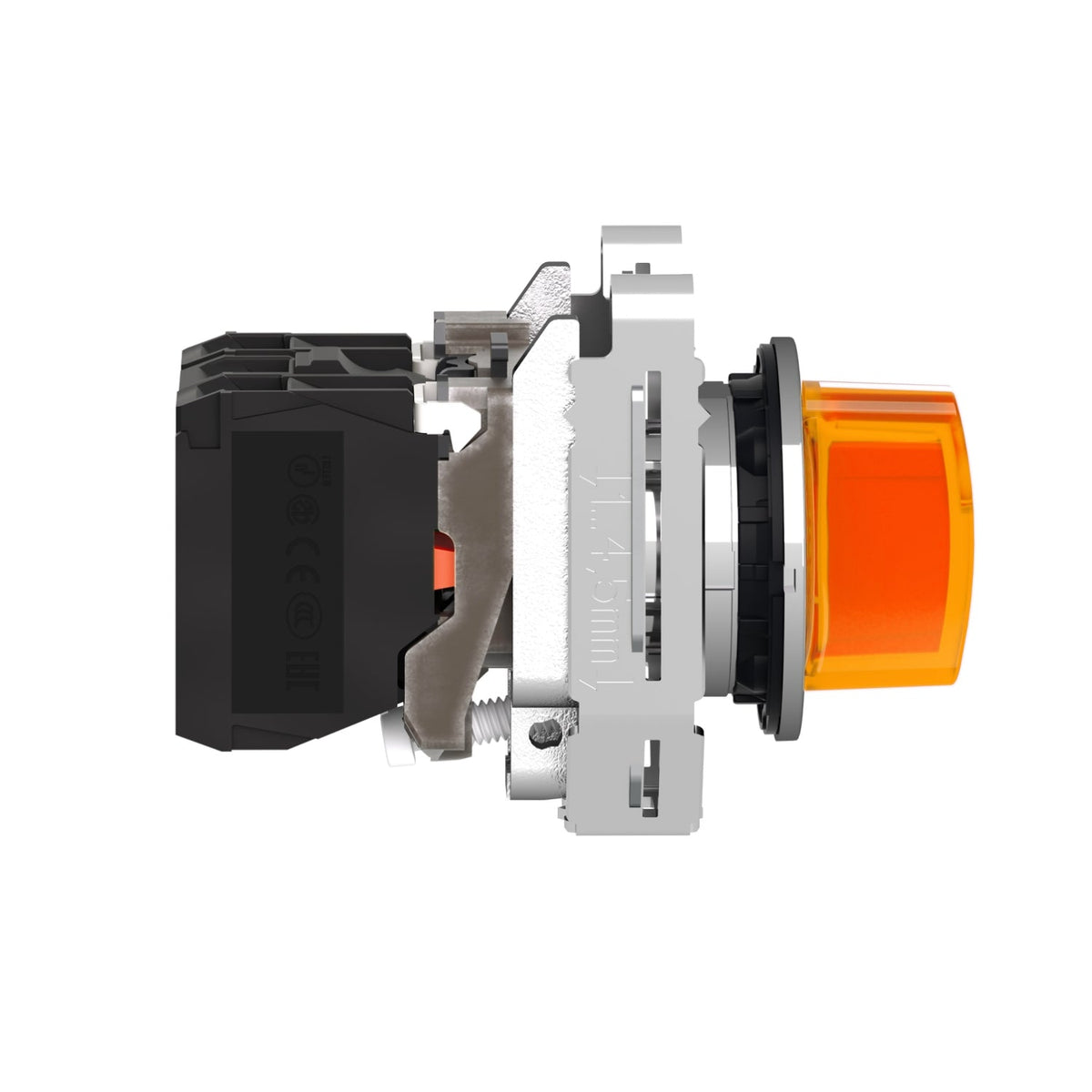

The Schneider Electric XB4FK135M5 is a Harmony XB4 illuminated selector switch, 30.5 mm mounting diameter, with a orange handle, integral universal-LED lighting, and 1NO+1NC contacts. It is supplied for a 230-240 V AC lamp circuit and offers 3 positions +/-45 deg stay-put switching for panel-front selection with built-in position indication.

Technical Specifications

Reference XB4FK135M5
GTIN 3606489580452
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Illuminated selector switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Orange standard handle
Type of Operator Stay put
Operator Position Information 3 positions ±45°
Contacts Type and Composition 1 NO + 1 NC
Contact Operation Slow-break
Terminals Description ISO n°1 (13-14)NO | (21-22)NC
Light Source Universal LED
Bulb Base Integral LED
[Us] Rated Supply Voltage 230-240 V AC 50/60 Hz
Supply Voltage Limits 195-264 V AC
Current Consumption 14 mA
Height 53 mm
Width 36.6 mm
Depth 69.5 mm
Device Mounting Built-in, 30.75 mm ± 0.25 mm
Positive Opening With NC contact (IEC 60947-5-1 appendix K)
Signalling Type Steady
Service Life 100,000 h at rated voltage, 25 °C
Surge Withstand 1 kV (IEC 61000-4-5)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK04
Net Weight 0.151 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Specify the 230-240 V AC lamp voltage to match the control-circuit supply before wiring; this orange 3 positions +/-45 deg variant shares its 30.5 mm cutout and 1NO+1NC contact block with the other illuminated handle colours in the XB4F range, so the LED colour alone identifies the switch state at the panel.

Technical Details

Short Description
Harmony XB4 illuminated selector switch, 30 mm, orange, 3 positions +/-45 deg, 230-240V AC.
Rated Voltage (VAC)
230-240 V AC
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FK135M5
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
