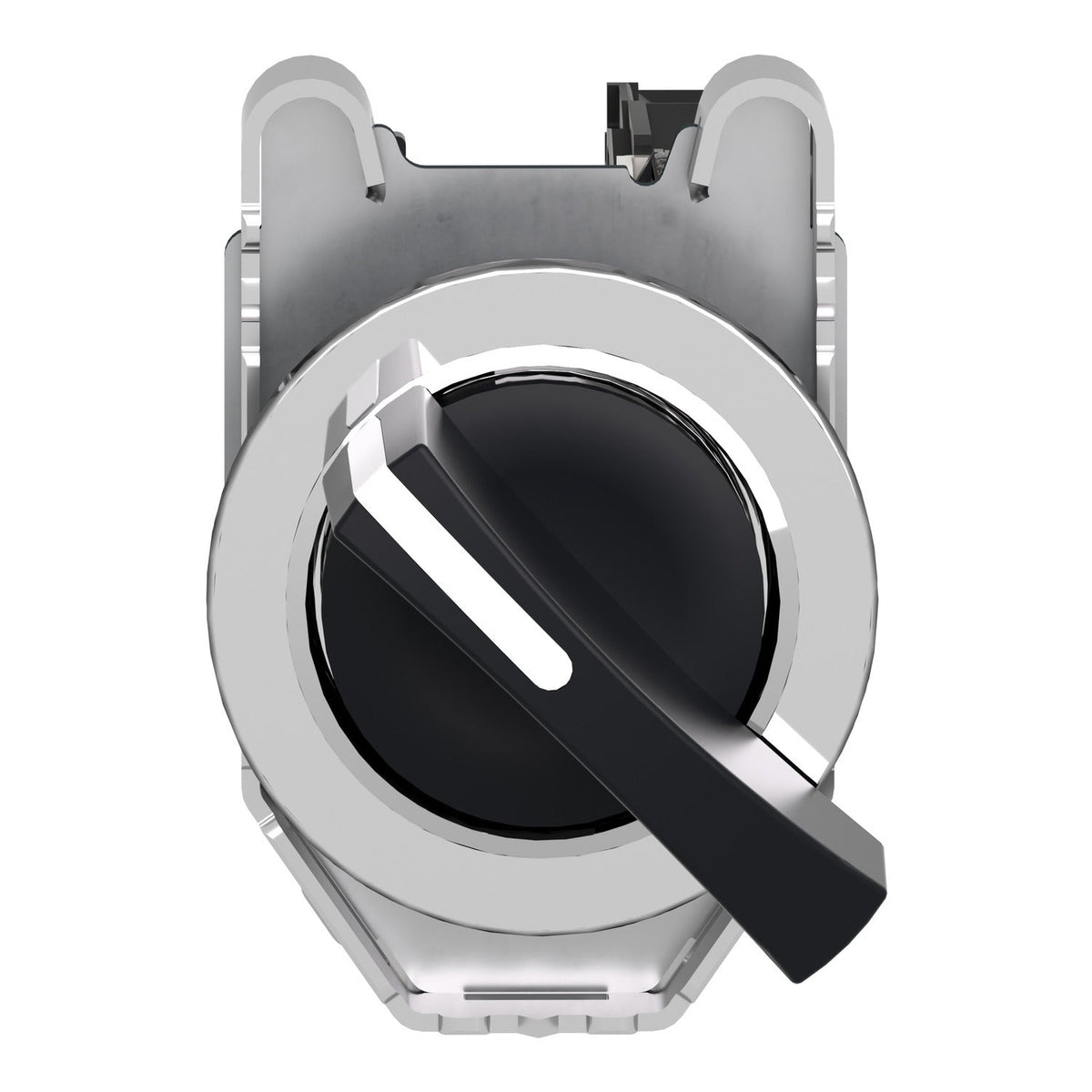

Schneider Electric XB4FJ21 Harmony XB4 Selector Switch 30 mm Long Handle 2-Position 1NO Selector Switch

% $-21.25
Schneider Electric XB4FJ21 Harmony XB4 Long Handle Selector Switch - 30 mm 1NO
Schneider Electric XB4FJ21 Harmony XB4 Long Handle Selector Switch - 30 mm 1NO

Schneider Electric XB4FJ21 Harmony XB4 Selector Switch 30 mm Long Handle 2-Position 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB4FJ21
Catalog No: XB4FJ21
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$21.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4FJ21 is a Harmony XB4 metal flush-mounted selector switch, 30.5 mm mounting diameter, fitted with a black long handle. It offers 2 positions 90 deg in stay put mode and switches a 1NO silver-alloy contact rated 10 A Ith for panel-front selection in enclosures rated up to IP69K.

Technical Specifications

Reference XB4FJ21
GTIN 3606489580254
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Selector switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Black long handle
Type of Operator Stay put
Operator Position Information 2 positions 90°
Contacts Type and Composition 1NO
Contact Operation Slow-break
Terminals Description ISO n°1 (13-14)NO
Height 48 mm
Depth 100 mm
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or ≥1 x 0.22 mm² without cable end (IEC 60947-1)
Width 36.6 mm
Fixing Center 40 x 50 mm (panel 1...6 mm thick)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
[Ie] Rated Operational Current 3 A 240 V AC-15 | 6 A 120 V AC-15 | 1.2 A 600 V AC-15 | 0.1-0.55 A DC-13
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
Fixing Mode By screws
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK04
Net Weight 0.096 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Pick this 2-position stay put variant when the application needs 1NO switching with a long handle; the spring-return-to-center versions self-center after release, while the stay-put versions hold the last selected position until the operator moves it again.

Technical Details

Short Description
Harmony XB4 metal black long handle selector switch, 30 mm, 2 positions 90 deg, 1NO.
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FJ21
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
