Schneider Electric XB4FG21 Harmony XB4 Key Switch 30 mm 2-Position 1NO Selector Switch

% $-34.49

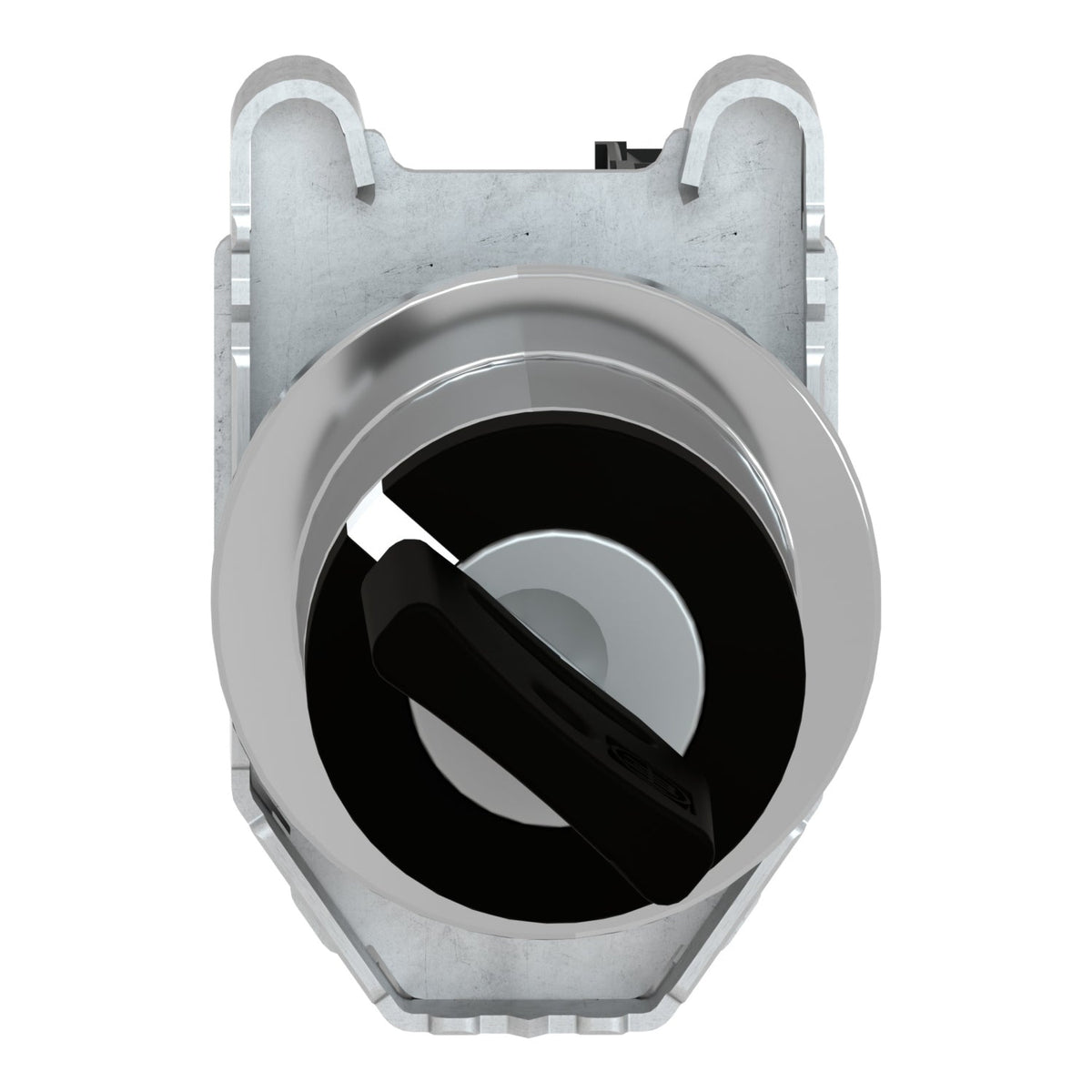

Schneider Electric XB4FG21 Harmony XB4 Key Switch Selector Switch - 30 mm 1NO
Schneider Electric XB4FG21 Harmony XB4 Key Switch Selector Switch - 30 mm 1NO

Schneider Electric XB4FG21 Harmony XB4 Key Switch 30 mm 2-Position 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB4FG21
Catalog No: XB4FG21
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4FG21 is a Harmony XB4 metal flush-mounted key switch, 30.5 mm mounting diameter, operated by a key 455. It holds 2 positions 90 deg in stay put mode and switches a 1NO silver-alloy contact rated 10 A Ith for panel-front selection in enclosures rated up to IP69K.

Technical Specifications

Reference XB4FG21
GTIN 3606489580216
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Key switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Black key switch
Type of Operator Stay put
Operator Position Information 2 positions 90°
Type of Keylock Key 455
Key Withdrawal Position Left-hand
Contacts Type and Composition 1NO
Contact Operation Slow-break
Terminals Description ISO n°1 (13-14)NO
Height 47 mm
Depth 100 mm
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or ≥1 x 0.22 mm² without cable end (IEC 60947-1)
Width 36.6 mm
Fixing Center 40 x 50 mm (panel 1...6 mm thick)
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
[Ie] Rated Operational Current 3 A 240 V AC-15 | 6 A 120 V AC-15 | 1.2 A 600 V AC-15 | 0.1-0.55 A DC-13
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
Fixing Mode By screws
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK04
Net Weight 0.117 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Specify this 2-position key-switch variant where the selection must be restricted to keyholders; the key withdraws in left-hand position only, and the 1NO contact block matches the circuit logic of this station without adding a separate key-lock accessory.

Technical Details

Short Description
Harmony XB4 metal black key switch selector switch, 30 mm, 2 positions 90 deg, 1NO.
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FG21
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
