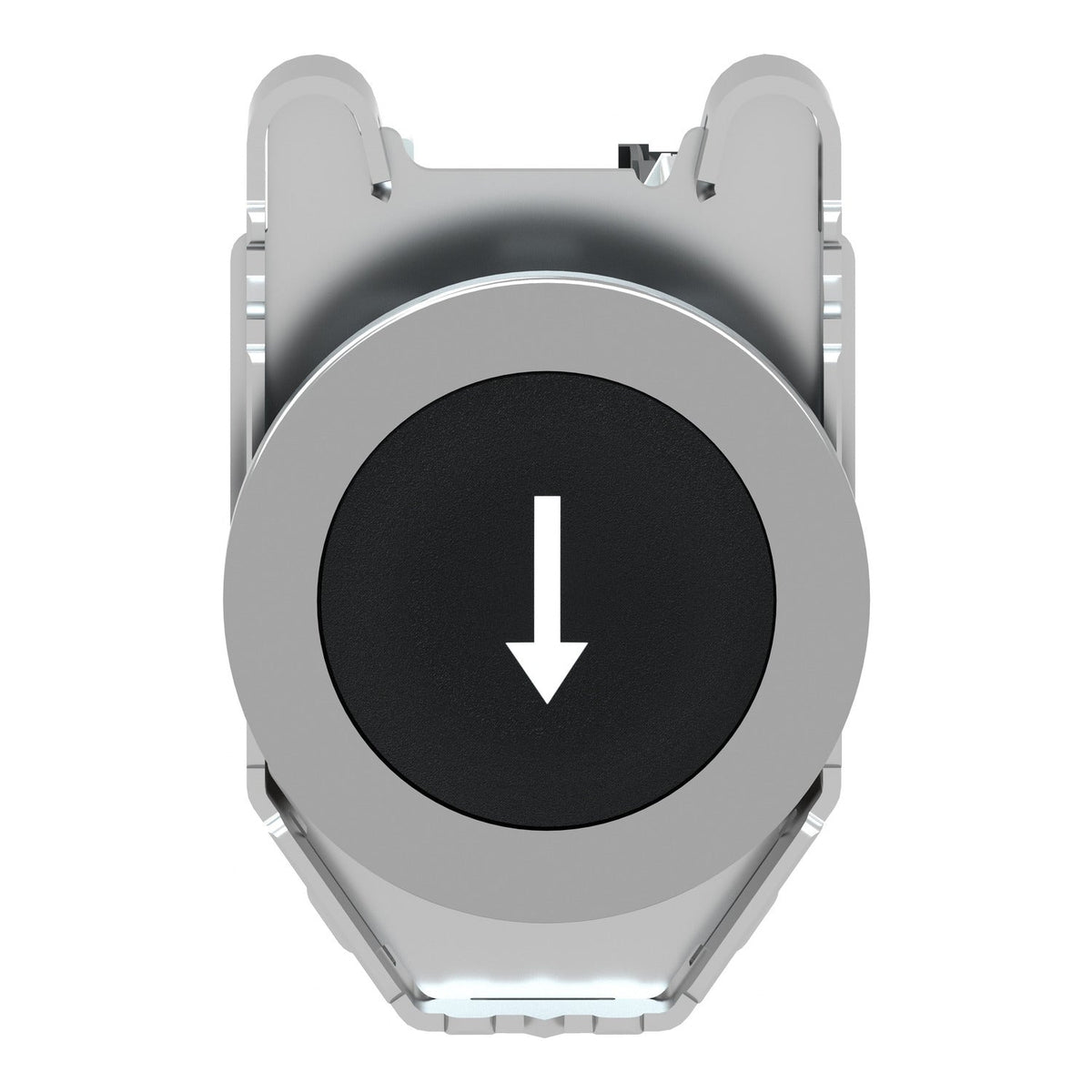

Schneider Electric XB4FA3351 Harmony XB4 Black Metal Flush Push Button 30 mm Down Arrow 1NO Push Button

% $-18.02
Schneider Electric XB4FA3351 Harmony XB4 Black Push Button – 30 mm 1NO
Schneider Electric XB4FA3351 Harmony XB4 Black Push Button – 30 mm 1NO

Schneider Electric XB4FA3351 Harmony XB4 Black Metal Flush Push Button 30 mm Down Arrow 1NO Push Button

Brand: Schneider Electric
Reference No: XB4FA3351
Catalog No: XB4FA3351
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.02

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4FA3351 is a Harmony XB4 metal flush-mounted push button, 30.5 mm mounting diameter, with a black round head carrying a down-arrow marking. Spring-return operation drives a 1NO silver-alloy contact rated 10 A Ith, built for panel-front control in industrial enclosures rated up to IP69K.

Technical Specifications

Reference XB4FA3351
GTIN 3606489580100
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Operator Profile Black flush, a down-arrow marking
Contacts Type and Composition 1NO
Contact Operation Slow-break
Terminals Description ISO n°1 (13-14)NO
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or 1 x 0.22...2 x 2.5 mm² without cable end (IEC 60947-1)
Height 47 mm
Width 36.6 mm
Depth 55 mm
[Ith] Conventional Free Air Thermal Current 10 A (IEC 60947-5-1)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
[Uimp] Rated Impulse Withstand Voltage 6 kV (IEC 60947-1)
[Ie] Rated Operational Current 3 A 240 V AC-15 | 6 A 120 V AC-15 | 1.2 A 600 V AC-15 | 0.1-0.55 A DC-13
Short-Circuit Protection 10 A cartridge fuse gG (IEC 60947-5-1)
Contacts Material Silver alloy (Ag/Ni)
Fixing Mode By screws
IP Degree of Protection IP66, IP67, IP69, IP69K
Enclosure Type UL Type 4X/13
IK Degree of Protection IK06
Net Weight 0.116 kg

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-5-1
  • JIS C8201-5-1

Selection Notes

Choose the 1NO contact configuration to match the circuit logic of this station; the black head with a down-arrow marking differentiates this variant from the other colour and marking options in the XB4F flush-mount range while sharing the same 30.5 mm cutout and screw-clamp wiring.

Technical Details

Short Description
Harmony XB4 metal flush push button, 30 mm, Black, 1NO.
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FA3351
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
