Schneider Electric XB4BW34M5 Harmony XB4 Illuminated Red Flush LED 230-240 V AC 1NO+1NC Push Button

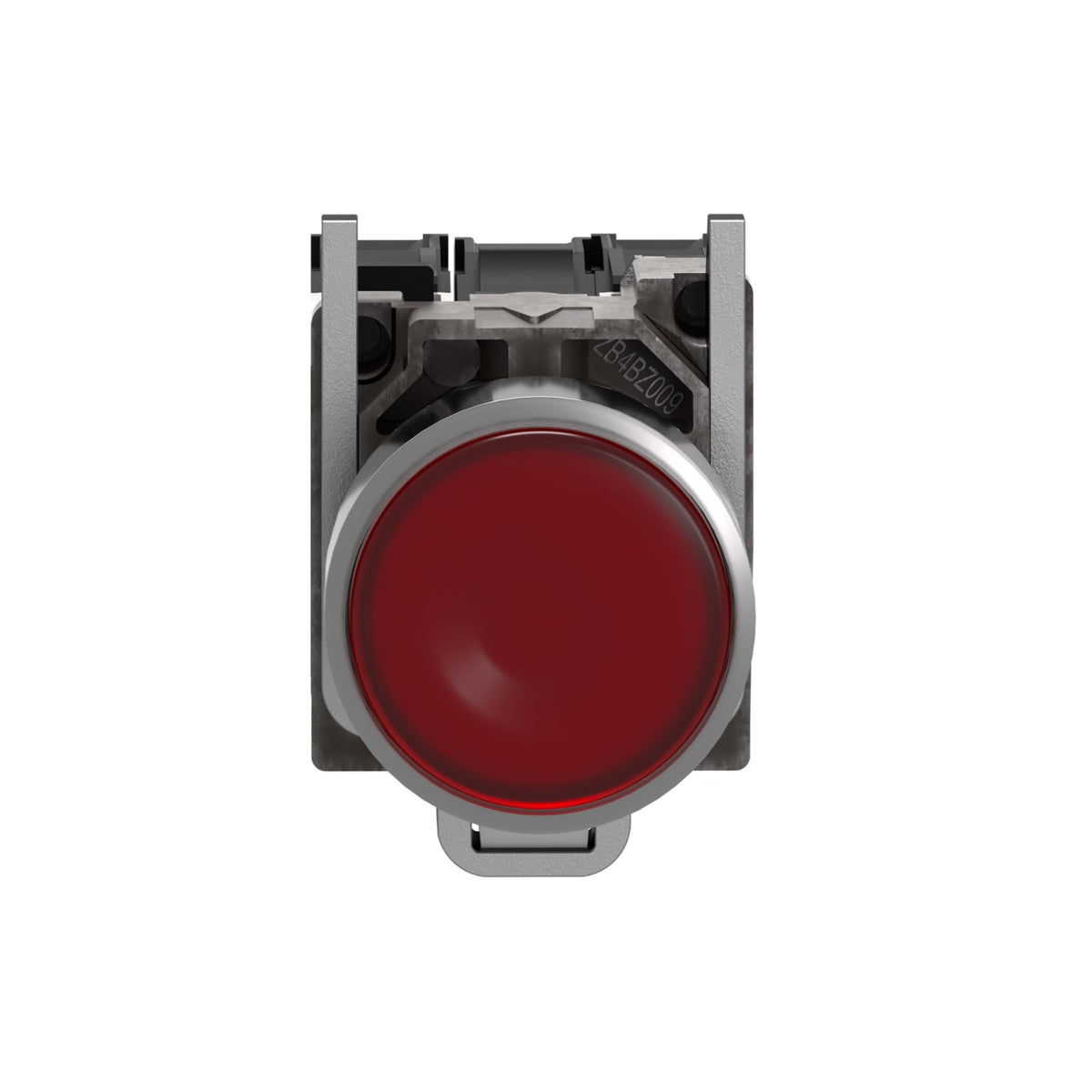

The Schneider Electric XB4BW34M5 is a Harmony XB4 illuminated push button with a chromium-plated metal bezel, a red flush head with a plain lens and an integral universal LED rated for 230-240 V AC supply. The 1 NO + 1 NC contact block switches through screw-clamp terminals, drawing 14 mA, and the sealed body carries IP66, IP67, IP69 and IP69K protection for a 22.5 mm panel cutout.

Technical Specifications

Certifications & Standards

• IEC 60947-5-1
• IEC 60947-1
• UL 508
• CSA C22.2 No 14

Selection Notes

The XB4BW34M5 replaces the replaceable BA9s bulb of the BW3x65 illuminated range with an integral LED, so the 14 mA draw is fixed and there is no lamp to source separately — choose it when the panel feed matches 230-240 V AC and low-maintenance combined push/indicate duty matters more than reusing existing BA9s stock. The 1 NO + 1 NC contact pair lets the same head drive a start command and a confirmation signal back to the lamp circuit. The flush red profile sits close to the panel face, which reduces accidental actuation compared with a projecting head, and the 100,000 hour LED service life outlasts the BA9s bulb it replaces.

Applications

Used where a single 22 mm cutout needs a momentary red push button with its own low-maintenance LED indication, on panels supplied at 230-240 V AC.
