- Part number
- XB4BW3165
- Model no
- XB4
Description
About the XB4
About the XB4

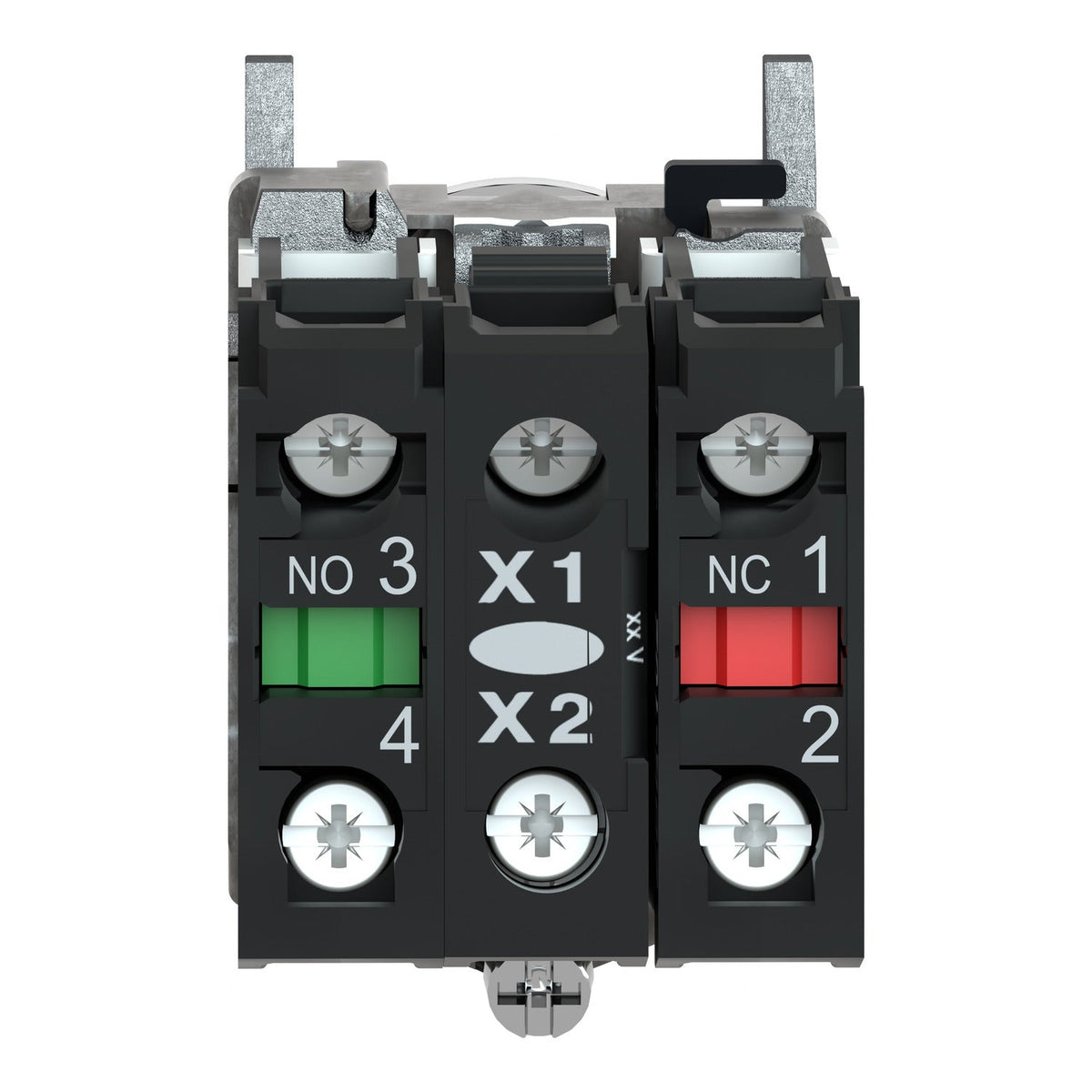

The Schneider Electric XB4BW3165 is a Harmony XB4 illuminated push button with a chromium-plated metal bezel, a white flush head with a plain lens and a BA9s bulb base (bulb not included), supplied at up to 250 V AC/DC. The 1 NO + 1 NC contact block switches through screw-clamp terminals, and the sealed body carries IP66, IP67, IP69 and IP69K protection for a standard 22.5 mm panel cutout.
Certifications & Standards
- IEC 60947-5-1
- IEC 60947-1
- UL 508
- CSA C22.2 No 14
Selection Notes
The XB4BW3165 combines a push button and a pilot light in one head: the spring return mechanism gives momentary 1 NO + 1 NC switching while the BA9s-lit white lens can run from a separate signal to show machine state, which is why illuminated flush buttons like this one are typically wired as combined start/confirm or stop/fault indicators rather than plain momentary inputs. Because the lamp uses a replaceable BA9s bulb rather than an LED, maintenance teams already stocking BA9s lamps for the XB4BV6x pilot lights can use the same spares here. The flush profile sits closer to the panel face than a projecting head, reducing the risk of accidental actuation, and the IP66/IP67/IP69/IP69K sealing holds up under wash-down.
Applications
Used where a single 22 mm cutout needs to combine a momentary white push button with its own pilot indication, on panels supplied at up to 250 V AC/DC with BA9s lamp stock already on hand.
Specification
Full specification
Main 19
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | White flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
Complementary 23
| Height | 1.9 in (47 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (57 mm) |
| Terminals description ISO n°1 | (21-22)NC, (13-14)NO |
| Net Weight | 0.214 lb(US) (0.097 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state), 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state, 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Device presentation | Complete product |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, JIS C8201-1 |
| Product Certifications | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 67 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB4BW3165 |
|---|---|
| Type designation | XB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887303 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.097 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
