Schneider Electric XB4BP31 Harmony XB4 Metal Projecting Green Booted 22 mm Spring Return 1NO Push Button

% $-11.13

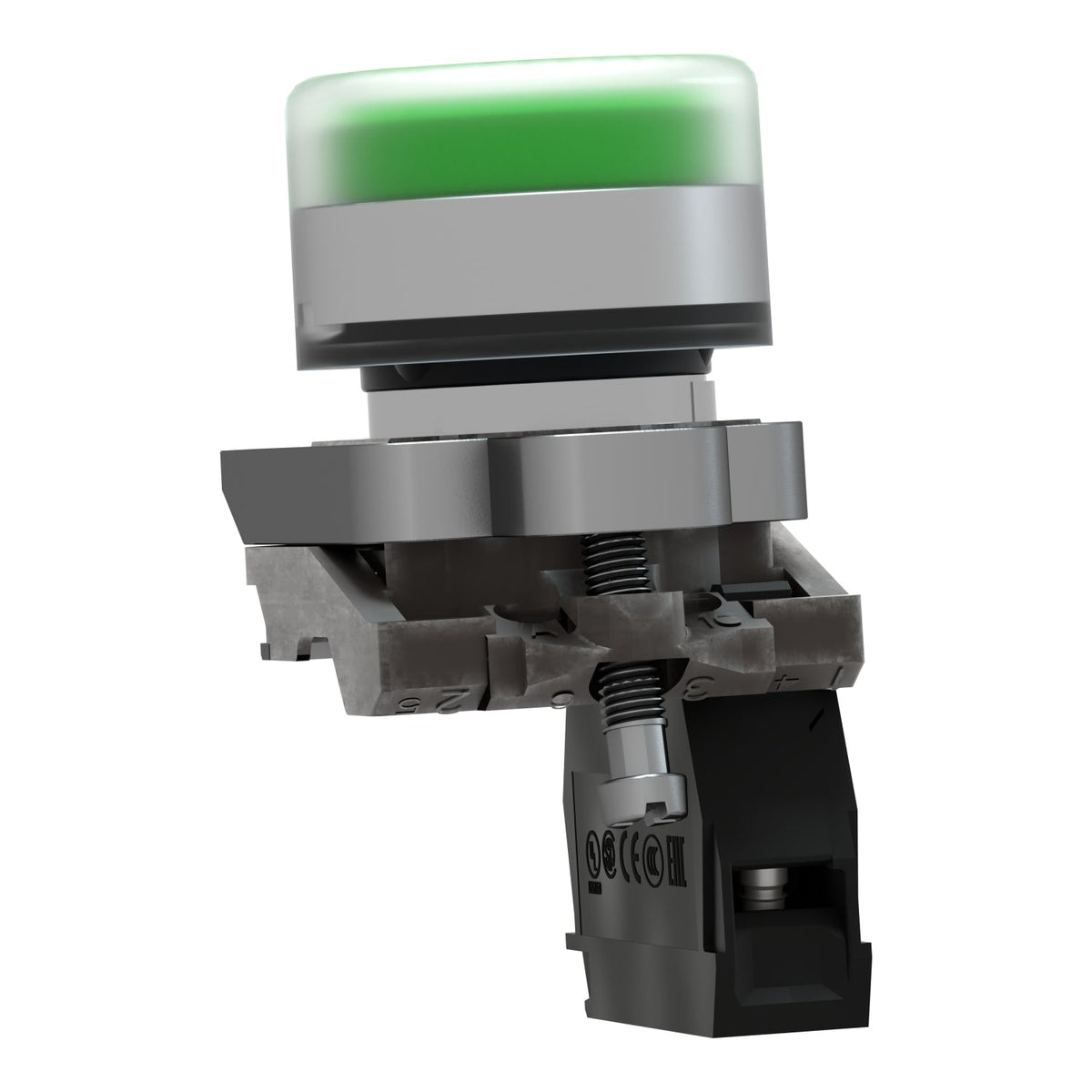

Schneider Electric XB4BP31 Harmony XB4 push button green projecting booted - 1NO
Schneider Electric XB4BP31 Harmony XB4 push button green projecting booted - 1NO

Schneider Electric XB4BP31 Harmony XB4 Metal Projecting Green Booted 22 mm Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB4BP31
Catalog No: XB4BP31
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BP31 is a Harmony XB4 22 mm modular push button with a green projecting metal operator under a clear boot, unmarked. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BP31
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button, booted
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Green projecting, unmarked, clear boot
Product Compatibility Not compatible with legend holder
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.082 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The clear boot over the projecting green operator seals the button against dust and splash without hiding the start-function colour, and the projecting profile is easier to locate by feel than a flush button. It does not accept a legend holder, so a printed function label is not an option here - the flush unmarked XB4BA31 in the same green bezel is the choice where legend-holder compatibility is needed instead.

Technical Details

Short Description
Harmony XB4 22 mm push button, green projecting, booted, unmarked, spring return, 1NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP67
Catalog No
XB4BP31
Delivery Date (Days)
30 days
Model Number
XB4BP
Tariff Code
853650
