Schneider Electric XB4BK134M5 Harmony XB4 Illuminated Red 3-Position LED 230-240 V AC 1NO+1NC Selector Switch

% $-34.90

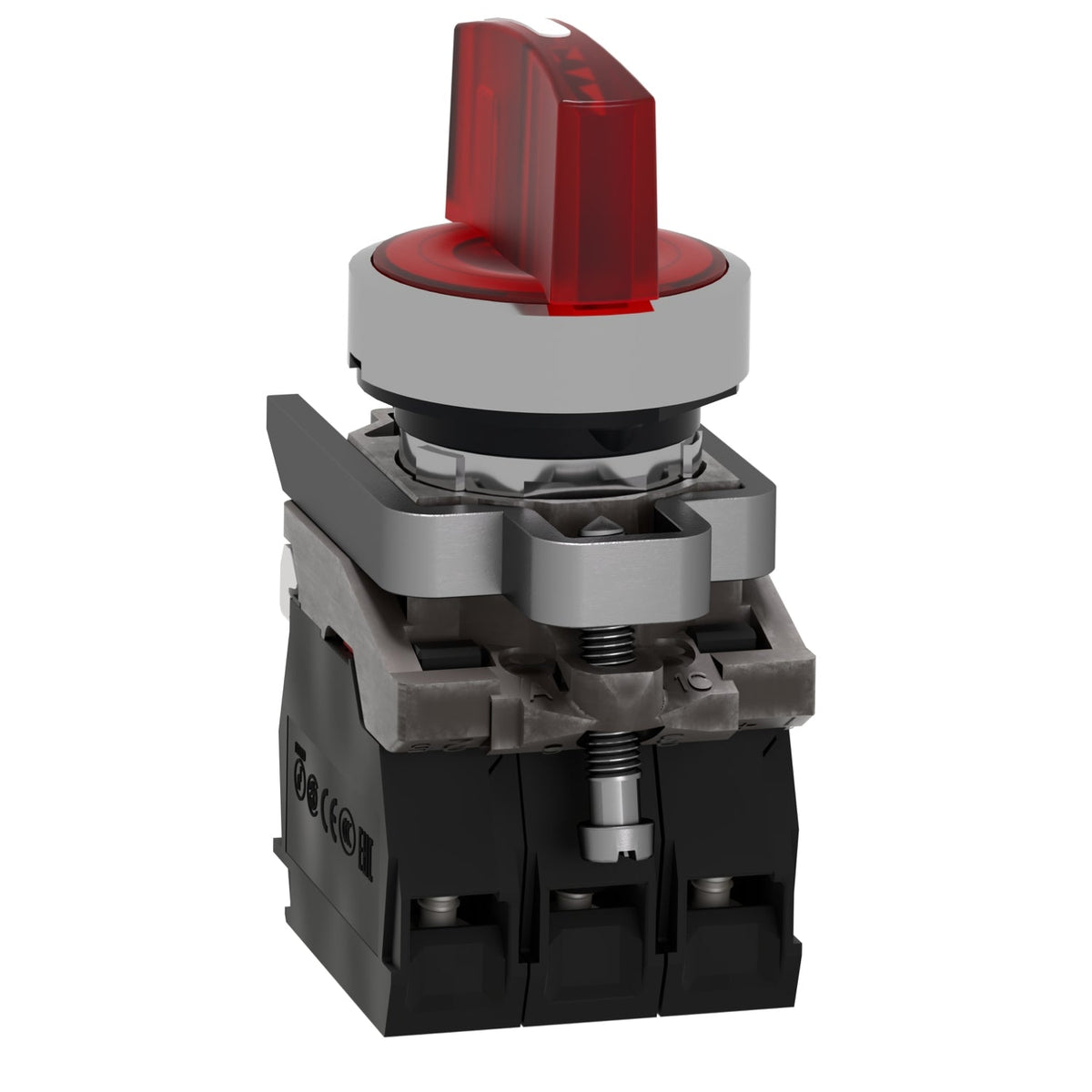

Schneider Electric XB4BK134M5 Harmony XB4 illuminated selector switch red 3-position
Schneider Electric XB4BK134M5 Harmony XB4 illuminated selector switch red 3-position

Schneider Electric XB4BK134M5 Harmony XB4 Illuminated Red 3-Position LED 230-240 V AC 1NO+1NC Selector Switch

Brand: Schneider Electric
Reference No: XB4BK134M5
Catalog No: XB4BK134M5
Series: Harmony XB4
Tariff Code (HS): 853650
Rated Voltage: 230...240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.90

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BK134M5 is a Harmony XB4 22 mm modular illuminated selector switch with a red standard handle, 3 positions at plus or minus 45 degrees, and a universal LED running on 230-240 V AC. It operates on a stay-put mechanism, switches 1 NO + 1 NC with positive opening, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BK134M5
Brand Schneider Electric
Range Harmony XB4
Product Type Illuminated selector switch
Bezel Material Chromium plated metal
Mounting Diameter 22.5 mm
Operator Type Stay put
Operator Profile Red standard handle, 3 positions at +/- 45 degrees
Contacts 1 NO + 1 NC, positive opening, slow-break
Light Source Universal LED, integral
Rated Supply Voltage (Us) 230...240 V AC, 50/60 Hz
Supply Voltage Limits 195-264 V AC
Current Consumption 14 mA
Service Life (Lamp) 100,000 h at rated voltage, 25 C
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK04

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The 230-240 V AC supply on the XB4BK134M5 lets the lamp run directly off a mains-derived control circuit without a step-down transformer - the 24 V AC/DC XB4BK134B5 sibling is the choice where the panel's control power is already low-voltage instead. The 3-position handle holds a centre neutral state alongside two selected modes, unlike the 2-position XB4BK124M5, which only toggles between two states.

Technical Details

Short Description
Harmony XB4 22 mm illuminated selector switch, red, 3 positions, 230-240 V AC, 1NO+1NC.
Rated Voltage (VAC)
230...240 V AC
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BK134M5
Delivery Date (Days)
30 days
Model Number
XB4BK
Tariff Code
853650
