Schneider Electric XB4BK125B5 Harmony XB4 Illuminated Orange 2-Position LED 24 V AC/DC 1NO+1NC Selector Switch

% $-26.96
Schneider Electric XB4BK125B5 Harmony XB4 illuminated selector switch orange - 24 V AC/DC
Schneider Electric XB4BK125B5 Harmony XB4 illuminated selector switch orange - 24 V AC/DC

Schneider Electric XB4BK125B5 Harmony XB4 Illuminated Orange 2-Position LED 24 V AC/DC 1NO+1NC Selector Switch

Brand: Schneider Electric
Reference No: XB4BK125B5
Catalog No: XB4BK125B5
Series: Harmony XB4
Tariff Code (HS): 853650
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$26.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

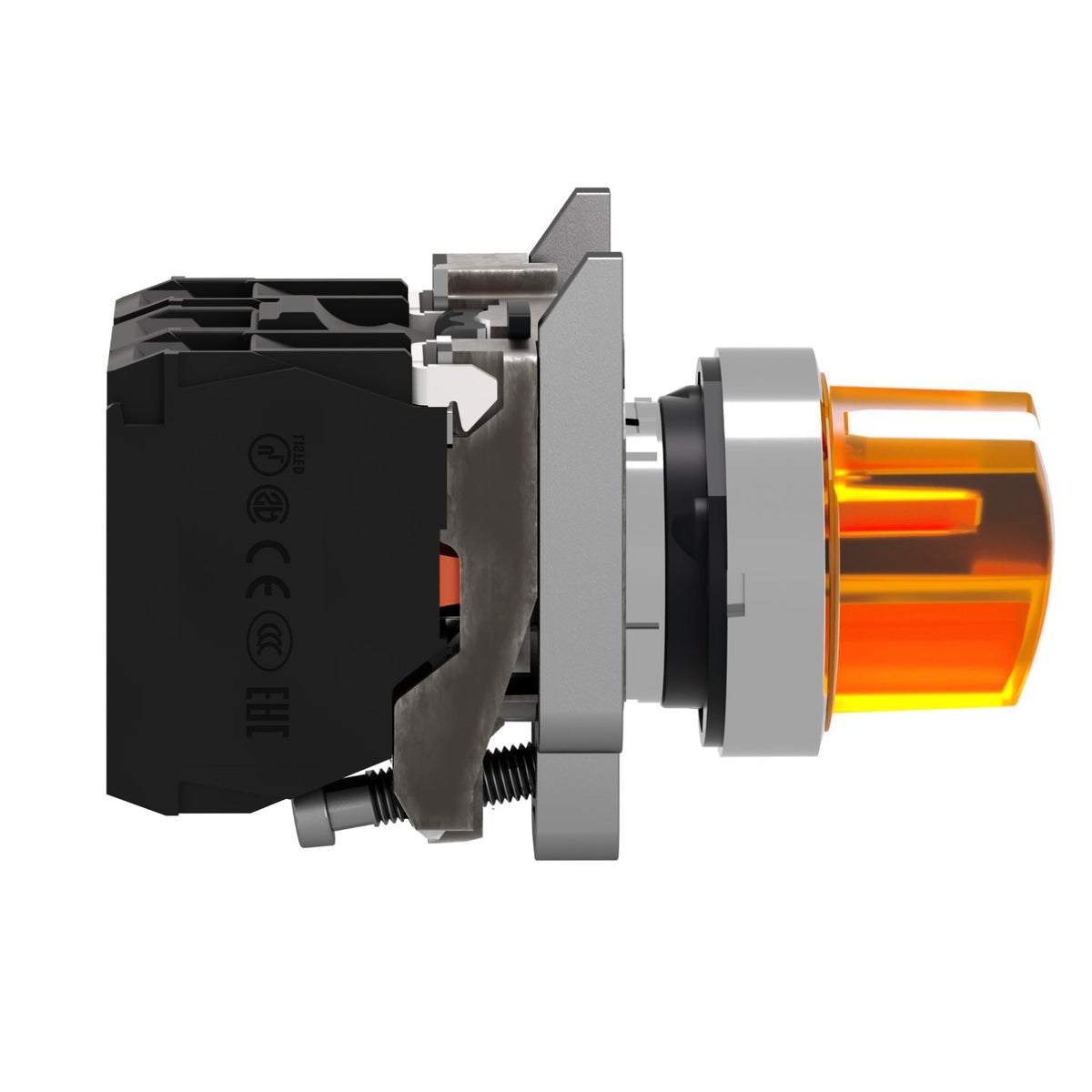

The Schneider Electric XB4BK125B5 is a Harmony XB4 22 mm modular illuminated selector switch with an orange standard handle, 2 positions at 90 degrees, and a universal LED running on 24 V AC/DC. It operates on a stay-put mechanism, switches 1 NO + 1 NC with positive opening, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BK125B5
Brand Schneider Electric
Range Harmony XB4
Product Type Illuminated selector switch
Bezel Material Chromium plated metal
Mounting Diameter 22.5 mm
Operator Type Stay put
Operator Profile Orange standard handle, 2 positions at 90 degrees
Contacts 1 NO + 1 NC, positive opening, slow-break
Light Source Universal LED, integral
Rated Supply Voltage (Us) 24 V AC/DC, 50/60 Hz
Supply Voltage Limits 19.2-30 V DC / 21.6-26.4 V AC
Current Consumption 18 mA
Service Life (Lamp) 100,000 h at rated voltage, 25 C
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK04
Net Weight 0.111 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The 24 V AC/DC supply on the XB4BK125B5 lets the lamp run off the same low-voltage control circuit as PLC I/O, avoiding a mixed-voltage panel - the 230-240 V AC XB4BK125M5 sibling is the choice where the panel is wired straight off mains-derived control power instead. Orange typically flags a caution or manual-override state; the green XB4BK123B5 and red XB4BK124B5 in the same 2-position, 24 V AC/DC configuration cover run and stop states respectively.

Technical Details

Short Description
Harmony XB4 22 mm illuminated selector switch, orange, 2 positions, 24 V AC/DC, 1NO+1NC.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BK125B5
Delivery Date (Days)
30 days
Model Number
XB4BK
Tariff Code
853650
