Part number
XB4BK124B5
Model no
XB4
$27.45 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB4

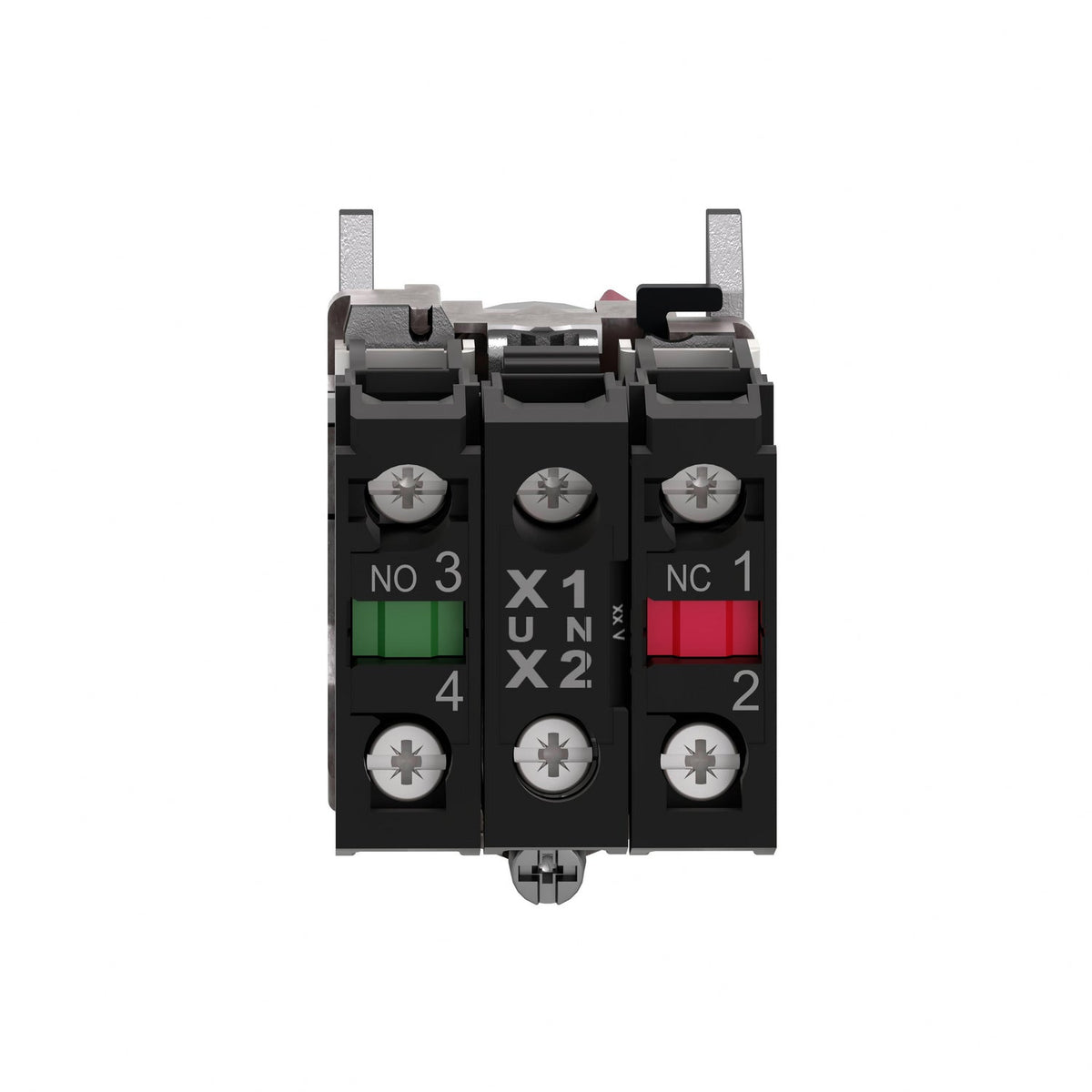

Schneider Electric XB4BK124B5 Harmony XB4 Illuminated Red 2-Position LED 24 V AC/DC 1NO+1NC Selector Switch

Harmony XB4 22 mm illuminated selector switch, red, 2 positions, 24 V AC/DC, 1NO+1NC.

Rated operational voltage
24–DC V DC
EAN
3389110892208
Description

About the XB4

The Schneider Electric XB4BK124B5 is a Harmony XB4 22 mm modular illuminated selector switch with a red standard handle, 2 positions at 90 degrees, and a universal LED running on 24 V AC/DC. It operates on a stay-put mechanism, switches 1 NO + 1 NC with positive opening, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The 24 V AC/DC supply on the XB4BK124B5 lets the lamp run off the same low-voltage control circuit as PLC I/O, avoiding a mixed-voltage panel - the 230-240 V AC XB4BK124M5 sibling is the choice where the panel is wired straight off mains-derived control power instead. Red signals a stop or off state; the green XB4BK123B5 and orange XB4BK125B5 in the same 2-position, 24 V AC/DC configuration cover run and caution states respectively.

Specification

Full specification

73 values · Last verified 30 Oct 2026

Main 18

Range of Product Harmony XB4
Product or Component Type Illuminated selector switch
Device short name XB4
Bezel material Chromium plated metal
Fixing collar material Zamak
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator stay put
Operator profile Red standard handle
Operator position information 2 positions 90°
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Light source Universal LED
Bulb base Integral LED
[Us] rated supply voltage 24 V AC/DC 50/60 Hz

Complementary 26

Height 1.9 in (47 mm)
Width 1.2 in (30 mm)
Depth 2.7 in (68 mm)
Terminals description ISO n°1 (13-14)NO, (21-22)NC
Net Weight 0.245 lb(US) (0.111 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening With IEC 60947-5-1 appendix K
Operating torque 1.24 lbf.in (0.14 N.m) NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Signalling type Steady
Supply voltage limits 19.2…30 V DC, 21.6…26.4 V AC
Current Consumption 18 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
Device presentation Complete product

Environment 15

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Electrical shock protection class Class I conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK04 conforming to IEC 50102
Standards IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, UL 508, IEC 60947-5-5, IEC 60947-1, JIS C8201-1
Product Certifications BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
Show all 73 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB4BK124B5
Type designation XB4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110892208

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.111 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB4BK124B5

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-5-1
  • JIS C8201-5-1
  • IEC 60947-5-4
  • CSA C22.2 No 14
  • UL 508
  • IEC 60947-5-5
  • IEC 60947-1
  • JIS C8201-1
Quick answers

Questions about the XB4

Which supply voltage is XB4 rated for?

The rated operational voltage of XB4 is 24–DC V DC.

What is the HS code of XB4 for customs?

The tariff (HS) code on file for XB4 is 853650.

What is the EAN of XB4?

The EAN (GTIN) of XB4 is 3389110892208.

Where does XB4 ship from, and how fast?

XB4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
