Schneider Electric XB4BJ21 Harmony XB4 Metal Black Long Handle 22 mm 2-Position Stay Put 1NO Selector Switch

% $-11.50

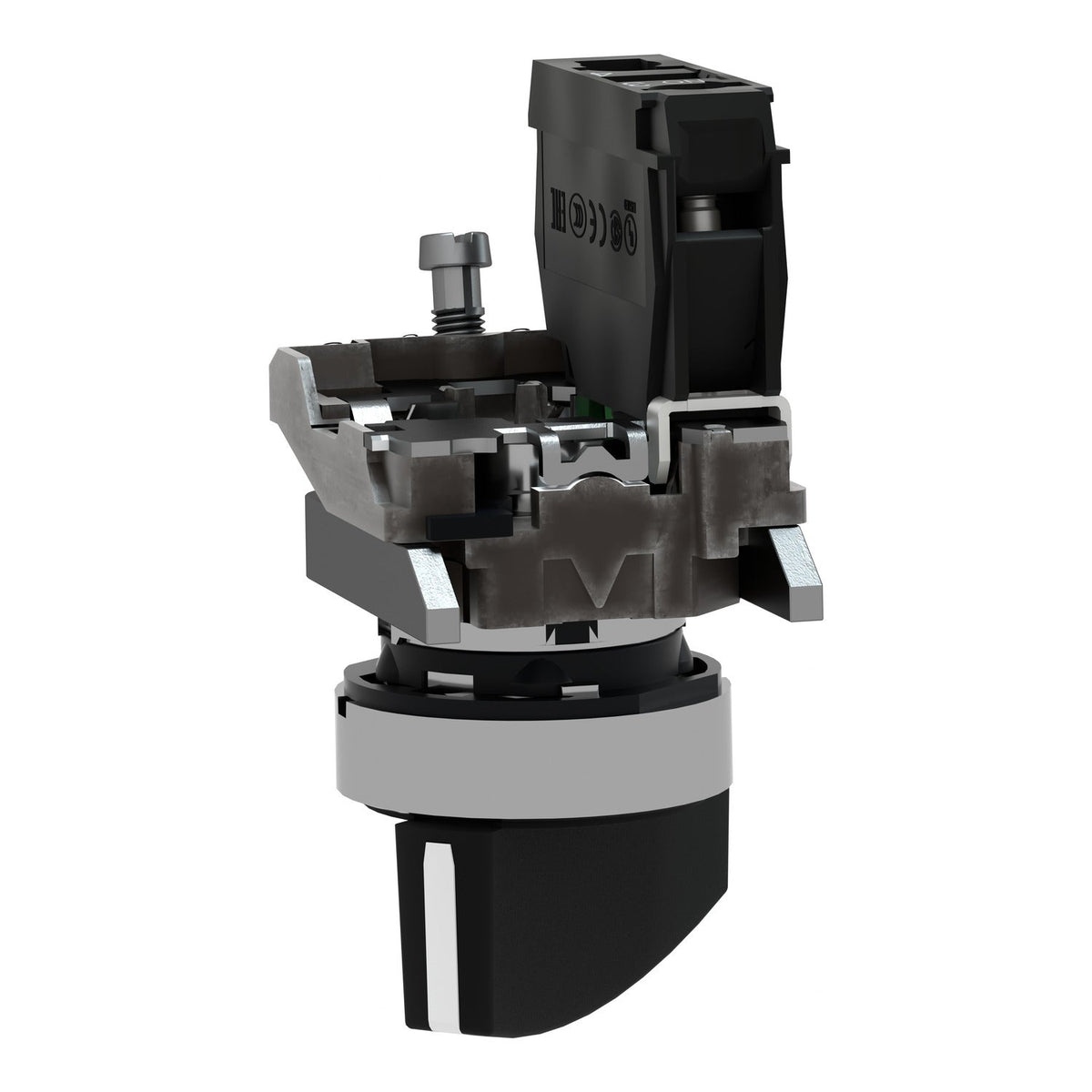

Schneider Electric XB4BJ21 Harmony XB4 long handle selector switch black - 1NO
Schneider Electric XB4BJ21 Harmony XB4 long handle selector switch black - 1NO

Schneider Electric XB4BJ21 Harmony XB4 Metal Black Long Handle 22 mm 2-Position Stay Put 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB4BJ21
Catalog No: XB4BJ21
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BJ21 is a Harmony XB4 22 mm modular selector switch with a black long handle and 2 positions at 90 degrees. It operates on a stay-put mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BJ21
Brand Schneider Electric
Range Harmony XB4
Product Type Selector switch, long handle
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Stay put
Operator Profile Black long handle, 2 positions at 90 degrees
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
IP Degree of Protection IP67 / IP69 / IP69K
Operating Temperature -40...70 C
Net Weight 0.096 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The long handle on the XB4BJ21 gives more leverage and a clearer position indication at a distance than the standard-handle XB4BD21, which carries the same 2-position, stay-put, 1 NO specification - pick the long handle where the panel is viewed from further away or where gloved operation needs a bigger grip. For a 3-position function, the XB4BJ33 or spring-return XB4BJ53 in the same long-handle line are the choice instead.

Technical Details

Short Description
Harmony XB4 22 mm long handle selector switch, black, 2 positions, stay put, 1NO.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BJ21
Delivery Date (Days)
30 days
Model Number
XB4BJ
Tariff Code
853650
