Part number
XB4BG33
Model no
XB4
$31.25 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB4

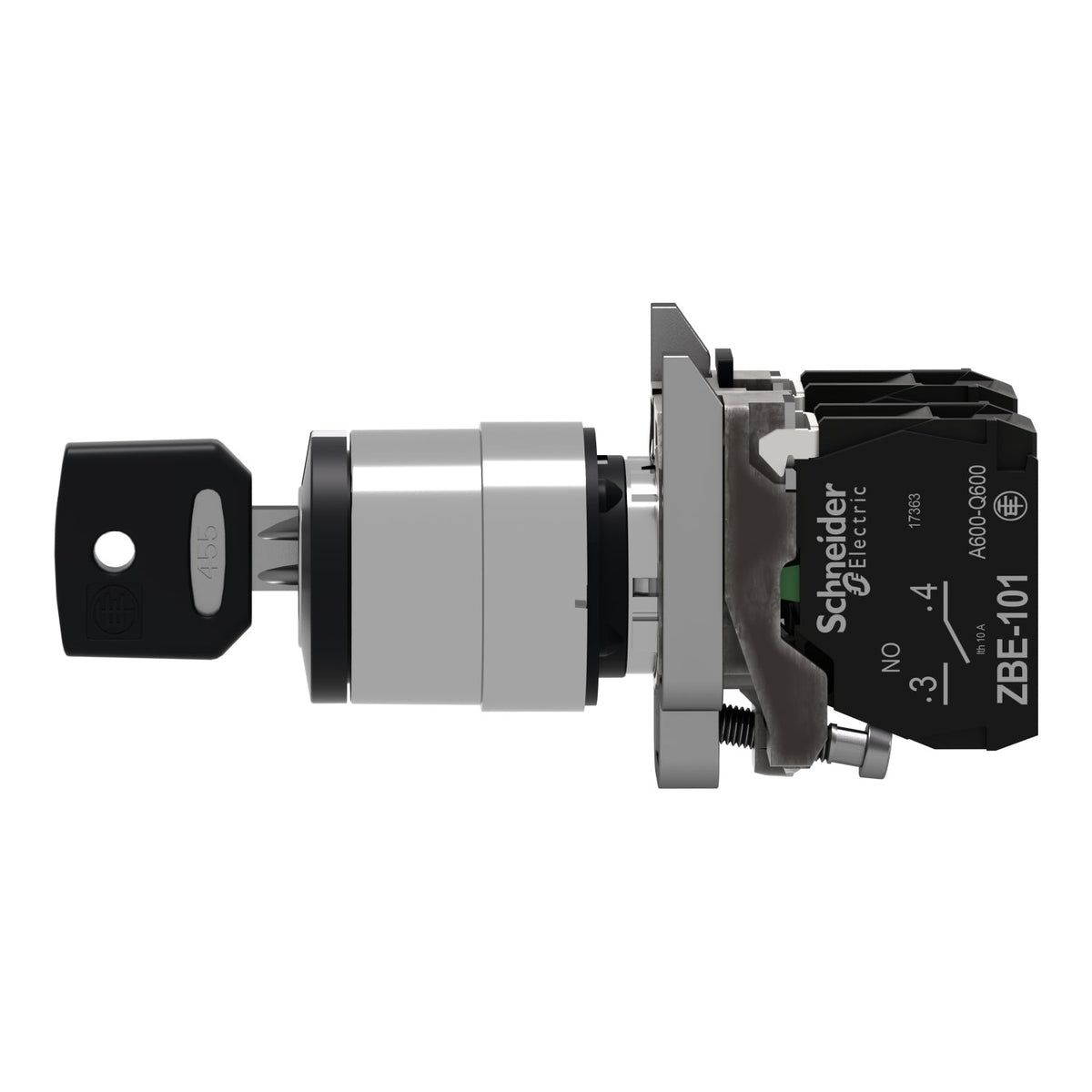

Schneider Electric XB4BG33 Harmony XB4 Key Switch Selector Metal Black Key 455 3-Position 2NO Selector Switch

Harmony XB4 22 mm key switch selector, key 455, 3 positions, stay put, 2NO, centre withdrawal.

Range of Product
Harmony XB4
Product or Component Type
Selector switch
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22.5 mm)
EAN
3389110887150
Description

About the XB4

The Schneider Electric XB4BG33 is a Harmony XB4 22 mm modular key switch selector using key type 455, with 3 positions at plus or minus 45 degrees. It operates on a stay-put mechanism with centre key withdrawal, switches 2 NO contacts rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The key on the XB4BG33 withdraws only at the centre position, which forces an operator to return a 3-mode selector to its neutral state before the key comes out - useful where the neutral position should be the default lockout state. Where any of the 3 positions should allow withdrawal instead, the XB4BG03 in the same range is the correct choice.

Specification

Full specification

63 values · Last verified 30 Oct 2026

Main 15

Range of Product Harmony XB4
Product or Component Type Selector switch
Device short name XB4
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Head type Standard
Shape of signaling unit head Round
Type of operator stay put
Operator profile key switch
Operator position information 3 positions +/- 45°
Contacts type and composition 2 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Complementary 23

Height 1.9 in (47 mm)
Width 1.2 in (30 mm)
Depth 3.4 in (86 mm)
Terminals description ISO n°1 (13-14)NO, (23-24)NO
Net Weight 0.280 lb(US) (0.127 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Type of Keylock Key 455
Key withdrawal position Center
Contacts usage Standard contacts
Positive opening Without
Torque value 1.24 lbf.in (0.14 N.m) NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Device presentation Complete product

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP69, IP69K, IP67
Enclosure Type UL type 4X/13
IK degree of protection IK06 with keyhole cover ZBGP conforming to IEC 50102
Standards CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, UL 508, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1
Product Certifications BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB4BG33
Type designation XB4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110887150

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.127 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB4BG33

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CSA C22.2 No 14
  • IEC 60947-5-4
  • IEC 60947-1
  • IEC 60947-5-5
  • UL 508
  • IEC 60947-5-1
  • JIS C8201-5-1
  • JIS C8201-1
Quick answers

Questions about the XB4

What is the HS code of XB4 for customs?

The tariff (HS) code on file for XB4 is 853650.

What is the EAN of XB4?

The EAN (GTIN) of XB4 is 3389110887150.

Where does XB4 ship from, and how fast?

XB4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
