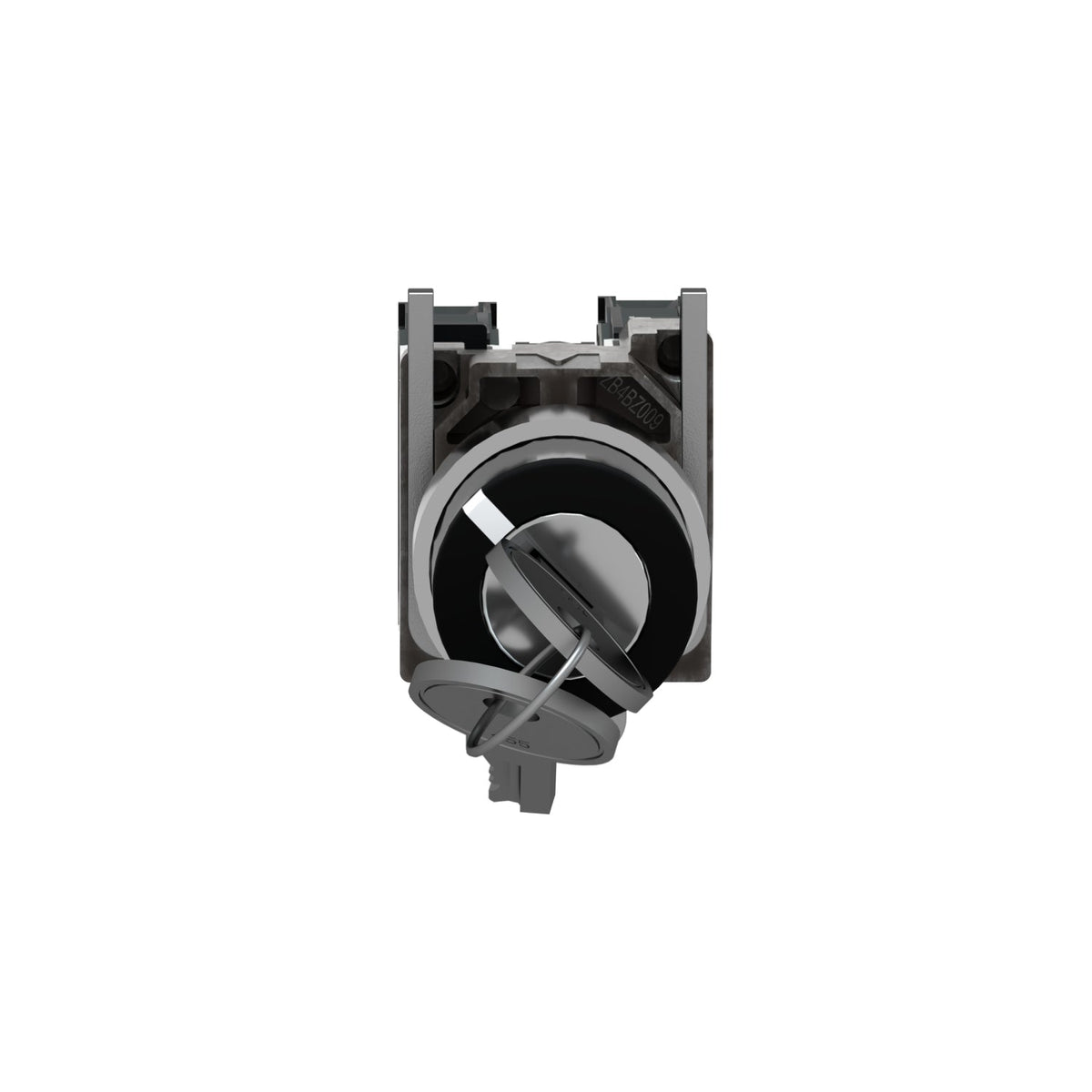

Schneider Electric XB4BG03 Harmony XB4 Key Switch Selector Metal Black Key 455 3-Position 2NO Selector Switch

% $-30.69
Schneider Electric XB4BG03 Harmony XB4 key switch selector key 455 - 2NO
Schneider Electric XB4BG03 Harmony XB4 key switch selector key 455 - 2NO

Schneider Electric XB4BG03 Harmony XB4 Key Switch Selector Metal Black Key 455 3-Position 2NO Selector Switch

Brand: Schneider Electric
Reference No: XB4BG03
Catalog No: XB4BG03
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$30.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BG03 is a Harmony XB4 22 mm modular key switch selector using key type 455, with 3 positions at plus or minus 45 degrees. It operates on a stay-put mechanism, switches 2 NO contacts rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BG03
Brand Schneider Electric
Range Harmony XB4
Product Type Key switch selector
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Stay put
Operator Profile Black key switch, 3 positions at +/- 45 degrees
Key Type Key 455
Key Withdrawal Position In any position
Contacts 2 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06 with keyhole cover ZBGP
Operating Temperature -40...70 C
Net Weight 0.127 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Because the key withdraws in any of the 3 positions, the XB4BG03 suits an application where an authorized operator needs to lock the panel in whichever mode was last selected, not only a single home position. Where the key should only come out at one fixed mode (for example to force the panel back to a safe state), the left-hand-withdrawal XB4BG21 or centre-withdrawal XB4BG33 in the same range are the correct choice instead.

Technical Details

Short Description
Harmony XB4 22 mm key switch selector, key 455, 3 positions, stay put, 2NO, withdraws anywhere.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BG03
Delivery Date (Days)
30 days
Model Number
XB4BG
Tariff Code
853650
