Schneider Electric XB4BD21 Harmony XB4 Metal Black 22 mm 2-Position Stay Put 1NO Selector Switch

% $-11.13

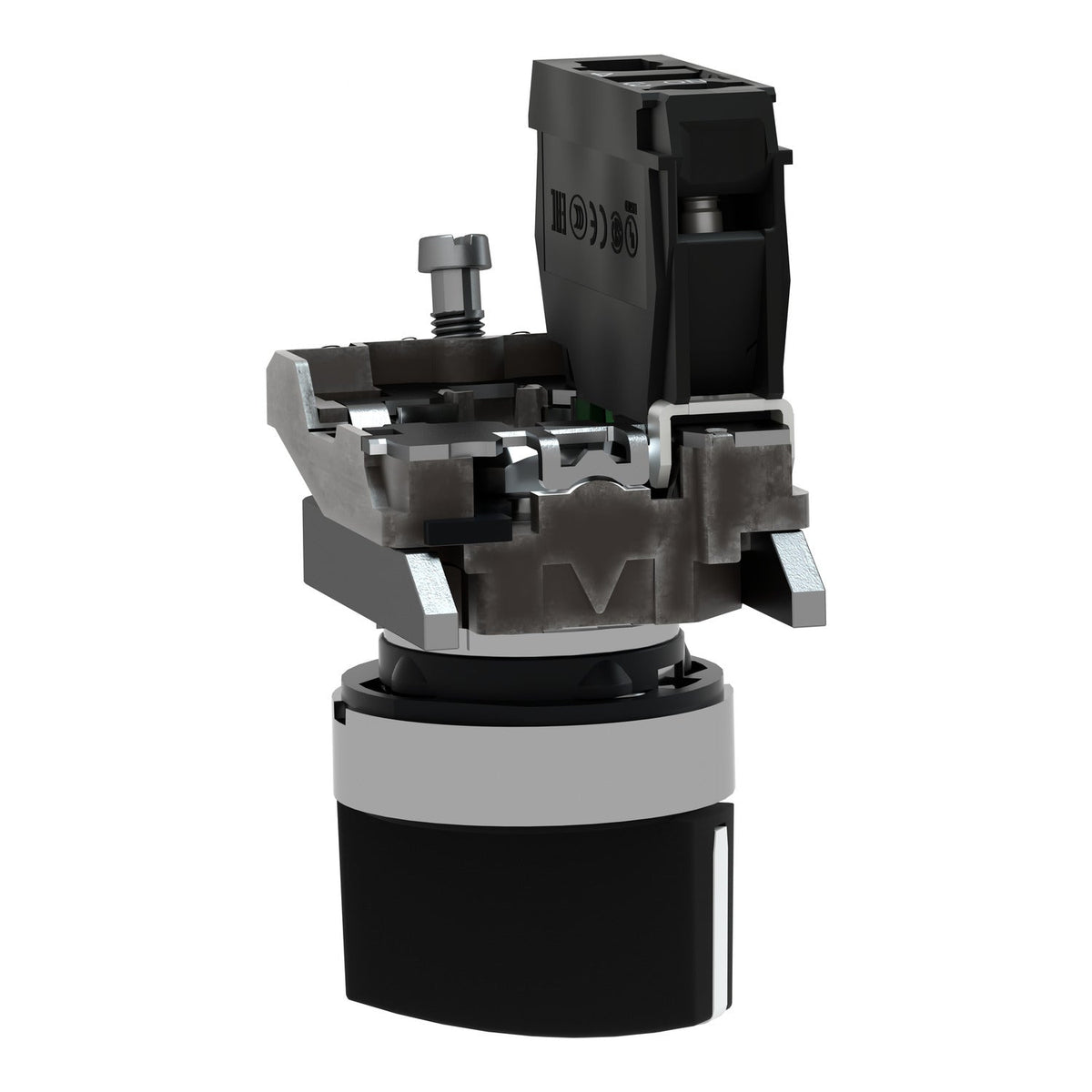

Schneider Electric XB4BD21 Harmony XB4 selector switch black 2-position - 1NO
Schneider Electric XB4BD21 Harmony XB4 selector switch black 2-position - 1NO

Schneider Electric XB4BD21 Harmony XB4 Metal Black 22 mm 2-Position Stay Put 1NO Selector Switch

Brand: Schneider Electric
Reference No: XB4BD21
Catalog No: XB4BD21
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BD21 is a Harmony XB4 22 mm modular selector switch with a black standard handle and 2 positions at 90 degrees apart. It operates on a stay-put mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XB4BD21
Brand Schneider Electric
Range Harmony XB4
Product Type Selector switch
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Stay put
Operator Profile Black standard handle, 2 positions at 90 degrees
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP67 / IP69 / IP69K
Operating Temperature -40...70 C
Net Weight 0.095 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The XB4BD21 gives 2 fixed, stay-put positions for a simple on/off or mode-select function with a single 1 NO contact. Where the application needs an intermediate centre position or a second contact, the 3-position XB4BD33 (stay put) or XB4BD53 (spring return to centre) in the same range are the choice instead of adding a separate selector.

Technical Details

Short Description
Harmony XB4 22 mm selector switch, black handle, 2 positions, stay put, 1NO, 600 V.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BD21
Delivery Date (Days)
30 days
Model Number
XB4BD
Tariff Code
853650
