Part number
XB4BC21
Model no
XB4
$13.28 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB4

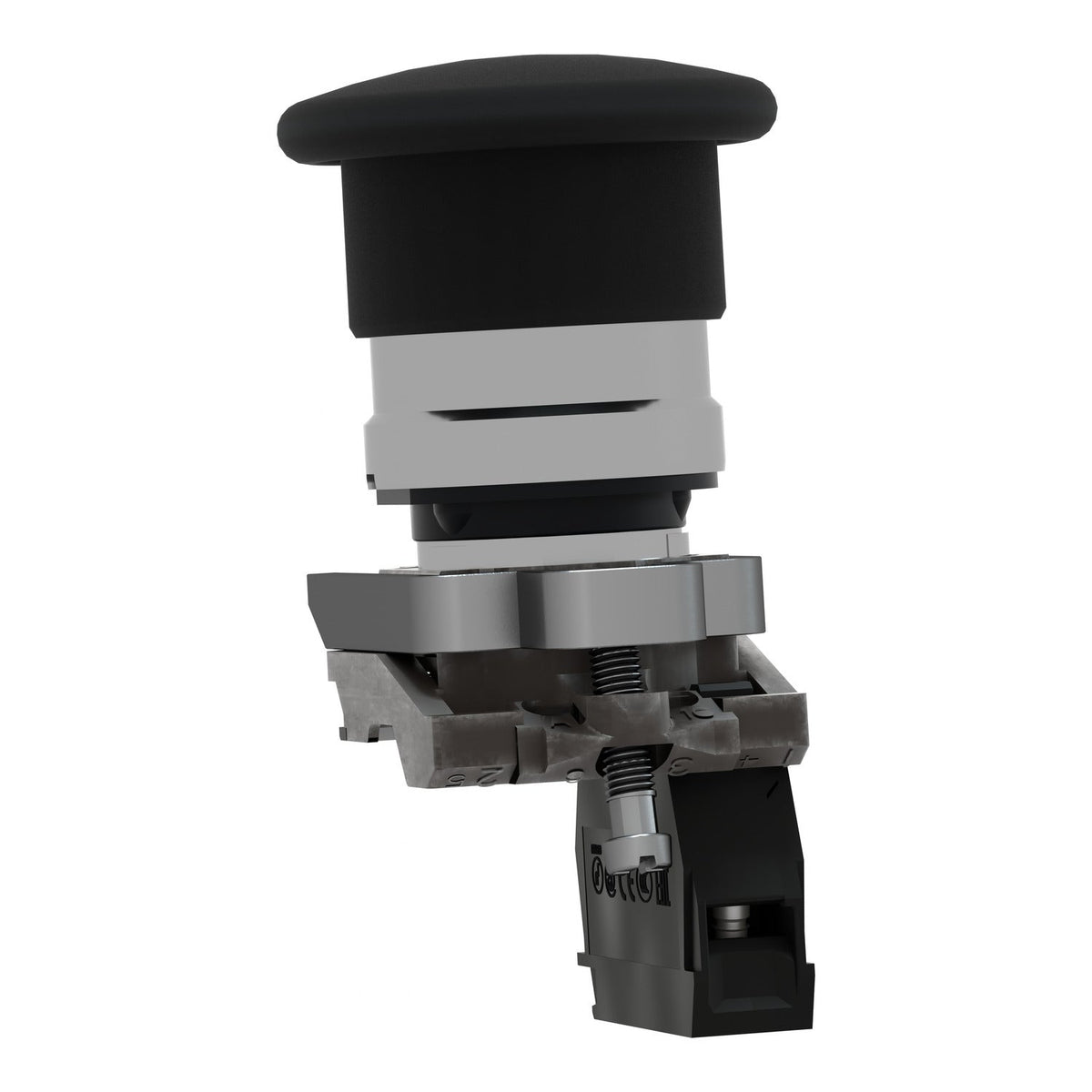

Schneider Electric XB4BC21 Harmony XB4 Metal Black Mushroom 40 mm 22 mm Spring Return 1NO Push Button

Harmony XB4 push button, black 40 mm mushroom head, spring return, 1NO, IP69K.

Range of Product
Harmony XB4
Device short name
XB4
Product or Component Type
Push-button
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22.5 mm)
EAN
3389110118865
Description

About the XB4

The Schneider Electric XB4BC21 is a Harmony XB4 push button with a black 40 mm mushroom head, unmarked, mounted on a 22.5 mm metal body. It operates on a spring return mechanism, not a latching one, switches 1 NO contact rated 10 A Ith, and installs into a standard 22.5 mm panel cut-out with screw-clamp terminals.

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The 40 mm mushroom head on the XB4BC21 gives a larger strike target than the standard round flush operators in the XB4 range, useful where an operator needs to hit the button quickly without precise aim. Because it is spring return, not stay-put/latching, it does not serve as an emergency stop - a panel needing a fail-safe latching stop should specify a dedicated emergency-stop mushroom variant with a 1 NC contact instead.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 14

Range of Product Harmony XB4
Device short name XB4
Product or Component Type Push-button
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator spring return
Operator profile Black mushroom Ø 40 mm, unmarked
Head type Standard
Contacts type and composition 1 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Complementary 21

Height 1.8 in (46.5 mm)
Width 1.6 in (40 mm)
Depth 3.2 in (81.5 mm)
Net Weight 0.269 lb(US) (0.122 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage Standard contacts
Positive opening Without
Operating travel 0.1 in (2.6 mm) NO changing electrical state), 0.2 in (4.3 mm) total travel)
Operating force 3.8 N NO changing electrical state
Mechanical durability 5000000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Device presentation Complete product

Environment 11

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP69, IP69K
Enclosure Type UL type 4X/13
IK degree of protection IK06 conforming to IEC 50102
Standards IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-5, UL 508, JIS C8201-5-1, IEC 60947-5-4, JIS C8201-1
Product Certifications CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB4BC21
Type designation XB4
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110118865

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.122 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB4BC21

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • IEC 60947-5-5
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-4
  • JIS C8201-1
Quick answers

Questions about the XB4

What is the HS code of XB4 for customs?

The tariff (HS) code on file for XB4 is 853650.

What is the EAN of XB4?

The EAN (GTIN) of XB4 is 3389110118865.

Where does XB4 ship from, and how fast?

XB4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
