Schneider Electric XB4BA731327 Harmony XB4 Triple-Headed Metal Green I Red STOP Green II 2NO+1NC Push Button

% $-33.55

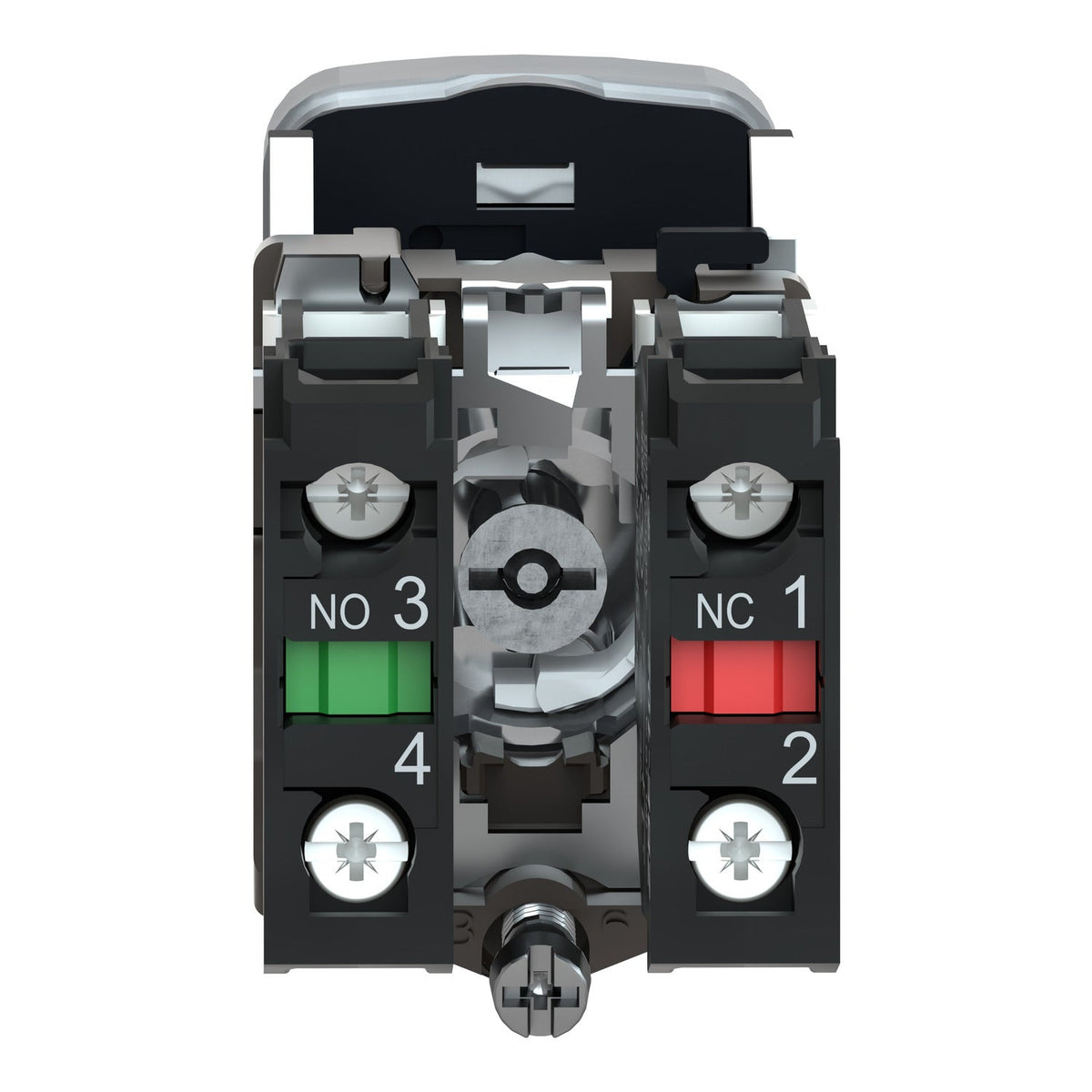

Schneider Electric XB4BA731327 Harmony XB4 triple push button green I STOP green II
Schneider Electric XB4BA731327 Harmony XB4 triple push button green I STOP green II

Schneider Electric XB4BA731327 Harmony XB4 Triple-Headed Metal Green I Red STOP Green II 2NO+1NC Push Button

Brand: Schneider Electric
Reference No: XB4BA731327
Catalog No: XB4BA731327
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$33.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA731327 is a Harmony XB4 triple-headed push button combining a flush green button marked I, a central projecting red STOP button, and a flush green button marked II, in one metal assembly. The three operators switch 2 NO + 1 NC combined, and the unit installs into a single 22.5 mm panel cut-out with screw-clamp or spring terminals.

Technical Specifications

SKU XB4BA731327
Brand Schneider Electric
Range Harmony XB4
Product Type Triple-headed push-button
Bezel Material Chromium plated metal
Mounting Diameter 22.5 mm
Head Shape Rectangular, 2 flush + 1 central projecting STOP
Operator Markings Green flush, I (white) - Red projecting, STOP (white) - Green flush, II (white)
Contacts 2 NO + 1 NC, slow-break
Positive Opening With, per IEC 60947-5-1 appendix K
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
Connections Screw clamp or spring terminals
IP Degree of Protection IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -25...70 C
Net Weight 0.128 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Two green NO buttons marked I and II with a central red STOP suit a two-speed or two-direction start control (for example low/high or forward/reverse) that still needs a dedicated stop in the same 22.5 mm cut-out, unlike the single-NO-pair XB4BA711237 sibling built for a jog-and-stop function. Wire the STOP head to the 1 NC contact for a fail-safe stop circuit, with the I and II buttons carrying the 2 NO start commands.

Technical Details

Short Description
Harmony XB4 triple push button, green I/II + red STOP, 2NO+1NC, single cut-out.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA731327
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
