Schneider Electric XB4BA711237 Triple-Headed White Right Arrow Black Left Arrow Red STOP 1NO+1NC Push Button

% $-33.55
Schneider Electric XB4BA711237 Harmony XB4 triple push button white black red STOP
Schneider Electric XB4BA711237 Harmony XB4 triple push button white black red STOP

Schneider Electric XB4BA711237 Triple-Headed White Right Arrow Black Left Arrow Red STOP 1NO+1NC Push Button

Brand: Schneider Electric
Reference No: XB4BA711237
Catalog No: XB4BA711237
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$33.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

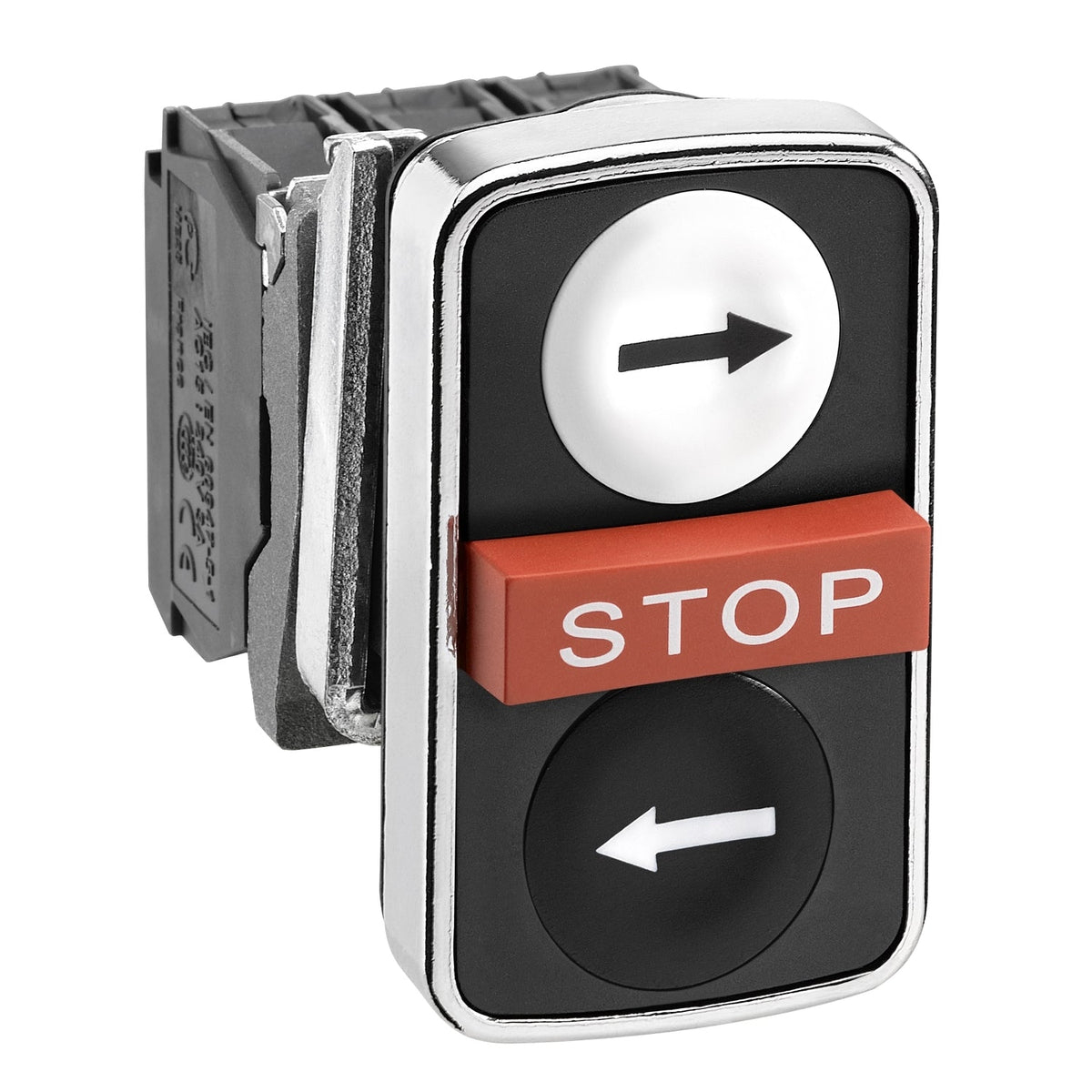

The Schneider Electric XB4BA711237 is a Harmony XB4 triple-headed push button combining a flush white button marked with a right arrow, a flush black button marked with a left arrow, and a central projecting red STOP button, in one metal assembly. The three operators switch 1 NO + 1 NC combined, and the unit installs into a single 22.5 mm panel cut-out with screw-clamp or spring terminals.

Technical Specifications

SKU XB4BA711237
Brand Schneider Electric
Range Harmony XB4
Product Type Triple-headed push-button
Bezel Material Chromium plated metal
Mounting Diameter 22.5 mm
Head Shape Rectangular, 2 flush + 1 central projecting STOP
Operator Markings White flush, right arrow (black) - Black flush, left arrow (white) - Red projecting, STOP (white)
Contacts 1 NO + 1 NC, slow-break
Positive Opening With, per IEC 60947-5-1 appendix K
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
Connections Screw clamp or spring terminals
IP Degree of Protection IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -25...70 C
Net Weight 0.128 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Combining right-arrow, left-arrow and STOP in one 22.5 mm cut-out lets a panel builder fit a bidirectional jog control plus a dedicated stop without three separate holes, which matters on compact door layouts. The 1 NO + 1 NC contact split means the STOP head should be wired to the 1 NC side for a fail-safe stop circuit, with the arrow buttons carrying the NO jog commands.

Technical Details

Short Description
Harmony XB4 triple push button, white/black arrows + red STOP, 1NO+1NC, single cut-out.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA711237
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
