Schneider Electric XB4BA51 Harmony XB4 Push Button Metal Flush Yellow 22 mm Spring Return 1NO Push Button

% $-7.83
Schneider Electric XB4BA51 Harmony XB4 push button yellow flush - 1NO
Schneider Electric XB4BA51 Harmony XB4 push button yellow flush - 1NO

Schneider Electric XB4BA51 Harmony XB4 Push Button Metal Flush Yellow 22 mm Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB4BA51
Catalog No: XB4BA51
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7.83

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

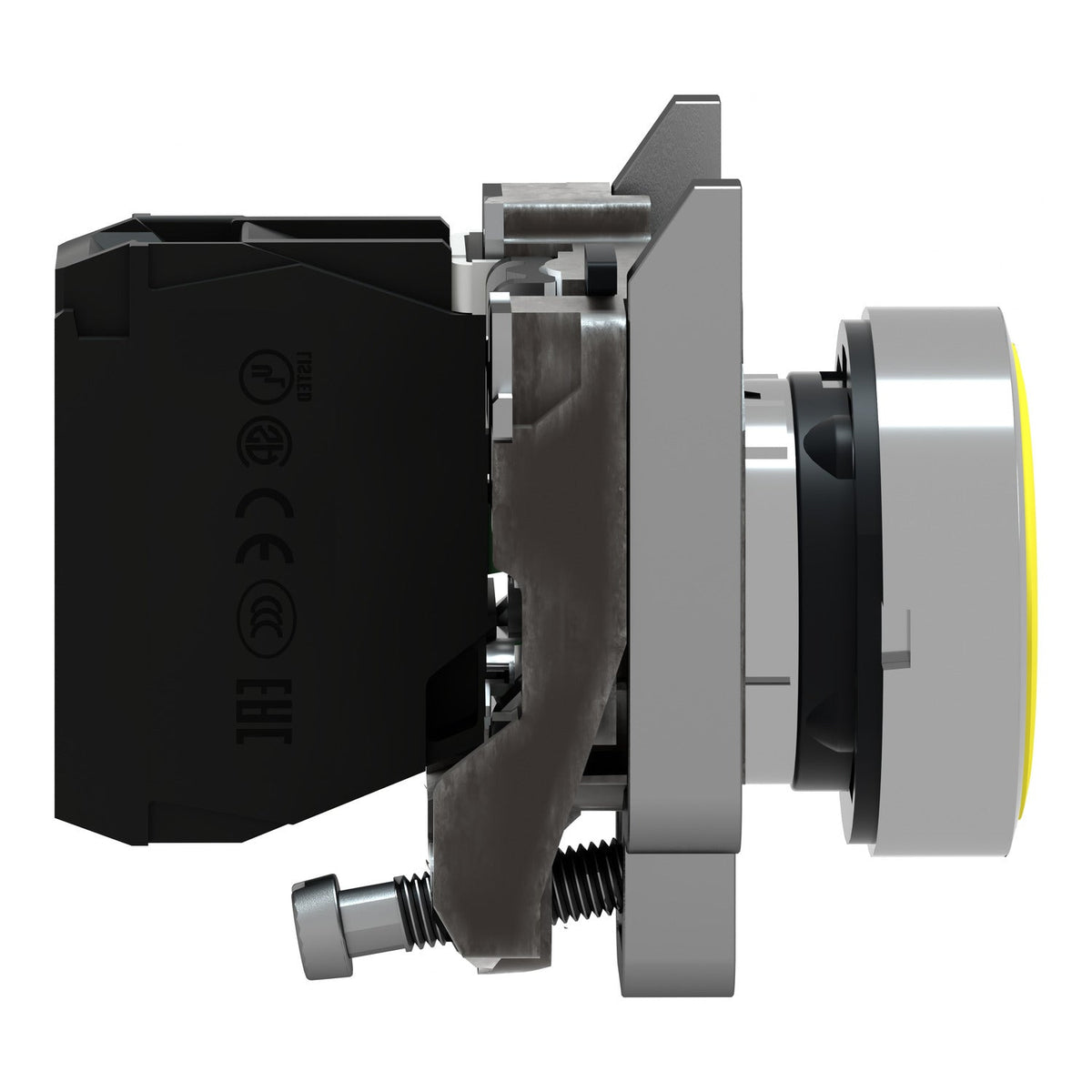

The Schneider Electric XB4BA51 is a Harmony XB4 22 mm modular push button with a yellow flush metal operator, unmarked. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA51
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Yellow flush, unmarked
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Yellow is reserved on most panels for a caution, reset or manual-override function distinct from the green-run and red-stop pair; the unmarked XB4BA51 fits that role directly. Where the legend needs an explicit symbol instead of relying on colour alone, pick a marked variant in the same bezel and contact configuration from the XB4 range.

Technical Details

Short Description
Harmony XB4 22 mm push button, yellow flush metal, unmarked, spring return, 1NO, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA51
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
