Schneider Electric XB4BA4322 Harmony XB4 Metal Flush Red Marked O 22 mm Spring Return 1NC Push Button

% $-8.57

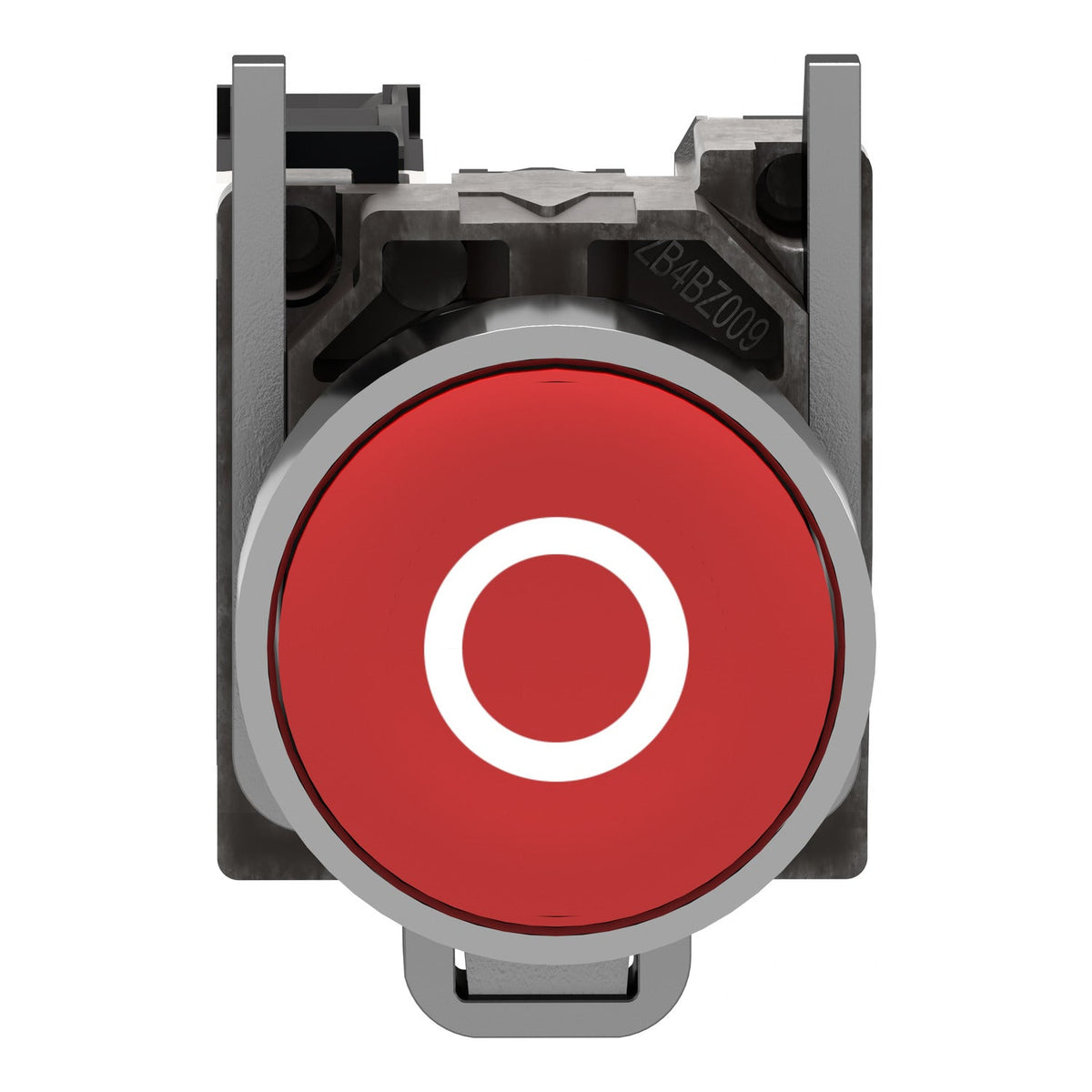

Schneider Electric XB4BA4322 Harmony XB4 push button red marked O - 1NC
Schneider Electric XB4BA4322 Harmony XB4 push button red marked O - 1NC

Schneider Electric XB4BA4322 Harmony XB4 Metal Flush Red Marked O 22 mm Spring Return 1NC Push Button

Brand: Schneider Electric
Reference No: XB4BA4322
Catalog No: XB4BA4322
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA4322 is a Harmony XB4 22 mm modular push button with a red flush metal operator marked with the symbol O. It operates on a spring return mechanism, switches 1 NC contact with positive opening rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA4322
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Red flush, marked O (white)
Contacts 1 NC, slow-break
Positive Opening With, per IEC 60947-5-1 appendix K
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Marking the red 1 NC operator with O makes the stop function explicit on the panel legend, which matters where red colour coding alone is ambiguous between a stop and an emergency function. The unmarked XB4BA42 in the same red bezel and 1 NC contact is the lower-cost choice where the panel layout already makes the stop function unambiguous without a printed symbol.

Technical Details

Short Description
Harmony XB4 22 mm push button, red flush metal marked O, spring return, 1NC, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA4322
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
