Schneider Electric XB4BA3341 Harmony XB4 Metal Flush White Marked Up Arrow 22 mm Spring Return 1NO Push Button

% $-8.57

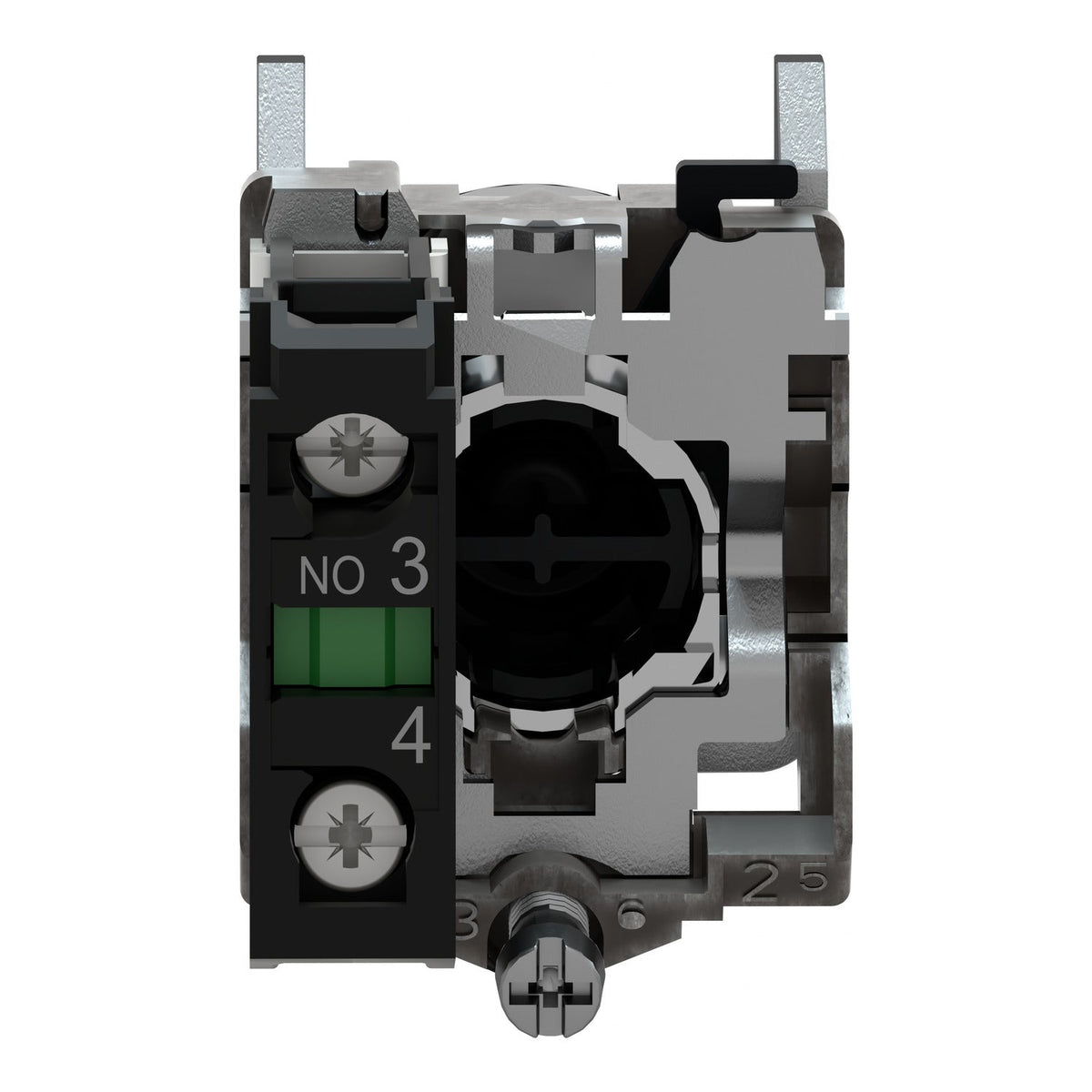

Schneider Electric XB4BA3341 Harmony XB4 push button white up arrow - 1NO
Schneider Electric XB4BA3341 Harmony XB4 push button white up arrow - 1NO

Schneider Electric XB4BA3341 Harmony XB4 Metal Flush White Marked Up Arrow 22 mm Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB4BA3341
Catalog No: XB4BA3341
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA3341 is a Harmony XB4 22 mm modular push button with a white flush metal operator marked with an up arrow. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA3341
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile White flush, marked up arrow (black)
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

The white flush operator marked with an up arrow is typically wired as a jog-up or raise command on conveyors and hoists. Pair it with the down-arrow XB4BA3351 in the same range to form a complete raise/lower control pair, keeping the arrow symbol as the operator's primary visual cue rather than relying on bezel colour.

Technical Details

Short Description
Harmony XB4 22 mm push button, white flush metal marked up arrow, spring return, 1NO, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA3341
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
