Schneider Electric XB4BA3311 Harmony XB4 Metal Flush Green Marked I 22 mm Spring Return 1NO Push Button

% $-8.57

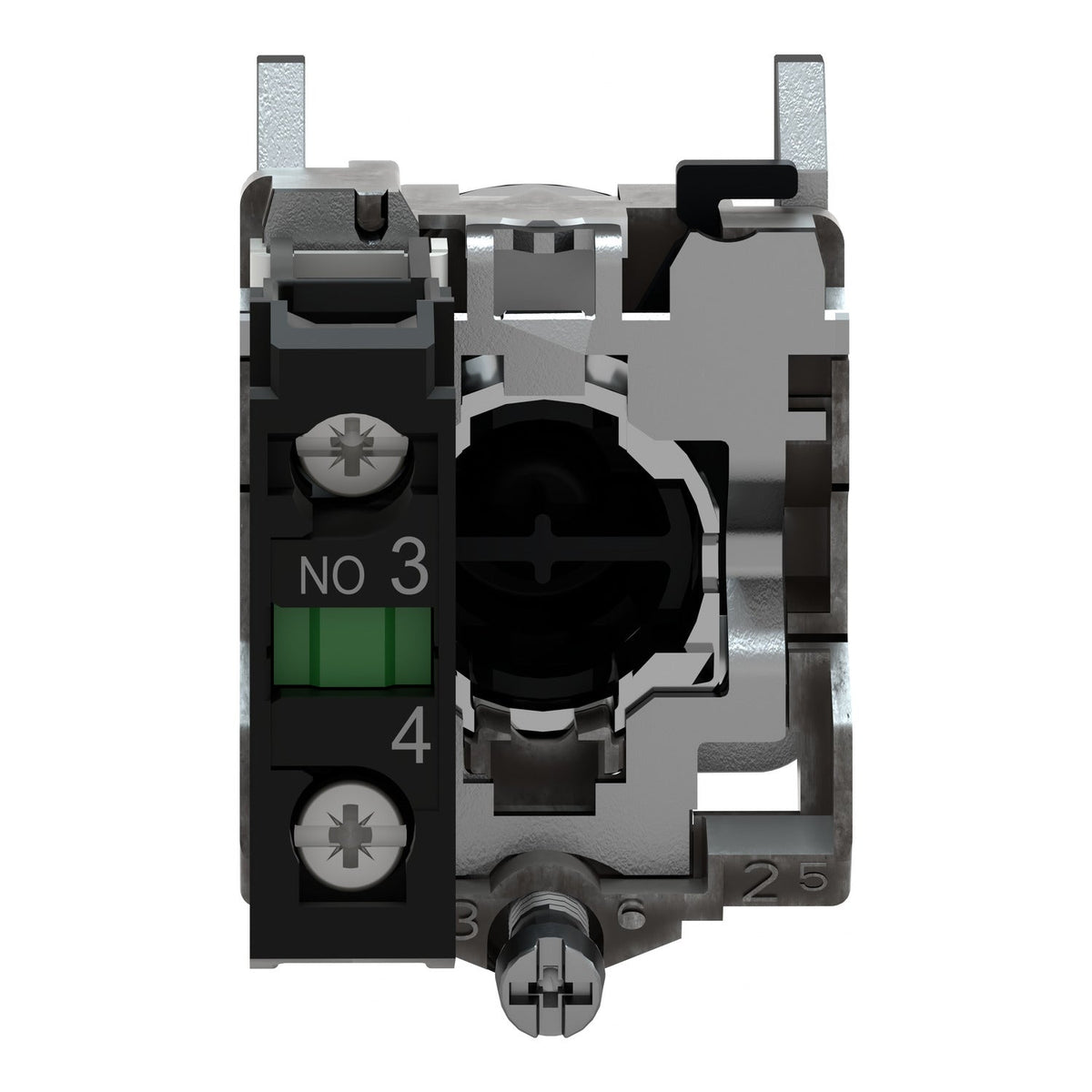

Schneider Electric XB4BA3311 Harmony XB4 push button green marked I - 1NO
Schneider Electric XB4BA3311 Harmony XB4 push button green marked I - 1NO

Schneider Electric XB4BA3311 Harmony XB4 Metal Flush Green Marked I 22 mm Spring Return 1NO Push Button

Brand: Schneider Electric
Reference No: XB4BA3311
Catalog No: XB4BA3311
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4BA3311 is a Harmony XB4 22 mm modular push button with a green flush metal operator marked with the symbol I. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU XB4BA3311
Brand Schneider Electric
Range Harmony XB4
Product Type Push-button
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 22.5 mm
Operator Type Spring return
Operator Profile Green flush, marked I (white)
Contacts 1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection 10 A gG cartridge fuse
Contact Material Silver alloy (Ag/Ni)
IP Degree of Protection IP66 / IP67 / IP69 / IP69K
IK Degree of Protection IK06
Operating Temperature -40...70 C
Net Weight 0.08 kg

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • DNV
  • BV

Selection Notes

Marking the green flush operator with I gives an unambiguous start command even where colour recognition alone is unreliable, such as poor lighting or colour-vision-impaired operators. The unmarked XB4BA31 in the same green bezel is the lower-cost choice where the panel layout already makes the function obvious without a printed symbol.

Technical Details

Short Description
Harmony XB4 22 mm push button, green flush metal marked I, spring return, 1NO, IP69K.
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP69K
Catalog No
XB4BA3311
Delivery Date (Days)
30 days
Model Number
XB4BA
Tariff Code
853650
