Schneider Electric XB4BA31 Harmony XB4 push button green flush - 1NO

Schneider Electric XB4BA31 Harmony XB4 Push Button Metal Flush Green 22 mm Spring Return 1NO Push Button

Name: Schneider Electric XB4BA31 Harmony XB4 Push Button Metal Flush Green 22 mm Spring Return 1NO Push Button
Brand: Schneider Electric
SKU: XB4BA31
Price: 7.83 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XB4BA31

Catalog No: XB4BA31

Series: Harmony XB4

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$7.83

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

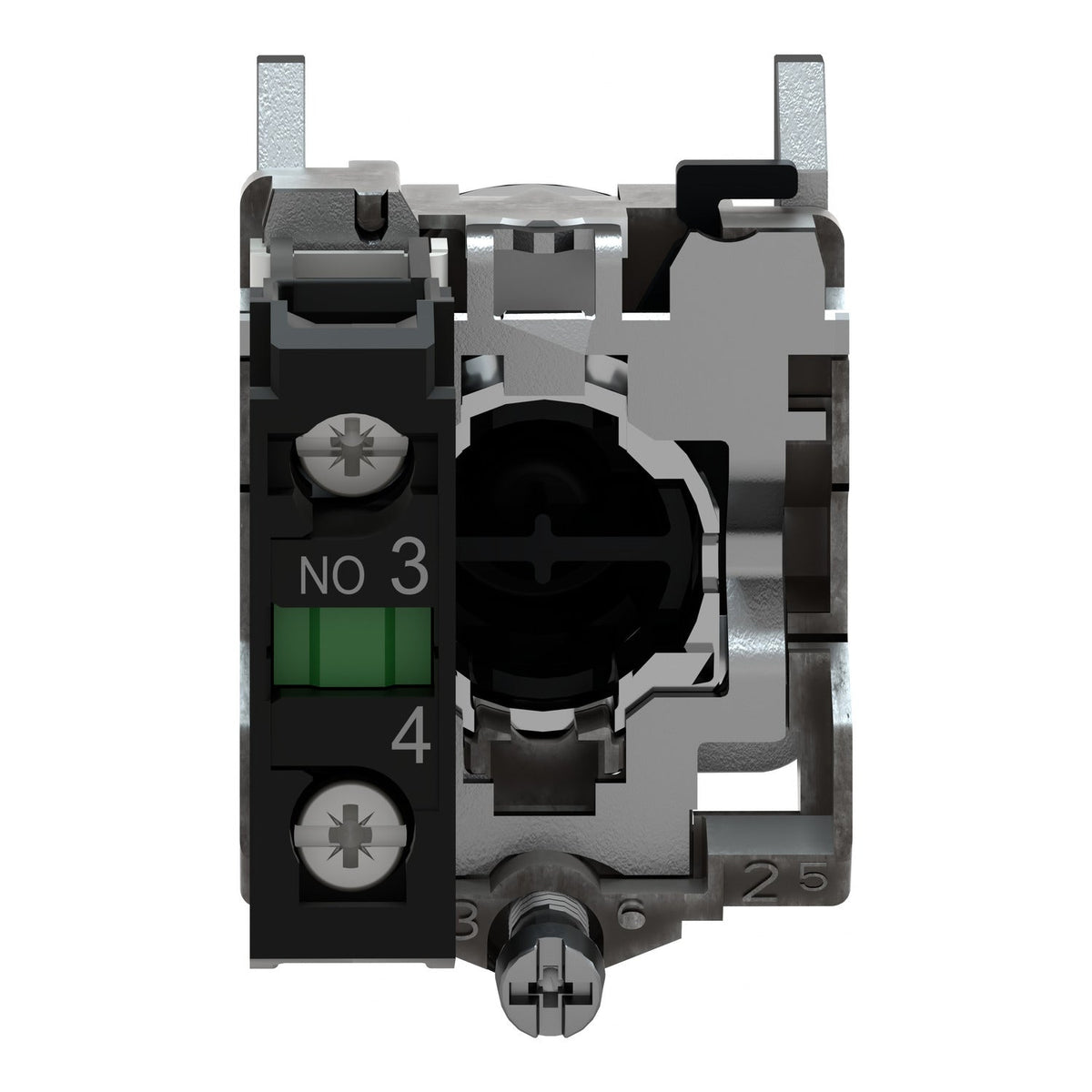

The Schneider Electric XB4BA31 is a Harmony XB4 22 mm modular push button with a green flush metal operator, unmarked. It operates on a spring return mechanism, switches 1 NO contact rated 10 A Ith, and mounts into a standard 22.5 mm panel cut-out with screw-clamp terminals. The sealed metal body is rated up to IP69K for washdown environments.

Technical Specifications

SKU	XB4BA31
Brand	Schneider Electric
Range	Harmony XB4
Product Type	Push-button
Bezel Material	Chromium plated metal
Fixing Collar Material	Zamak
Mounting Diameter	22.5 mm
Operator Type	Spring return
Operator Profile	Green flush, unmarked
Contacts	1 NO, slow-break
Rated Insulation / Impulse Withstand Voltage	600 V / 6 kV
Conventional Thermal Current (Ith)	10 A
Rated Operational Current (Ie)	3 A at 240 V / 6 A at 120 V, AC-15
Short-circuit Protection	10 A gG cartridge fuse
Contact Material	Silver alloy (Ag/Ni)
IP Degree of Protection	IP66 / IP67 / IP69 / IP69K
IK Degree of Protection	IK06
Operating Temperature	-40...70 C
Net Weight	0.08 kg

Certifications & Standards

IEC 60947-5-1
UL 508
CSA C22.2 No 14
DNV
BV

Selection Notes

The green flush XB4BA31 follows the common convention for a start or run function on a control panel. Pick the unmarked black XB4BA21 for a neutral auxiliary button, or the marked green XB4BA3311 in the same range where the panel legend needs an explicit I symbol rather than colour alone to identify the function.

Technical Details

Short Description

Harmony XB4 22 mm push button, green flush metal, unmarked, spring return, 1NO, IP69K.

Mounting Type

Panel mount, 22.5 mm cut-out

Protection Type

IP69K

Catalog No

XB4BA31

Delivery Date (Days)

30 days

Model Number

XB4BA

Tariff Code

853650
