Schneider Electric XA2EW7L3741M5 Double-Headed Green I Red O White Pilot Light 220 V AC Push Button

% $-11.06

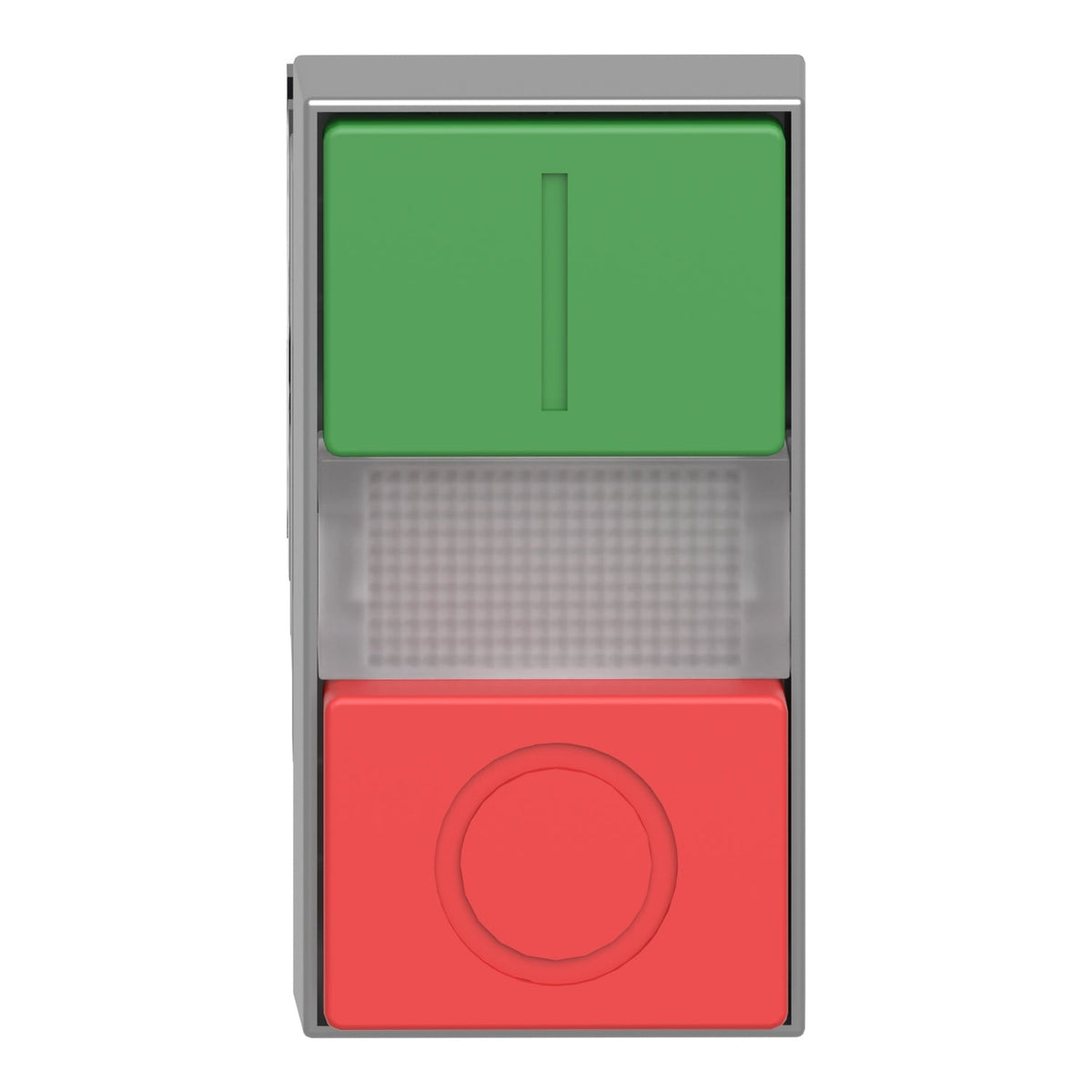

Schneider Electric XA2EW7L3741M5 double push button green I red O - 220 V AC
Schneider Electric XA2EW7L3741M5 double push button green I red O - 220 V AC

Schneider Electric XA2EW7L3741M5 Double-Headed Green I Red O White Pilot Light 220 V AC Push Button

Brand: Schneider Electric
Reference No: XA2EW7L3741M5
Catalog No: XA2EW7L3741M5
Series: Harmony XA2
Tariff Code (HS): 853650
Rated Voltage: 220...230 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.06

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2EW7L3741M5 is a Harmony XA2 double-headed push button combining a flush green button marked I with a flush red button marked O, plus a built-in white pilot light block running on 220 V AC. It switches 1 NO + 1 NC across the two heads, carries an IP40 rating, and installs into a single 22.5 mm panel cut-out with screw-clamp terminals.

Technical Specifications

SKU XA2EW7L3741M5
Brand Schneider Electric
Range Easy Harmony XA2
Product Type Double-headed illuminated push button
Operator Material Plastic
Mounting Diameter 22.5 mm
Operator Markings Green flush, marked I - Red flush, marked O
Contacts 1 NO + 1 NC, slow-break
Mechanical Durability 500,000 cycles
Rated Insulation / Impulse Withstand Voltage 600 V / 6 kV
Conventional Thermal Current (Ith) 10 A
Rated Operational Current (Ie) 3 A at 240 V, AC-15
Light Source Protected LED, white, integral
Rated Supply Voltage (Us) 220...230 V AC, 50/60 Hz
Current Consumption 20 mA
Service Life (Lamp) 10,000 h
IP Degree of Protection IP40
IK Degree of Protection IK05
Net Weight 0.072 kg

Certifications & Standards

  • CE
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

The XA2EW7L3741M5 pairs two independently actuated heads, 1 NO + 1 NC in total, with a single panel cut-out, so one unit drives a start/stop function with built-in illuminated feedback instead of mounting two separate heads and a pilot light. Choosing the 220 V AC version over the 24 V AC/DC XA2EW7L3741B5 sibling lets the pilot light run directly off a mains-derived control circuit rather than a stepped-down 24 V supply.

Technical Details

Short Description
Harmony XA2 double push button, flush green I / red O, white pilot light, 220 V AC, IP40.
Rated Voltage (VAC)
220...230 V AC
Mounting Type
Panel mount, 22.5 mm cut-out
Protection Type
IP40
Catalog No
XA2EW7L3741M5
Delivery Date (Days)
30 days
Model Number
XA2
Tariff Code
853650
