- Part number
- XA2EW7L3741B5
- Model no
- XA2
Description
About the XA2
About the XA2

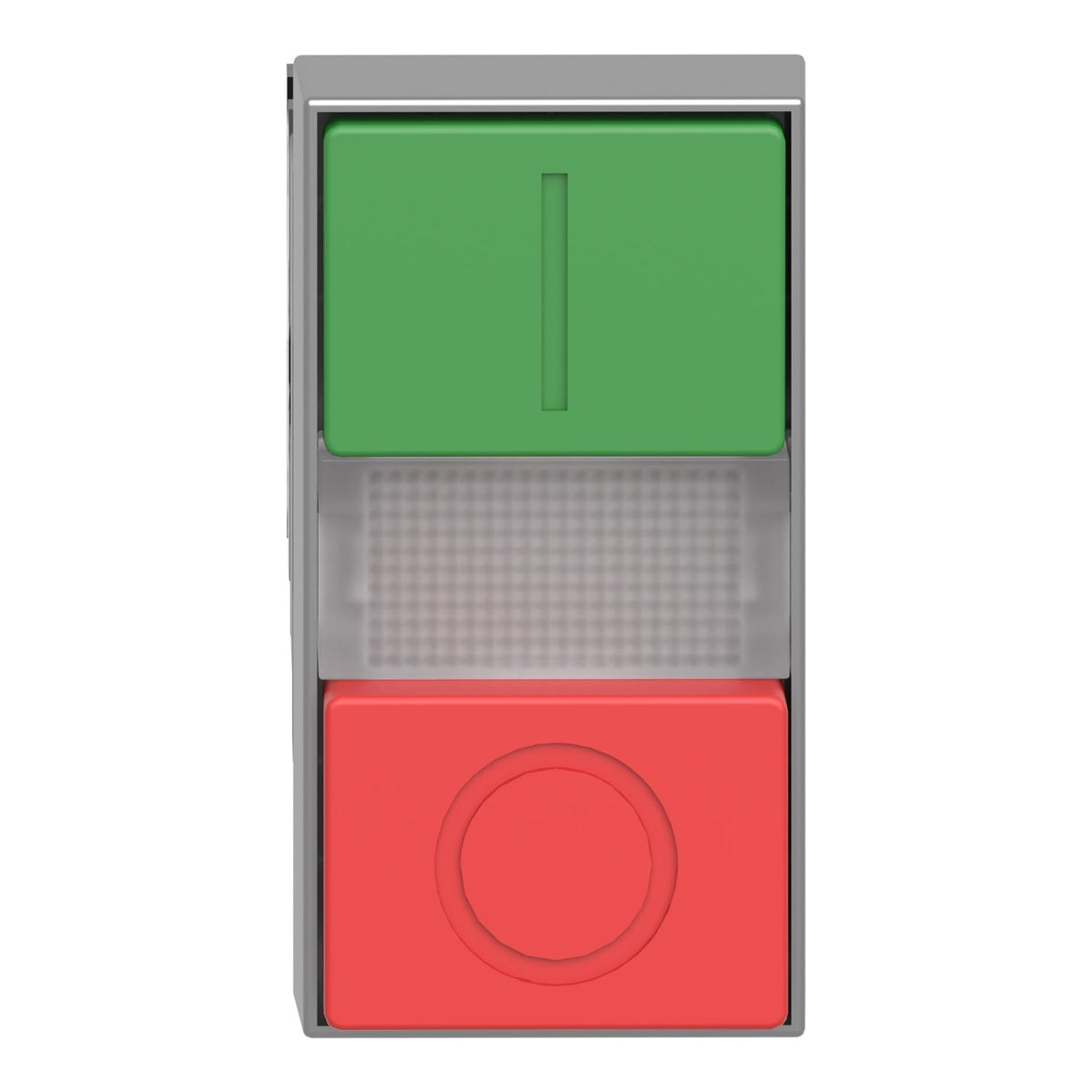

The Schneider Electric XA2EW7L3741B5 is a Harmony XA2 double-headed push button combining a flush green button marked I with a flush red button marked O, plus a built-in white pilot light block running on 24 V AC/DC. It switches 1 NO + 1 NC across the two heads, carries an IP40 rating, and installs into a single 22.5 mm panel cut-out with screw-clamp terminals.
Certifications & Standards
- CE
- CCC
- EAC
- IEC 60947-5-1
Selection Notes
The XA2EW7L3741B5 pairs two independently actuated heads, 1 NO + 1 NC in total, with a single panel cut-out, so one unit drives a start/stop function with built-in illuminated feedback instead of mounting two separate heads and a pilot light. Choosing the 24 V AC/DC version over the 220 V AC XA2EW7L3741M5 sibling keeps the pilot light on the same low-voltage control supply as PLC I/O, avoiding a mixed-voltage panel.
Specification
Full specification
Main 7
| Range of product | Harmony XA2 |
|---|---|
| Product or component type | Complete illuminated double-headed push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Light source colour | White |
| Device presentation | Complete product |
Complementary 34
| Mounting diameter | 22.5 mm |
|---|---|
| Shape of signaling unit head | Rectangular |
| Type of operator | spring return |
| Operator profile | Green flush, I (green), Red flush, O (red) |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.75 mm (NC changing electrical state), 2.65 mm (NO changing electrical state) |
| Mechanical durability | 500000 cycles |
| Connections - terminals | Screw clamp terminals, <= 1 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, Screw clamp terminals, >= 1 x 0.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Signalling type | Steady |
| Light source | Protected LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Supply voltage limits | 0.8…1.2 V AC/DC |
| Current consumption | 20 mA |
| Service life | 10000 h |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Terminals description ISO n°1 | (13-14)NO, (11-12)NC |
| Width | 29.8 mm |
| Height | 81.3 mm |
| Depth | 55.4 mm |
| Net weight | 0.072 kg |
| Cap/operator or lens colour | Green + red |
Environment 9
| Ambient air temperature for storage | -40…85 °C |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-1, GB 14048.1, GB 14048.5 |
| Product certifications | CCC, EAC, CE |
| Vibration resistance | 15 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 80 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2EW7L3741B5 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.13 cm |
| Package 1 Width | 2.98 cm |
| Package 1 Length | 5.54 cm |
| Package 1 Weight | 72.1 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 95 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 97 kg |
| Shipping weight | 0.072 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XA2EW7L3741B5
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CCC
- EAC
- IEC 60947-5-1
- GB 14048.1
- GB 14048.5
Quick answers
Questions about the XA2
Which supply voltage is XA2 rated for?
The rated operational voltage of XA2 is 24–DC V DC.
What is the HS code of XA2 for customs?
The tariff (HS) code on file for XA2 is 853650.
Where does XA2 ship from, and how fast?
XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
