Harmony XA2

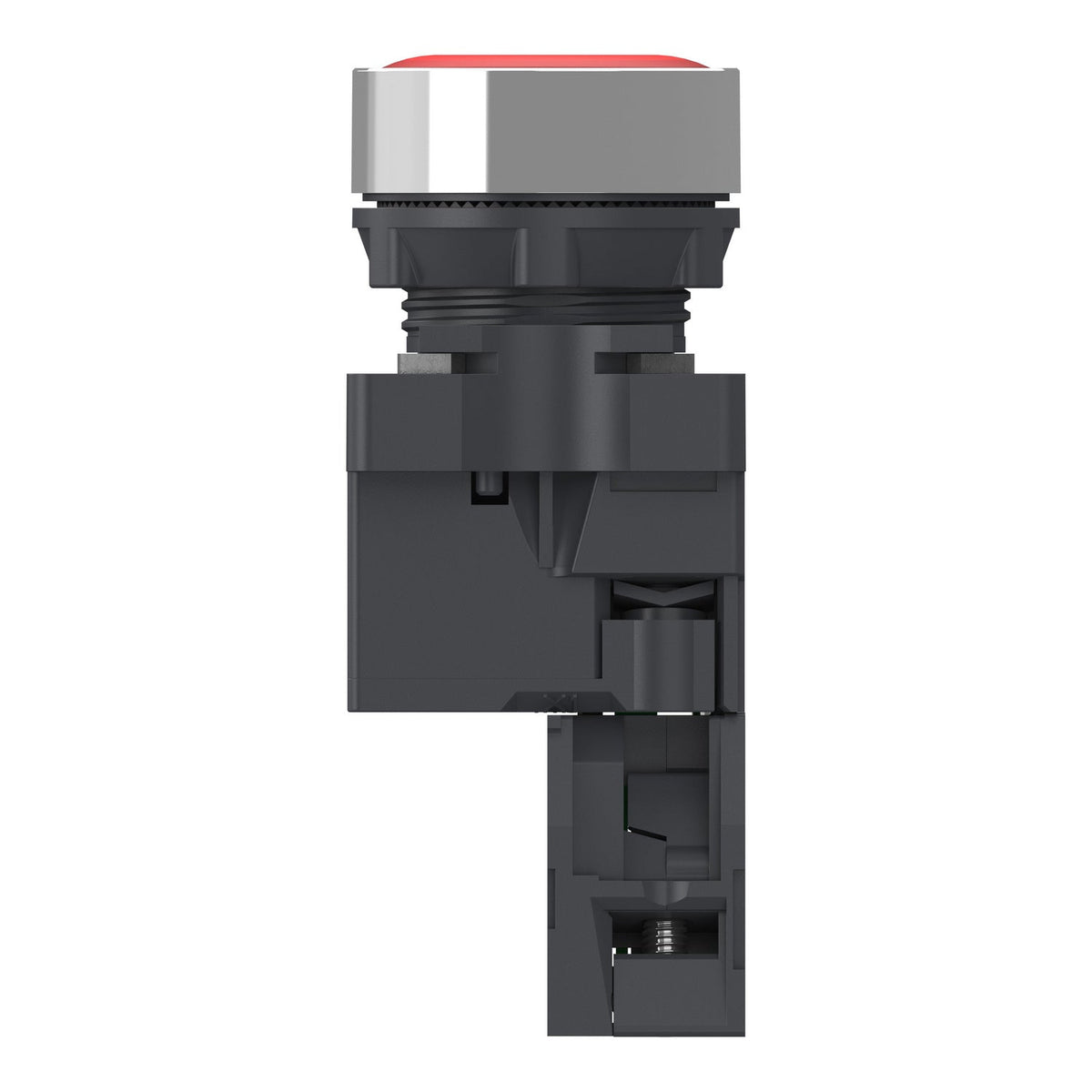

Schneider Electric XA2AW34M1 Easy Harmony XA2 Illuminated Push Button Red Flush 22 mm 220 V AC 1NO Push Button

Easy Harmony XA2 illuminated push button, red, 220V AC, spring return, 1NO, IP65.

Rated operational voltage
220–230 V AC
Description

About the XA2

The Schneider Electric XA2AW34M1 is an Easy Harmony XA2 complete illuminated push button with a red flush head and an integral LED supplied at 220...230 V AC. It returns by spring after release, switches 1 NO contact through slow-break operation, and mounts in a 22.5 mm panel cutout sealed to IP65.

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

This variant pairs a red cap, the IEC 60204-1 colour for stop or caution signalling, with a 1 NO (make) contact rather than the 1 NC typically used for stop commands - so it suits illuminated status indication paired with a separate command button rather than a direct interrupting function. The 220...230 V AC LED supply runs off mains-derived control wiring instead of a dedicated 24 V rail, the main reason to pick this over XA2AW34B1. For a genuine stop contact on this same red, 220 V body, choose the 1 NC XA2AW34M2 variant instead.

Specification

Full specification

78 values · Last verified 30 Oct 2026

Main 8

Range of product Harmony XA2
Device short name XA2
Product or component type Complete illuminated push-button
Device presentation Complete product
Component name XA2A
Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22.5 mm

Complementary 31

Sale per indivisible quantity 1
Protective treatment TC
Operating position Any position
Fixing center >= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing mode Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Shape of signaling unit head Round
Operator profile Red flush
Contacts type and composition 1 NO
Contact operation Slow-break
Mechanical durability 1500000 cycles
Connections - terminals Screw clamp terminals, clamping capacity: 2 x 1.5 mm², Screw clamp terminals, clamping capacity: 1 x 2.5 mm², Screw clamp terminals, clamping capacity: 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Tightening torque 0.8…1.2 N.m
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 600 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600
Electrical durability 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4, 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
Signalling type Steady
Light source LED
Bulb base BA 9s
[Us] rated supply voltage 220 V AC 50/60 Hz
Supply voltage limits 176…242 V AC
Current consumption < 20 mA
Service life 20000 h
Width 30 mm
Height 43 mm
Depth 73.5 mm
Net weight 0.042 kg
Cap/operator or lens colour Red
Type of operator Spring return

Environment 9

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Overvoltage category Class I conforming to IEC 536
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK03 conforming to IEC 60529
Standards GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1
Product certifications CCC, CE, UKCA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 78 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2AW34M1
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.35 cm
Package 1 Width 3 cm
Package 1 Length 4.3 cm
Package 1 Weight 42 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 3 cm
Package 2 Width 12 cm
Package 2 Length 60 cm
Package 2 Weight 215 g
Unit Type of Package 3 S02
Number of Units in Package 3 70
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 3.46 kg
Shipping weight 0.042 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
