Schneider Electric XA2AW34B2 Easy Harmony XA2 Illuminated Red Flush 22 mm 24 V AC/DC 1NC Push Button

% $-5.75
Schneider Electric XA2AW34B2 Easy Harmony XA2 Illuminated Push Button Red 22mm 24V 1NC
Schneider Electric XA2AW34B2 Easy Harmony XA2 Illuminated Push Button Red 22mm 24V 1NC

Schneider Electric XA2AW34B2 Easy Harmony XA2 Illuminated Red Flush 22 mm 24 V AC/DC 1NC Push Button

Brand: Schneider Electric
Reference No: XA2AW34B2
Catalog No: XA2AW34B2
Series: Harmony XA2
Tariff Code (HS): 853650
Rated Voltage: 24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

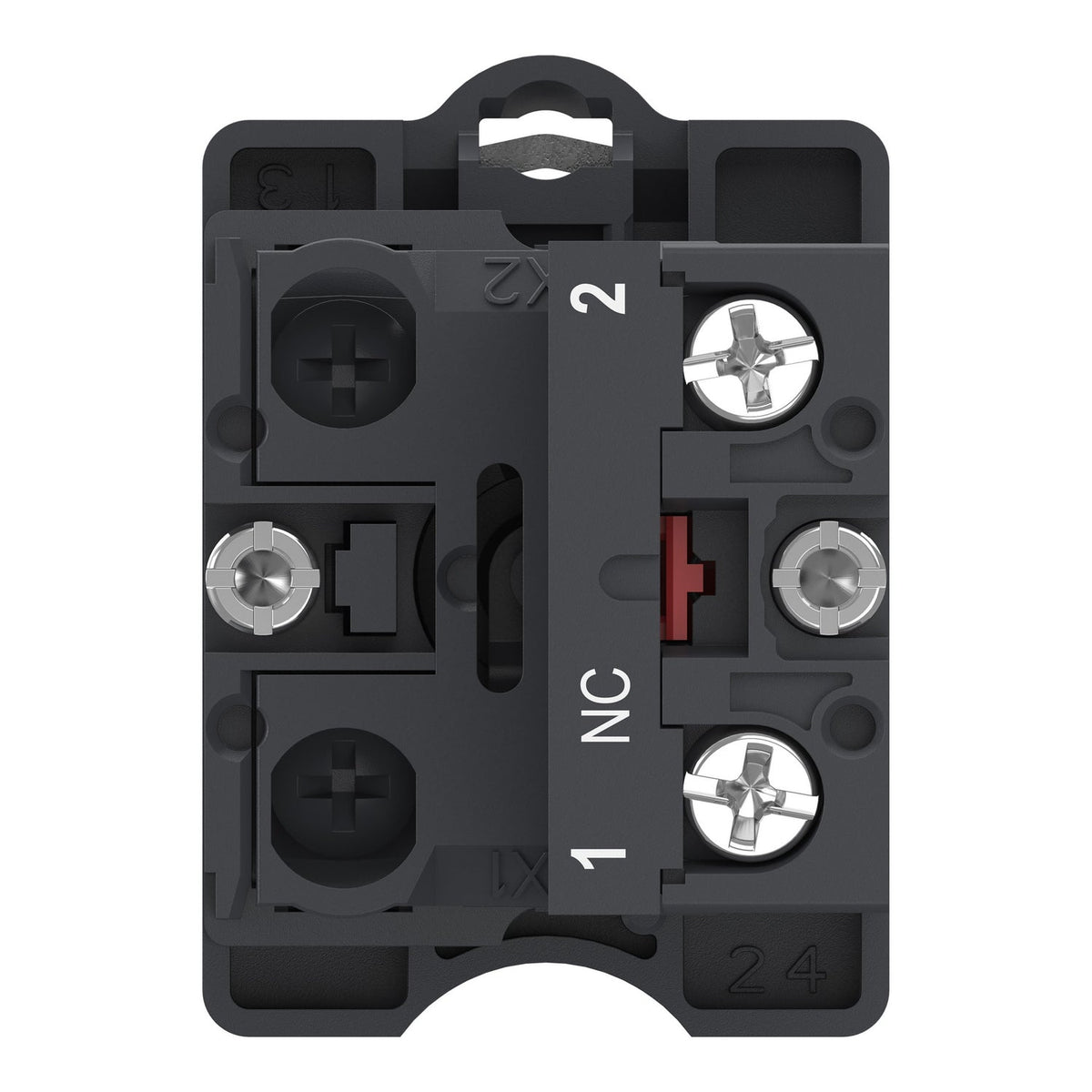

The Schneider Electric XA2AW34B2 is an Easy Harmony XA2 complete illuminated push button with a red flush head and an integral LED supplied at 24 V AC/DC. It returns by spring after release, switches 1 NC contact through slow-break operation, and mounts in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Reference XA2AW34B2
Brand Schneider Electric
Range Easy Harmony XA2
Product Type Complete illuminated push-button
Bezel / Fixing Collar Material Plastic
Mounting Diameter 22.5 mm
Operator Profile Red flush
Type of Operator Spring return
Contacts Type and Composition 1 NC
Contact Operation Slow-break
Light Source LED
Bulb Base BA 9s
Signalling Type Steady
[Us] Rated Supply Voltage 24 V AC/DC, 50/60 Hz
Current Consumption <20 mA
Service Life 20000 h
Connections - Terminals Screw clamp, <=2 x 1.5 mm2; Faston 6.3 mm
[Ith] Conventional Free Air Thermal Current 10 A
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
Dimensions (W x H x D) 30 x 43 x 73.5 mm
Net Weight 0.051 kg
IP Degree of Protection IP65
IK Degree of Protection IK03

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The 1 NC contact matches red's IEC 60204-1 convention for a stop command, so this variant can break a circuit on press while still lighting up to confirm the button's live status at 24 V AC/DC. It weighs slightly more than the 1 NO XA2AW34B1 because of the extra contact block, but shares the same flush red head, LED, and 24 V supply. Pick XA2AW34B1 instead where only a make (1 NO) contact is needed on this colour and voltage.

Technical Details

Short Description
Easy Harmony XA2 illuminated push button, red, 24V AC/DC, spring return, 1NC, IP65.
Rated Voltage (VAC)
24 V AC/DC
Mounting Type
22.5 mm panel cutout
Protection Type
IP65, IK03
Catalog No
XA2AW34B2
Delivery Date (Days)
30 days
Model Number
Easy Harmony XA2
Tariff Code
853650
