- Part number
- XA2AT42
- Model no
- XA2
- CE
- UKCA
- CCC
Description
About the XA2
About the XA2

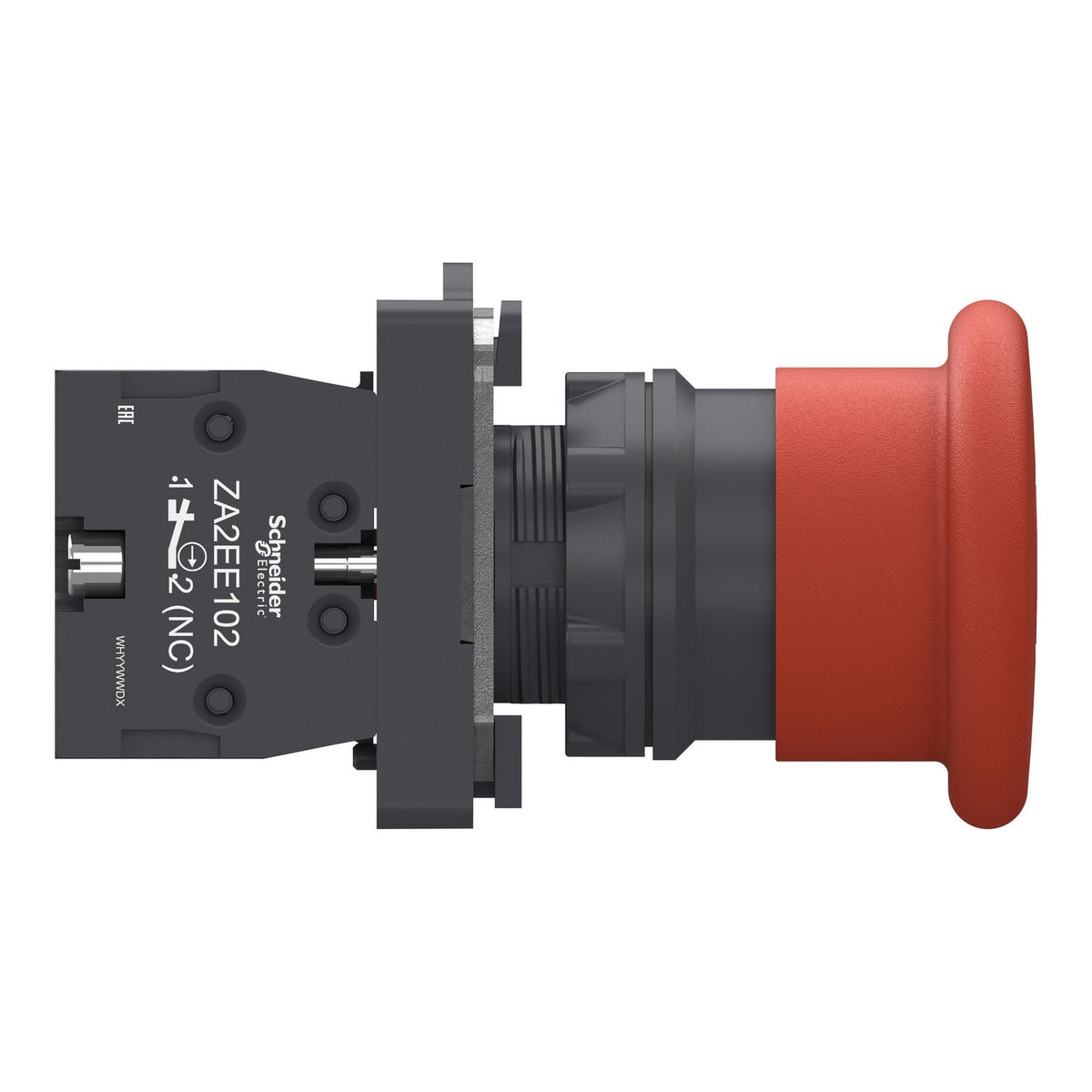

The Schneider Electric XA2AT42 is an Easy Harmony XA2 complete emergency switching-off push button with a red, 40 mm plastic mushroom head and a push-pull reset. It switches 1 NC contact with positive opening and slow-break operation, mounting in a 22.5 mm panel cutout sealed to IP65.
Certifications & Standards
- CCC
- CE
- UKCA
- GB 14048.1
- IEC 60947-1
- IEC 60947-5-1
- GB 14048.5
Selection Notes
Positive opening on the 1 NC contact guarantees the circuit breaks mechanically even if the contact welds, the basis for using this as a genuine emergency-stop function rather than general switching. Push-pull reset only requires an axial pull to release the mushroom, which is faster to operate than the turn-to-release action but gives no lockable key-release control over who resets it. Choose the XA2AS542 turn-to-release variant on the same 40 mm head where a more deliberate reset step is preferred.
Specification
Full specification
Main 8
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete emergency switching off push-button |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
Complementary 25
| Operating position | Any position |
|---|---|
| Device mounting | Fixing hole - diameter: 22.5 mm |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Shape of signaling unit head | Round |
| Reset | Push-pull |
| Operator profile | Red mushroom Ø 40 mm |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm², Screw clamp terminal, <= 1 x 2.5 mm², Screw clamp terminal, >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V, 5 mA conforming to IEC 60947-5-4 |
| Height | 43 mm |
| Width | 30 mm |
| Depth | 74.0 mm |
| Net weight | 0.056 kg |
| Type of operator | Push-pull |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60068-2-27 |
| IK degree of protection | IK07 |
| Standards | GB 14048.1, IEC 60947-1, IEC 60947-5-1, GB 14048.5 |
| Product certifications | CCC, CE, UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 73 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2AT42 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.400 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 4.300 cm |
| Package 1 Weight | 56.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 12.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 285.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 70 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.440 kg |
| Shipping weight | 0.056 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
