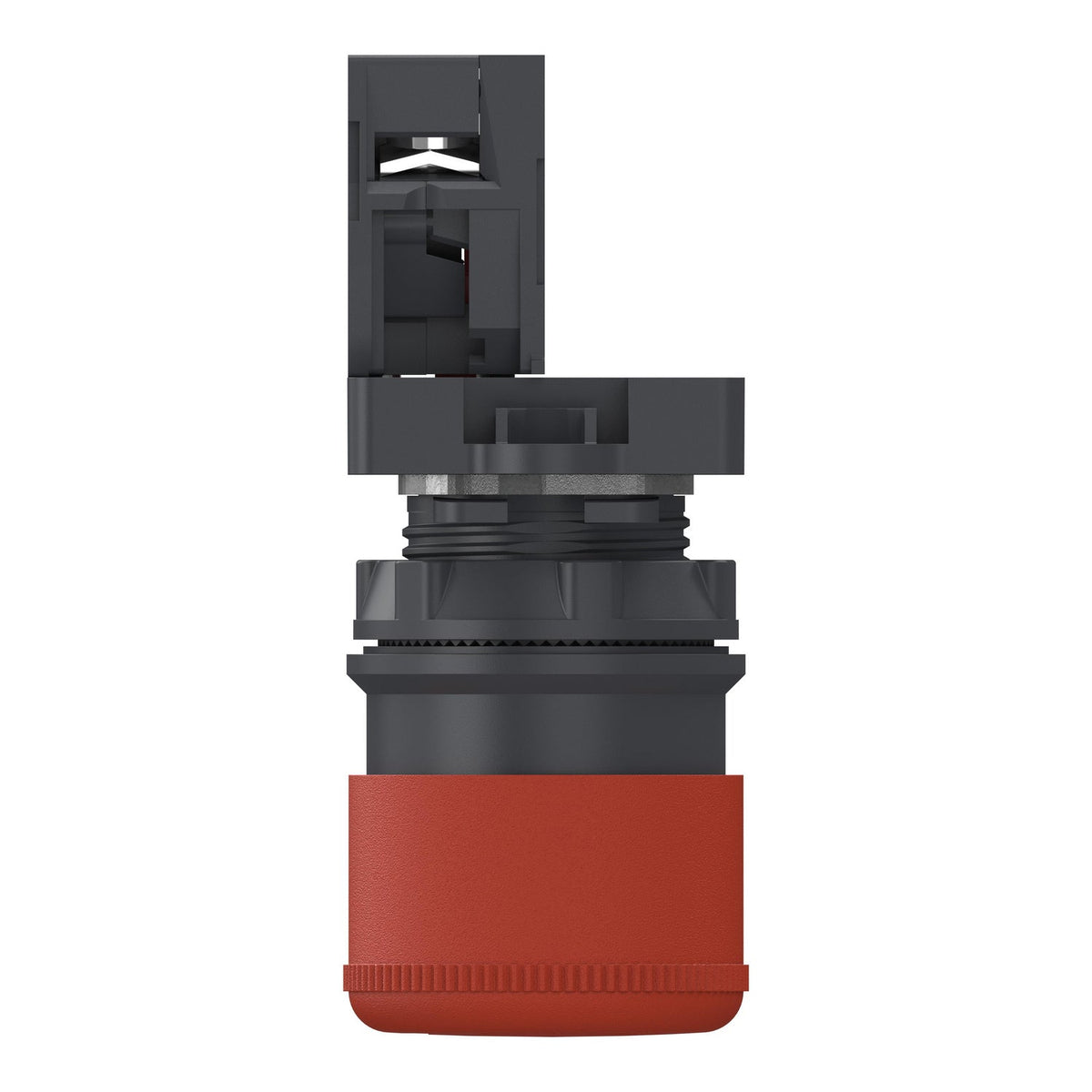

Schneider Electric XA2AS442 Easy Harmony XA2 Red Mushroom 30 mm Turn to Release 1NC Emergency Stop Push Button

The Schneider Electric XA2AS442 is an Easy Harmony XA2 complete emergency switching-off push button with a red, 30 mm plastic mushroom head and a turn-to-release reset. It switches 1 NC contact with positive opening and slow-break operation, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Certifications & Standards

• CCC
• CE
• UKCA
• GB 14048.1
• IEC 60947-1
• IEC 60947-5-1
• GB 14048.5

Selection Notes

Positive opening on the 1 NC contact guarantees the circuit breaks mechanically even if the contact welds, the basis for using this as a genuine emergency-stop function rather than general switching. Turn-to-release reset requires a deliberate twist before the mushroom can pop back out, reducing accidental resets compared with a push-pull mechanism. The compact 30 mm mushroom diameter suits tighter panel layouts; choose the XA2AS542 40 mm variant where a larger, easier-to-hit head is preferred, or XA2AT42 for push-pull reset instead of turn-to-release.
