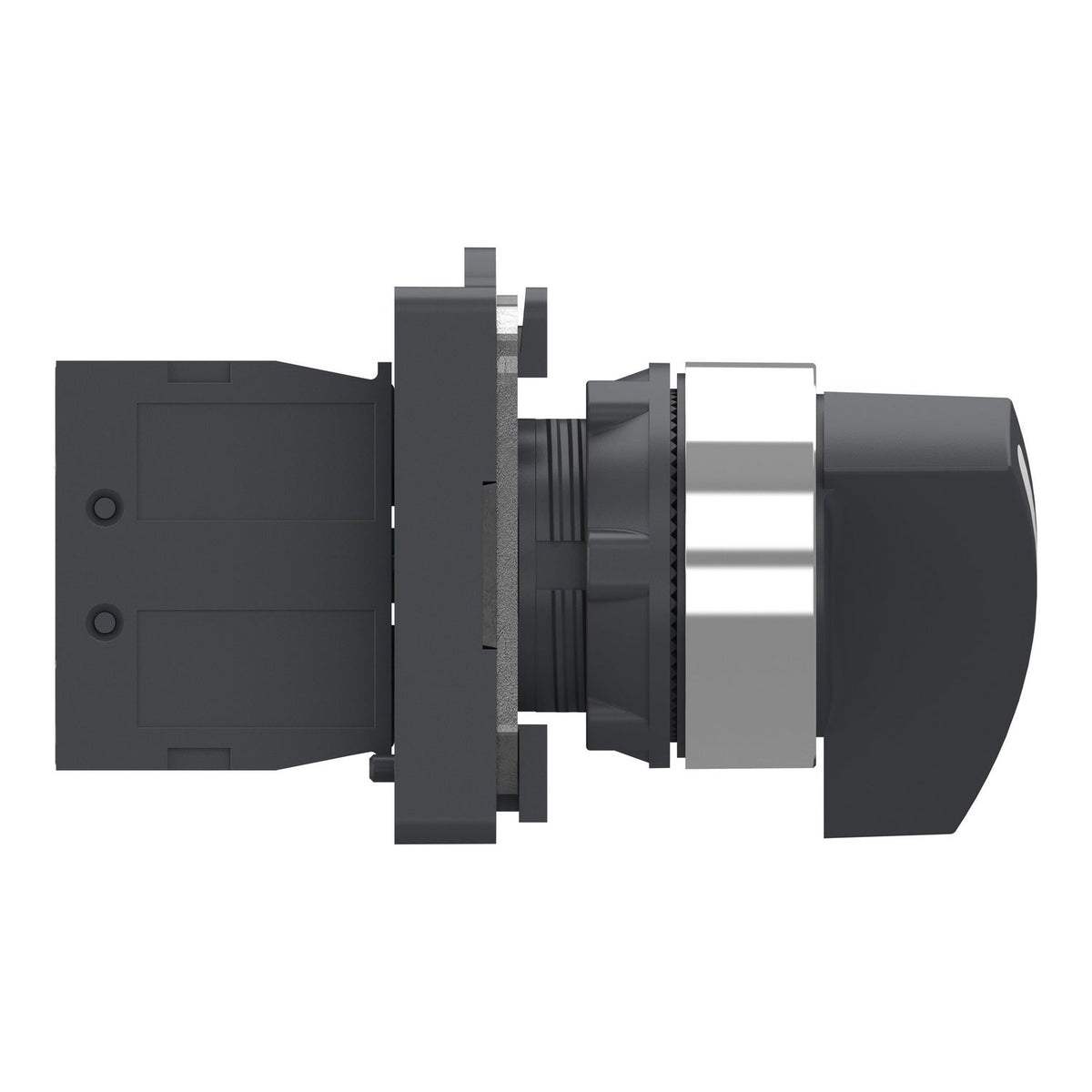

Schneider Electric XA2AJ21 Easy Harmony XA2 Plastic Long Handle Black 22 mm 2-Position 1NO Selector Switch

% $-4.85
Schneider Electric XA2AJ21 Easy Harmony XA2 Selector Switch Long Handle Black 22mm 1NO
Schneider Electric XA2AJ21 Easy Harmony XA2 Selector Switch Long Handle Black 22mm 1NO

Schneider Electric XA2AJ21 Easy Harmony XA2 Plastic Long Handle Black 22 mm 2-Position 1NO Selector Switch

Brand: Schneider Electric
Reference No: XA2AJ21
Catalog No: XA2AJ21
Series: Harmony XA2
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.85

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XA2AJ21 is an Easy Harmony XA2 complete selector switch with a black long handle and 2 operating positions at 90 degrees apart. It switches 1 NO contact through slow-break operation and holds its position with a stay-put mechanism, mounting in a 22.5 mm panel cutout sealed to IP65.

Technical Specifications

Reference XA2AJ21
Brand Schneider Electric
Range Easy Harmony XA2
Product Type Complete selector switch
Bezel / Fixing Collar Material Plastic
Mounting Diameter 22.5 mm
Operator Profile Black long handle (white)
Operator Position 2 positions, 90 degrees
Type of Operator Stay put
Contacts Type and Composition 1 NO
Contact Operation Slow-break
Connections - Terminals Screw clamp, <=2 x 1.5 mm2; Faston 6.3 mm
[Ith] Conventional Free Air Thermal Current 10 A
[Ui] Rated Insulation Voltage 600 V
[Uimp] Rated Impulse Withstand Voltage 6 kV
[Ie] Rated Operational Current 3 A at 240 V AC-15; 0.27 A at 250 V DC-13
Dimensions (W x H x D) 30 x 43 x 70 mm
Net Weight 0.042 kg
IP Degree of Protection IP65
IK Degree of Protection IK06
Ambient Temperature (Operation) -25...55 degrees C

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

Stay-put operation holds the 1 NO contact in whichever of the 2 positions the handle is last turned to, so this variant selects between two latched modes (for example local/remote or manual/auto) rather than issuing a momentary command. The single NO contact suits a simple two-state select function; choose the XA2AJ25 variant in the same long-handle body when a second, opposite-sense NC contact is also needed on the same switch.

Technical Details

Short Description
Easy Harmony XA2 selector switch, long handle, 22mm, 2-position, stay put, 1NO, IP65.
Mounting Type
22.5 mm panel cutout
Protection Type
IP65, IK06
Catalog No
XA2AJ21
Delivery Date (Days)
30 days
Model Number
Easy Harmony XA2
Tariff Code
853650
