Part number
XA2AH042
Model no
XA2
$4.62 On request Dispatch — · From TürkiyeGet a Quote
Harmony XA2

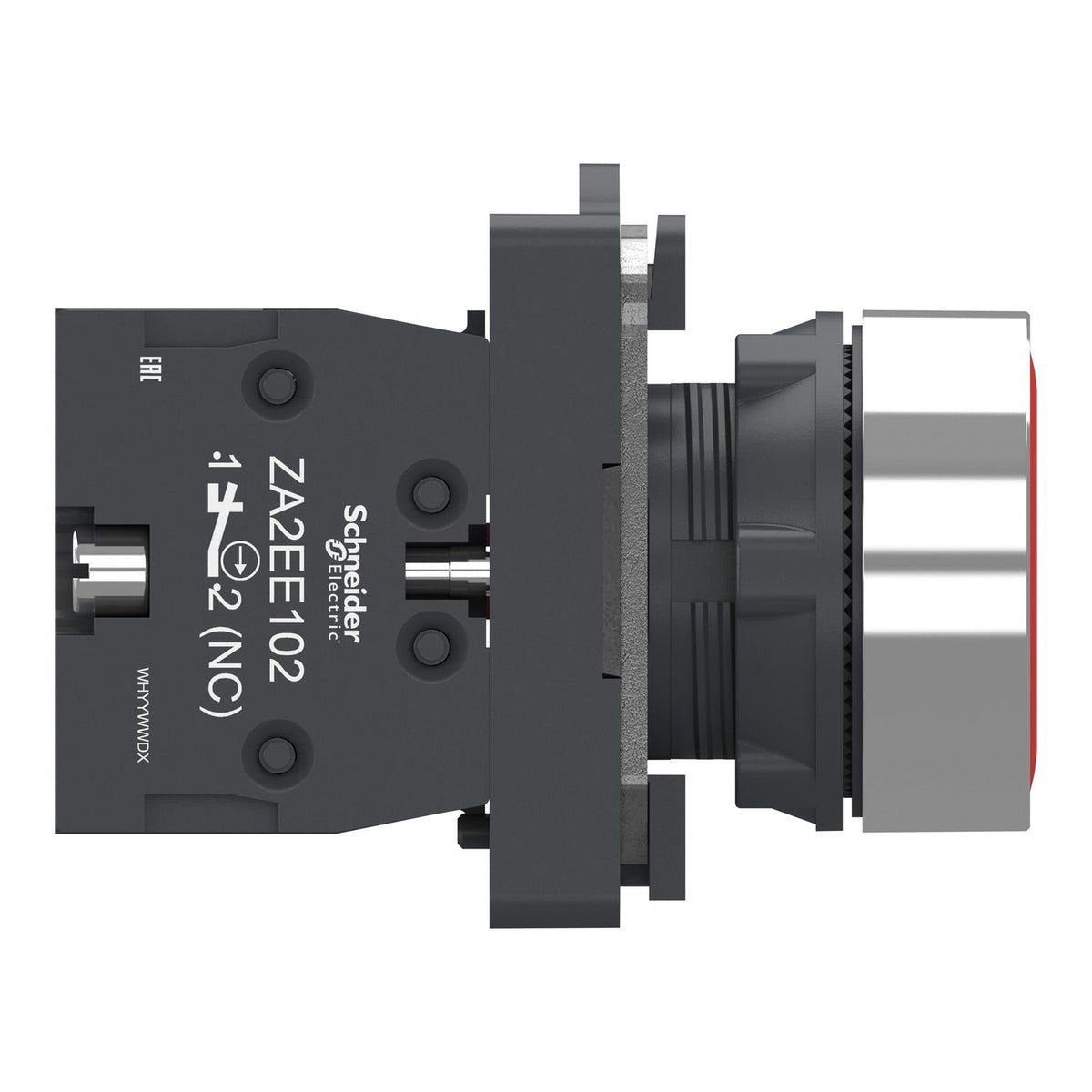

Schneider Electric XA2AH042 Easy Harmony XA2 Push Button Plastic Flush Red 22 mm Push-Push 1NC Push Button

Easy Harmony XA2 push button, 22mm, red flush, push-push self-lock, 1NC, IP65.

Range of product
Harmony XA2
Device short name
XA2
Product or component type
Complete push-button
Device presentation
Complete product
Component name
XA2A
Bezel material
Plastic
Description

About the XA2

The Schneider Electric XA2AH042 is an Easy Harmony XA2 complete push button with a red, unmarked, flush head and a push-push (self-lock) operating mechanism. It switches 1 NC contact through slow-break operation and mounts in a 22.5 mm panel cutout, sealed to IP65.

Certifications & Standards

  • CCC
  • CE
  • UKCA
  • GB 14048.1
  • IEC 60947-1
  • GB 14048.5
  • IEC 60947-5-1

Selection Notes

The 1 NC contact combined with push-push (self-lock) latching lets this button break a circuit on the first press and remake it on the second, which suits a maintained stop or interlock function rather than a momentary one. Red follows the IEC 60204-1 colour convention for stop commands, matching the NC contact logic. Choose the green XA2AH031 (1NO) variant from the same body style for a start or run function instead.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 7

Range of product Harmony XA2
Device short name XA2
Product or component type Complete push-button
Device presentation Complete product
Component name XA2A
Bezel material Plastic
Fixing collar material Plastic

Complementary 26

Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Protective treatment TC
Operating position Any position
Fixing center >= 30 x 40 mm (panel) - thickness: 1…5 mm
Fixing mode Fixing nut: 2…2.4 N.m
Shape of signaling unit head Round
Operator profile Red flush, unmarked
Contacts type and composition 1 NC
Contact operation Slow-break
Mechanical durability 500000 cycles
Connections - terminals Screw clamp terminal, <= 2 x 1.5 mm², Screw clamp terminal, <= 1 x 2.5 mm², Screw clamp terminal, >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Tightening torque 0.8…1.2 N.m
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Electrical reliability Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Width 30 mm
Height 43 mm
Depth 55 mm
Net weight 0.035 kg
Cap/operator or lens colour Red
Type of operator Push-push

Environment 9

Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Overvoltage category Class I conforming to IEC 536
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK03 conforming to IEC 60529
Standards GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1
Product certifications CCC, CE, UKCA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Show all 72 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XA2AH042
Type designation XA2
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 3 cm
Package 1 Length 4.3 cm
Package 1 Weight 35 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 3 cm
Package 2 Width 12 cm
Package 2 Length 60 cm
Package 2 Weight 180 g
Unit Type of Package 3 S02
Number of Units in Package 3 100
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 4.05 kg
Shipping weight 0.035 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
