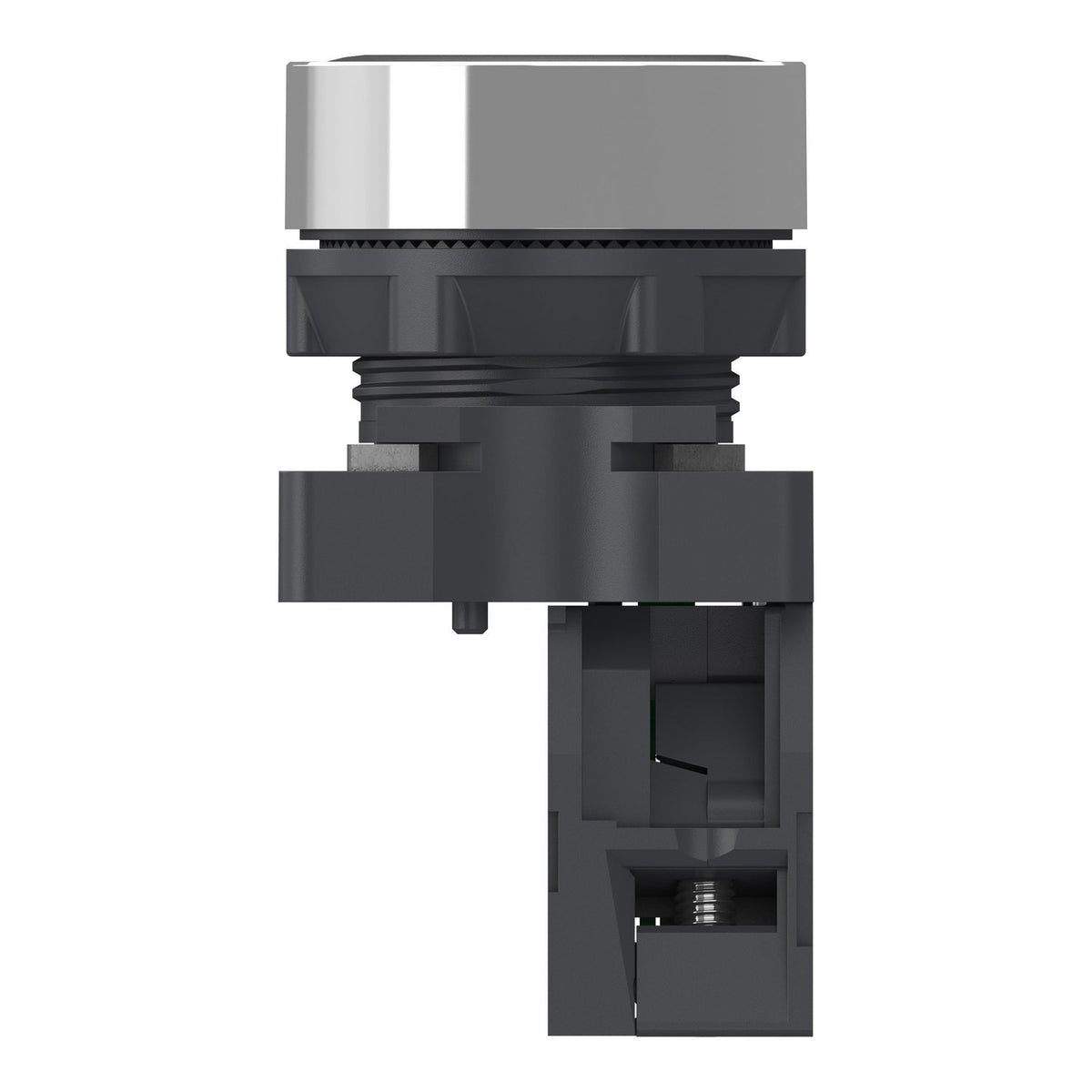

Schneider Electric XA2AH021 Easy Harmony XA2 Push Button Plastic Flush Black 22 mm Push-Push 1NO Push Button

The Schneider Electric XA2AH021 is an Easy Harmony XA2 complete push button with a black, unmarked, flush head and a push-push (self-lock) operating mechanism. It switches 1 NO contact through slow-break operation and mounts in a 22.5 mm panel cutout, sealed to IP65.

Technical Specifications

Certifications & Standards

• CCC
• CE
• UKCA
• GB 14048.1
• IEC 60947-1
• GB 14048.5
• IEC 60947-5-1

Selection Notes

Push-push (self-lock) operation means one press latches the 1 NO contact closed and a second press releases it, so this variant holds a maintained state without a key or separate twist action - suited to on/off selection rather than momentary commands. The unmarked black flush head keeps it neutral for general-purpose control where no specific IEC 60204-1 colour meaning (start, stop, reset) applies. For a momentary (spring-return) action instead, choose the equivalent XA2EA... monolithic or illuminated XA2AW... variants in the same range.
