- Part number
- XA2AG73
- Model no
- XA2
Description
About the XA2
About the XA2

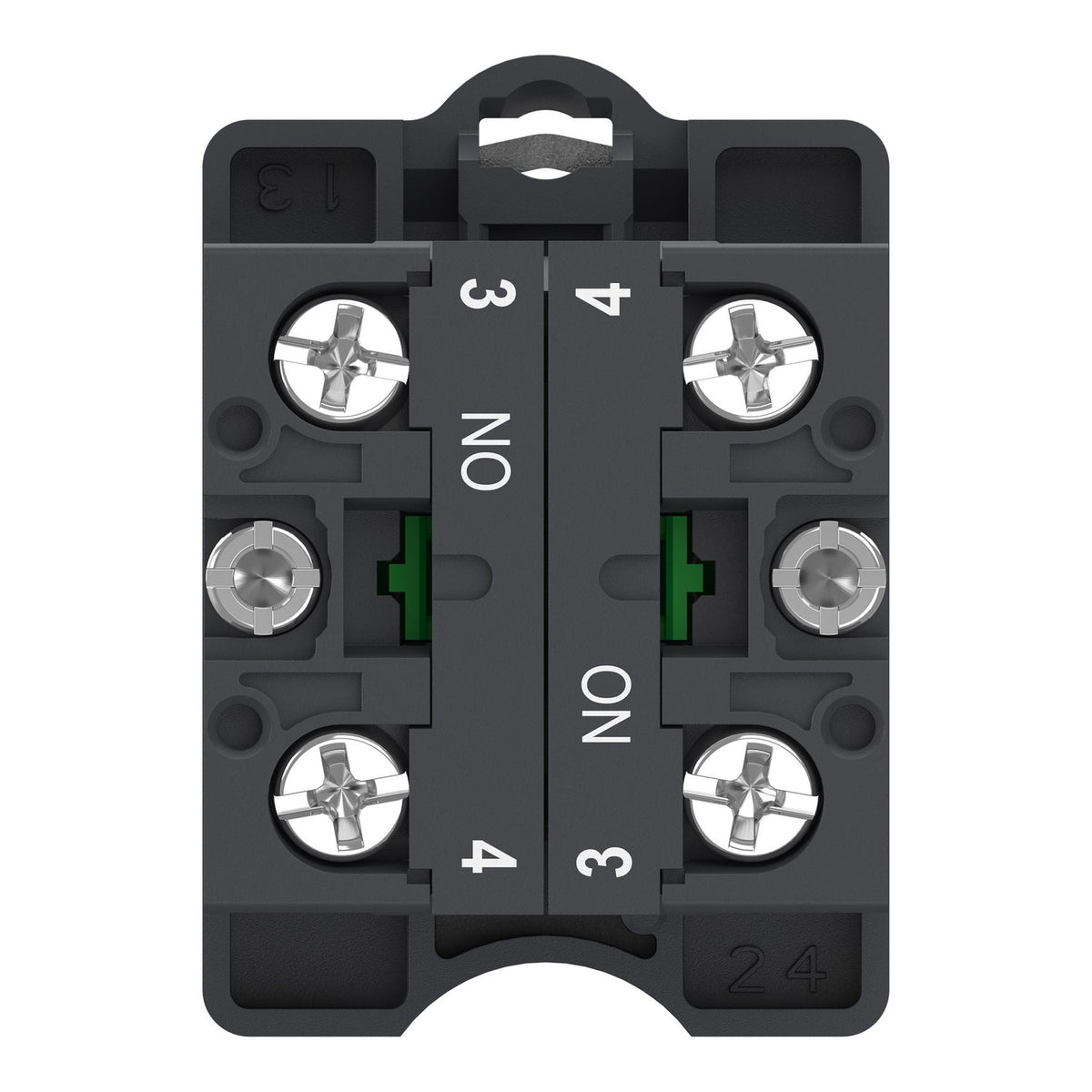

The Schneider Electric XA2AG73 is an Easy Harmony XA2 complete key selector switch with a black key head and 3 operating positions spaced 45 degrees apart. It returns from both side positions back to the centre, allows key withdrawal only in the centre position, and switches 2 NO contacts in a 22.5 mm panel cutout.
Certifications & Standards
- CCC
- CE
- UKCA
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Selection Notes
With 3 positions returning from both sides to centre, this key switch only holds its 2 NO contacts made while the key is turned away from centre, so it suits momentary two-direction commands (for example jog-left / jog-right) rather than a latched state. Key withdrawal only at centre keeps the key locked in while either side position is selected, preventing removal mid-command. Use the 2-position XA2AG43 or XA2AG63 variants instead when the application only needs a single switched direction.
Specification
Full specification
Main 8
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
Complementary 28
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Return | Both sides to centre |
| Shape of signaling unit head | Round |
| Operator profile | Black key switch (white) |
| Operator position information | 3 positions 45° |
| Key number | 455 |
| Key withdrawal position | Center |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm², Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm², Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30.0 mm |
| Height | 43.0 mm |
| Depth | 88.0 mm |
| Net weight | 0.075 kg |
| Type of operator | Spring return |
| Head type | Standard |
| Cap/operator or lens colour | Black |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1 |
| Product certifications | CCC, CE, UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 76 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2AG73 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.8 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 4.3 cm |
| Package 1 Weight | 75 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3 cm |
| Package 2 Width | 12 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 380 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 8.05 kg |
| Shipping weight | 0.075 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XA2AG73
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- UKCA
- CCC
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Quick answers
Questions about the XA2
What is the HS code of XA2 for customs?
The tariff (HS) code on file for XA2 is 853650.
Where does XA2 ship from, and how fast?
XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Schneider Electric Harmony XA2
- Brand
- Schneider Electric
- Series
- Harmony XA2
