- Part number
- XA2AG63
- Model no
- XA2
Description
About the XA2
About the XA2

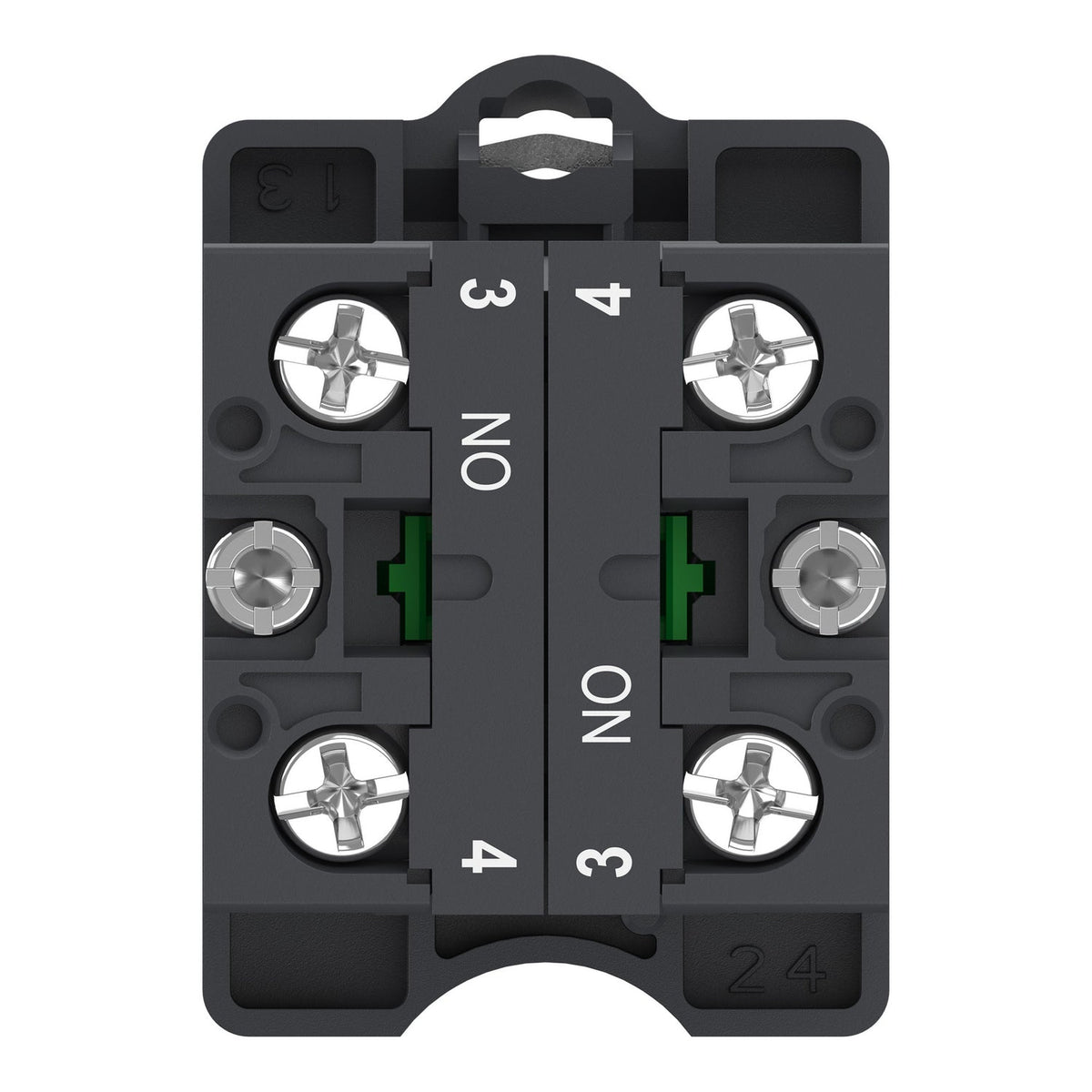

The Schneider Electric XA2AG63 is an Easy Harmony XA2 complete key selector switch with a black key head, 2 operating positions, and a spring-return mechanism that drives the switch from right back to left. It uses key number 455, only allows key withdrawal in the left position, and switches 2 NO contacts in a 22.5 mm panel cutout.
Certifications & Standards
- CCC
- CE
- UKCA
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Selection Notes
Spring return from right back to left means the operator cannot leave the key switch latched in the right-hand position - the switch always drops back once released, so the 2 NO contacts only stay made while someone holds the key turned. Key withdrawal is fixed to the left position only, which forces the key out while the switch is in its de-energized rest state, useful where the key should only be removable with the circuit off. Choose the stay-put XA2AG43 variant instead when the application needs the contacts to latch without holding the key turned.
Specification
Full specification
Main 8
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
Complementary 28
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Return | Right to left |
| Shape of signaling unit head | Round |
| Operator profile | Black key switch (white) |
| Operator position information | 2 positions 90° |
| Key number | 455 |
| Key withdrawal position | Left |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm², Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm², Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30.0 mm |
| Height | 43.0 mm |
| Depth | 88.0 mm |
| Net weight | 0.075 kg |
| Type of operator | Spring return |
| Head type | Standard |
| Cap/operator or lens colour | Black |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1 |
| Product certifications | CCC, CE, UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 76 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2AG63 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.8 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 4.3 cm |
| Package 1 Weight | 75 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3 cm |
| Package 2 Width | 12 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 380 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 8.05 kg |
| Shipping weight | 0.075 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XA2AG63
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- UKCA
- CCC
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Quick answers
Questions about the XA2
What is the HS code of XA2 for customs?
The tariff (HS) code on file for XA2 is 853650.
Where does XA2 ship from, and how fast?
XA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
