- Part number
- XA2AG43
- Model no
- XA2
Description
About the XA2
About the XA2

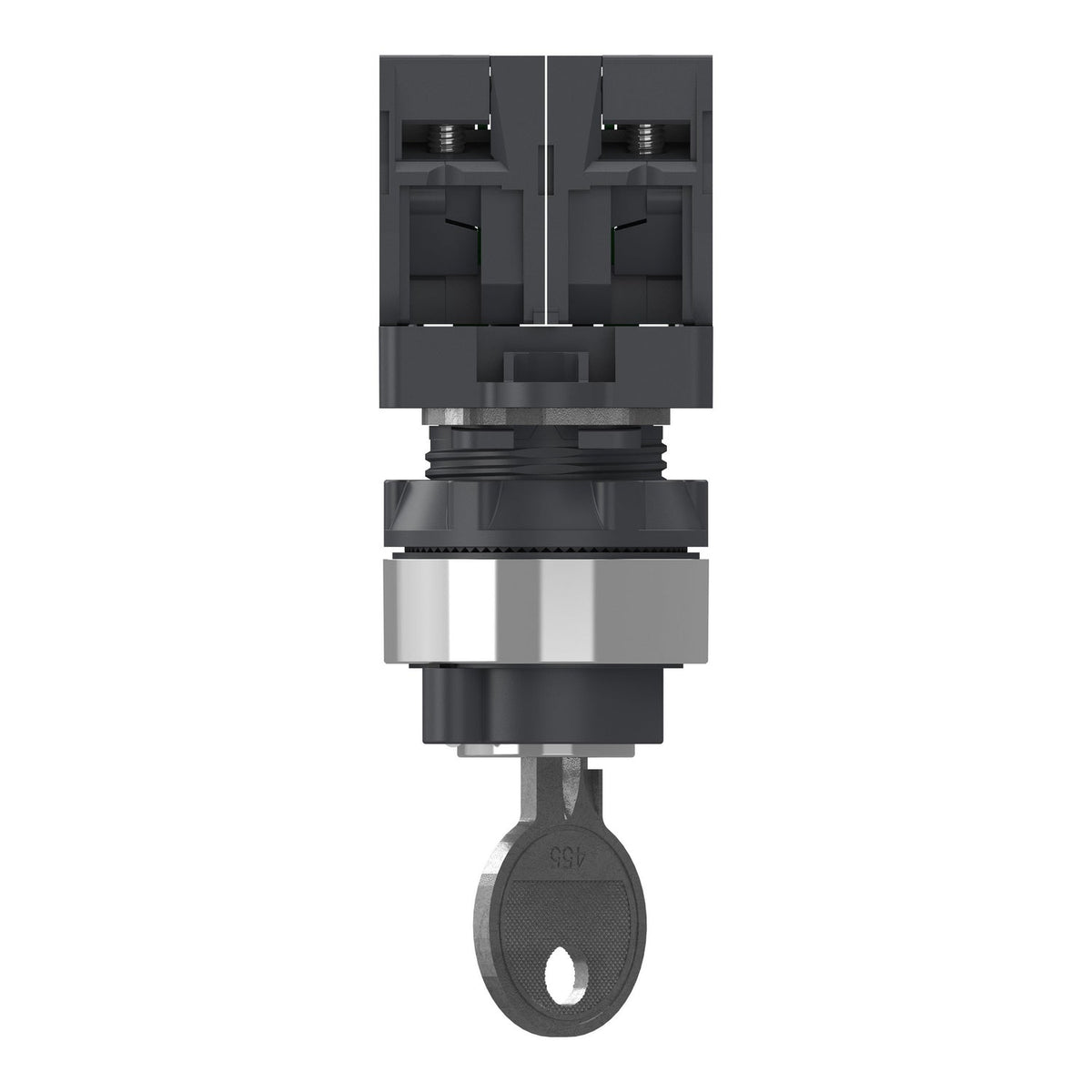

The Schneider Electric XA2AG43 is an Easy Harmony XA2 complete key selector switch with a black key head and 2 operating positions at 90 degrees apart. It uses key number 455, lets the key be withdrawn in either the left or right position, and switches 2 NO contacts through a stay-put (maintained) mechanism in a 22.5 mm panel cutout.
Certifications & Standards
- CCC
- CE
- UKCA
- GB 14048.1
- IEC 60947-1
- GB 14048.5
- IEC 60947-5-1
Selection Notes
The both-side key withdrawal (left and right) lets the key be removed in either of the two positions, so this variant suits applications where an operator needs to lock out the switch from whichever state it was last left in, rather than only from one fixed position. Stay-put operation means the 2 NO contacts hold their state once the key is turned, so downstream circuits stay latched without needing the key to remain inserted. The 2 NO contact block with slow-break operation and IP54 sealing suits general indoor panel-mounting; pick a 1NO or 1NO+1NC variant from the same XA2A key-switch body if the application needs a different contact count.
Specification
Full specification
Main 8
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
Complementary 27
| Sale per indivisible quantity | 1 |
|---|---|
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Operator profile | Black key switch (white) |
| Operator position information | 2 positions 90° |
| Key number | 455 |
| Key withdrawal position | Left and right |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| Connections - terminals | Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm², Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm², Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30.0 mm |
| Height | 43.0 mm |
| Depth | 88.0 mm |
| Net weight | 0.075 kg |
| Type of operator | Stay put |
| Head type | Standard |
| Cap/operator or lens colour | Black |
Environment 10
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1 |
| Product certifications | CCC, CE, UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Show all 75 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XA2AG43 |
|---|---|
| Type designation | XA2 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 4.300 cm |
| Package 1 Weight | 75.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 12.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 380.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.050 kg |
| Shipping weight | 0.075 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
